FiltersPCJ-SL
Application
Designed to insulate and protect controls and componets in both indoor and outdoor conditions
Ideal for industrial pump controls, waste water, irrigation control along with solar/wind and chemical plants
Standards
UL 508 Type 1, 2, 3, 4, 4X, 12 and 13
CSA Type 1, 2, 3, 4, 4X, 12 and 13
Complies with
NEMA Type 1, 2, 3, 4, 4X, 12 and 13
IEC 60529, IP66
Flamability V-O per UL 94
UV rating (f1) per UL746C - UV stabilized for outdoor use
Complient with RoHS directive
Construction
Injection moulded polycarbonate thermoplastic enclosure with matching cover is easily punched, cut, or drilled
Enhanced UV inhibitors protect against outdoor weathering
Threaded brass inserts are provided for optional inner panel or terminal kit
mounting. Mounting hardware is included
Stainless steel 316 screw fasteners

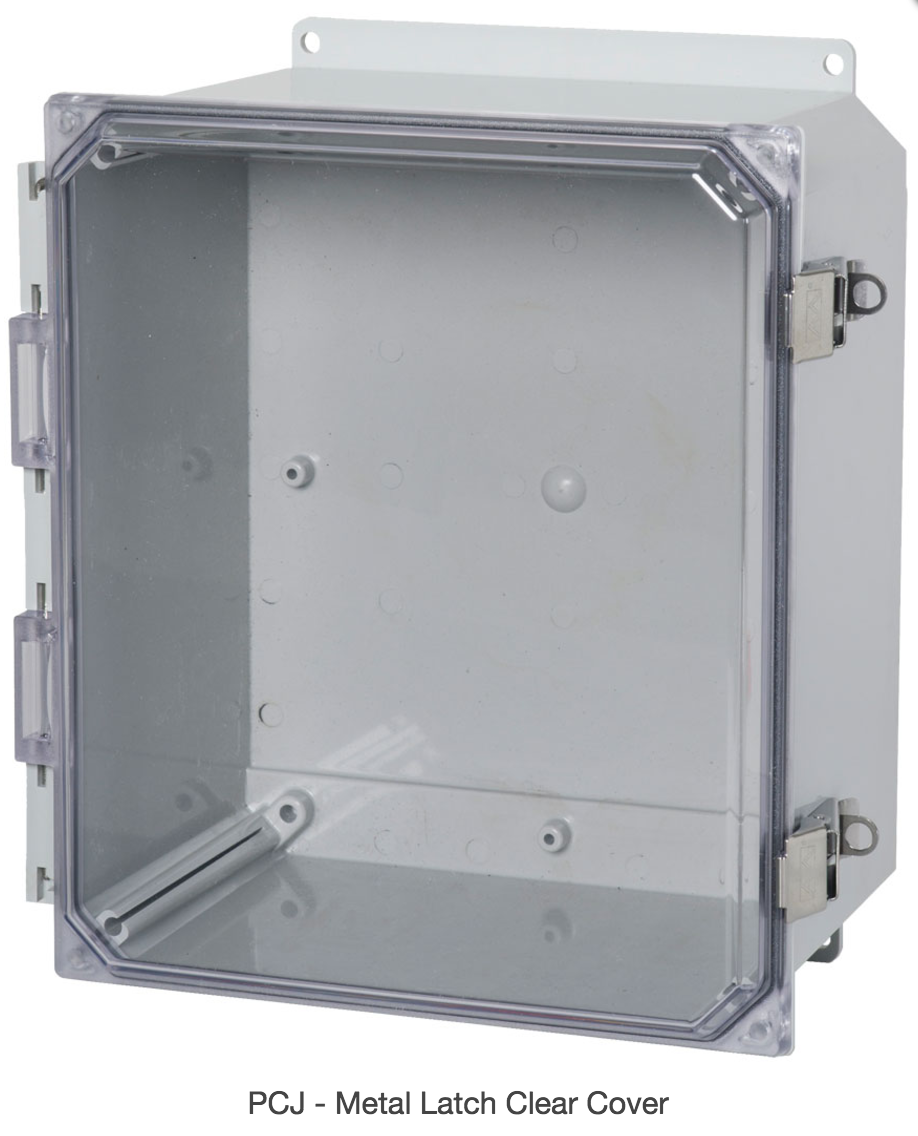

Enclosure available with clear Polycarbonate cover
Captive oil resistant gasket provides a positive seal
Available with Polycarbonate flange or foot mount brackets for multidirectional mounting
Operating temperatures between 130°C and - 35 °C (266°F to - 31 °F)
Impact index of 16 J (12 ft/lb)
For corrosion resistance information, please refer to table in the Technical Information section
Finish
Polycarbonate material has a Light gray finish
Optional inner panels are available in white powder coated finished steel or unfinished aluminum, or Fiberglass
Displaying 1 - 10 of 50
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
PCJ1082CCL
JunctionBox-NonMetal
 RoHS Compliant
Hammond Polycarb 10X8X2 Latch Clr w/Feet Part Number PCJ1082CCL [UPC 62398013848 ] |
Hammond Mfg.
Series PCJ-SL |
Factory Lead Time: 10
|
1 - 1$83.20 2 - 3$81.90 4 - 9$80.50 ... |
|
|
PCJ1082CCLF
JunctionBox-NonMetal
RoHS Compliant
Hammond Polycarb 10X8X2 Latch Clr w/Flange Part Number PCJ1082CCLF [UPC 62398013849 ] |
Hammond Mfg.
Series PCJ-SL |
Factory Lead Time: 10
|
1 - 1$87.40 2 - 3$85.90 4 - 9$84.50 ... |
|
|
PCJ1082LF
JunctionBox-NonMetal
RoHS Compliant
Hammond Polycarb 10X8X2 Latch w/Flange Part Number PCJ1082LF [UPC 62398013835 ] |
Hammond Mfg.
Series PCJ-SL |
Factory Lead Time: 10
|
1 - 1$79.50 2 - 3$78.20 4 - 9$76.90 ... |
|
|
PCJ12104CCL
JunctionBox-NonMetal
RoHS Compliant
Hammond Polycarb 12X10X4 Latch Clr w/Feet Part Number PCJ12104CCL [UPC 62398013850 ] |
Hammond Mfg.
Series PCJ-SL |
Factory Lead Time: 10
|
1 - 1$97.00 2 - 2$95.40 3 - 9$93.80 ... |
|
|
PCJ12126CCL
Enclosures
RoHS Compliant
Hammond Polycarb 12X12X6 Latch Clr w/Feet Part Number PCJ12126CCL [UPC 62398043470 ] |
Hammond Mfg.
Series PCJ-SL |
Factory Lead Time: 10
|
1 - 1$119.30 2 - 2$117.40 3 - 4$115.50 ... |
|
|
PCJ14126CCL
JunctionBox-NonMetal
RoHS Compliant
Hammond (13.94 x 12.16 x 5.98) Type 4X Polycarbonate Junction Box With Metal Latch Cover Clear - Metal Latch Cover an… |
Hammond Mfg.
Series PCJ-SL |
Total Stock: 8
Drop Ship Quantity: 8
Factory Lead Time: 10
|
1 - 1$127.60 2 - 2$125.50 3 - 4$123.50 ... |
|
|
PCJ14126LF
JunctionBox-NonMetal
RoHS Compliant
Hammond (13.94 x 12.16 x 5.98) Type 4X Polycarbonate Junction Box With Metal Latch Cover Solid - Metal Latch Cover an… |
Hammond Mfg.
Series PCJ-SL |
Total Stock: 100
Drop Ship Quantity: 100
Factory Lead Time: 10
|
1 - 1$123.20 2 - 2$121.20 3 - 4$119.20 ... |
|
|
PCJ16148CCL
JunctionBox-NonMetal
RoHS Compliant
Hammond (15.98 x 13.98 x 7.81) Type 4X Polycarbonate Junction Box With Metal Latch Cover Clear - Metal Latch Cover an… |
Hammond Mfg.
Series PCJ-SL |
Factory Lead Time: 10
|
1 - 1$165.10 2 - 3$162.40 4 - 9$159.90 ... |
|
|
PCJ16148LF
JunctionBox-NonMetal
RoHS Compliant
Hammond (15.98 x 13.98 x 7.81) Type 4X Polycarbonate Junction Box With Metal Latch Cover Solid - Metal Latch Cover an… |
Hammond Mfg.
Series PCJ-SL |
Total Stock: 91
Drop Ship Quantity: 90
Factory Lead Time: 10
|
1 - 1$159.00 2 - 3$156.40 4 - 9$153.90 ... |
|
|
PCJ664CCLF
JunctionBox-NonMetal
RoHS Compliant
Hammond (5.93 x 6.16 x 3.98) Type 4X Polycarbonate Junction Box With Metal Latch Cover Clear - Metal Latch Cover and… |
Hammond Mfg.
Series PCJ-SL |
Total Stock: 1
Drop Ship Quantity: 1
Factory Lead Time: 10
|
1 - 1$83.30 2 - 3$81.90 4 - 9$80.60 ... |
PCJ-SL
