PCJ16148CCL

Hammond Mfg. | PCJ-SL | JunctionBox-NonMetal
yellow-timer-icon Factory Lead Time: 10
onlycheckmark RoHs Compliant
PCJ-SL

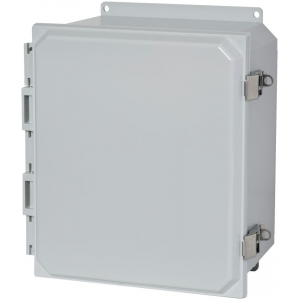

Hammond (15.98 x 13.98 x 7.81) Type 4X Polycarbonate Junction Box With Metal Latch Cover Clear - Metal Latch Cover and Feet Mounting

$165.10

Min: 1  Mult: 1

Product Attributes

Cover Latched Via

Metal Latching

Internal Panel PN

14R1513

Material

Polycarbonate

Mounting Style

Mounting Feet

Overall Depth

7.81

Finish

Light gray

IEC 60529

IP66

Overall Length

15.98

MFG-Data-Sheet

Click Here

Overall LxWxD

15.98 x 13.98 x 7.81

Overall Width

13.98

UL 508

Type 1, 2, 3, 4, 4X, 12 and 13

3D CAD URL

Click Here

Series Photo

Click Here

Overall DIMs (L x W x H) Inch

15.98 x 13.98 x 7.81

CAD File

Click Here

CAD URL

Click Here

Height

7.81

Width

13.98

Length

15.98

Optional Inner Panel

14R1513

Manufacturers Series Page

Click Here

Operating temperature

-35C to +130C

Construction

Injection moulded polycarbonate thermoplastic enclosure with matching cover is easily punched, cut, or drilled

Gasket

Captive oil resistant gasket provides a positive seal

Cover

Clear - Metal Latch

Panel Width

12.88

Pricing Note

Price change ~2.0% on 10/01/22

Panel Length

14.75

UL 508A

Type 1, 2, 3, 4, 4X, 12 and 13

CSA

1, 2, 3, 4, 4X, 12 and 13

Eccn

EAR99

Overall Dims

(16 x 14 x 8)

IEC

60529, IP66

NEMA

1, 2, 3, 4, 4X, 12 and 13

Mounting

Feet

Hammond Product Photo

Click Here

Hammond Product Group

electrical

Hammond Series

PCJ-SL

Hammond Product Type

enclosure

UV rating

(f1) per UL746C - UV stabilized for outdoor use

Lead-Time Weeks

2

Flamability

V-O per UL 94

UPC

623980154480

Series-Description

Type 4X Polycarbonate Junction Box With Metal Latch Cover

Standard Stock

No

Not available at this time.
