Filters200 Series

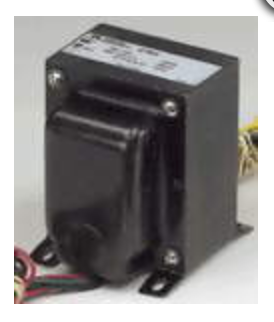

Hammond Series 200
Features
Primary 115 VAC, 60 Hz. - except as noted
For "universal" primaries and/or 50/60 Hz. operation and other output voltage combinations please see our 300 Series.
Enclosed, 4 hole, chassis mount.
Minimum 6" long leads.
Units can be run full wave bridge or full wave C.T.
Class A insulation (105 degrees C).
Hi-Pot test of 2,000V RMS.
Conservative designs - CSA certified (209651).
NOTE: A production "running change" has been made to the primary winding - effective with August 2009 production.
Choice #1 (115 VAC Input):
For those customers who need the 115V input - nothing has changed - simply use the White & Gray wires and tape the Black wire (see above schematic). Note: Gray wire is actually BROWN on only our Part Number 278CX.
Choice #2 (125 VAC Input):
For those customers who are seeing too high a secondary voltage due to higher primary line voltages (roughly 125V input) - use the White & Black wire and tape the gray wire (see schematic).
CAUTION
NEVER connect power to BOTH the GRAY & BLACK wire - instantaneous destruction of the transformer will result!
Displaying 1 - 10 of 42
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
270X
Power chassis Mount
 RoHS Compliant
Hammond High Voltage Chassy Mount Power Transformer Primary [115VAC, 41VA @ 60Hz] >> Secondary Filament 1 [5V… |
Hammond Mfg.
Series 200 |
Total Stock: 15
Drop Ship Quantity: 15
Factory Lead Time: 20
|
1 - 1$67.10 2 - 2$66.00 3 - 3$64.90 ... |
|
|
275X
Power chassis Mount
RoHS Compliant
Hammond High Voltage Chassy Mount Power Transformer Primary [115VAC, 167VA @ 60Hz] >> Secondary Filament 1 [5V… |
Hammond Mfg.
Series 200 |
Factory Lead Time: 20
|
1 - 1$163.50 2 - 3$160.90 4 - 9$158.30 ... |
|
|
290HBZ
Enclosures
RoHS Compliant
Hammond POWER TRANS Part Number 290HBZ [UPC 62398039784 ] |
Hammond Mfg.
Series 200 |
Factory Lead Time: 20
|
1 - 1$155.90 2 - 3$153.40 4 - 9$150.90 ... |
|
|
263AX
Power chassis Mount
RoHS Compliant
Hammond High Voltage Chassy Mount Power Transformer Primary [115VAC, 32VA @ 60Hz] >> Secondary Filament 1 [5V… |
Hammond Mfg.
Series 200 |
Factory Lead Time: 20
|
1 - 1$56.80 2 - 2$55.90 3 - 4$54.90 ... |
|
|
270BX
Power chassis Mount
RoHS Compliant
Hammond High Voltage Chassy Mount Power Transformer Primary [115VAC, 53VA @ 60Hz] >> Secondary Filament 1 [5V… |
Hammond Mfg.
Series 200 |
Total Stock: 2
Factory Lead Time: 20
|
1 - 1$68.40 2 - 2$67.30 3 - 3$66.20 ... |
|
|
270CX
Power chassis Mount
RoHS Compliant
Hammond High Voltage Chassy Mount Power Transformer Primary [115VAC, 59VA @ 60Hz] >> Secondary Filament 1 [6.3… |
Hammond Mfg.
Series 200 |
Factory Lead Time: 20
|
1 - 1$74.00 2 - 2$72.80 3 - 3$71.60 ... |
|
|
270DAZ
Enclosures
RoHS Compliant
Transformer, high voltage, 76VA, primary 117VAC, HV secondary 520V C.T. @ 104ma. 260-0-260,90MA,6.3V@4A,50/60 Hammond… |
Hammond Mfg.
Series 200 |
Factory Lead Time: 20
|
1 - 1$75.50 2 - 2$74.20 3 - 3$73.00 ... |
|
|
270FX
Power chassis Mount
RoHS Compliant
Hammond High Voltage Chassy Mount Power Transformer Primary [115VAC, 138VA @ 60Hz] >> Secondary Filament 1 [5V… |
Hammond Mfg.
Series 200 |
Total Stock: 4
Factory Lead Time: 20
|
1 - 1$87.90 2 - 2$86.50 3 - 9$85.10 ... |
|
|
271X
Power chassis Mount
RoHS Compliant
Hammond High Voltage Chassy Mount Power Transformer Primary [115VAC, 63VA @ 60Hz] >> Secondary Filament 1 [5V… |
Hammond Mfg.
Series 200 |
Total Stock: 1
Factory Lead Time: 20
|
1 - 1$67.10 2 - 2$65.90 3 - 3$64.80 ... |
|
|
272DX
Power chassis Mount
RoHS Compliant
Hammond High Voltage Chassy Mount Power Transformer Primary [115VAC, 123VA @ 60Hz] >> Secondary Filament 1 [5V… |
Hammond Mfg.
Series 200 |
Total Stock: 3
Factory Lead Time: 20
|
1 - 1$87.60 2 - 2$86.20 3 - 9$84.80 ... |
