271X

Hammond Mfg. | 200 Series | Power chassis Mount
green-check-icon Total Stock: 1
yellow-timer-icon Factory Lead Time: 20
onlycheckmark RoHs Compliant
200

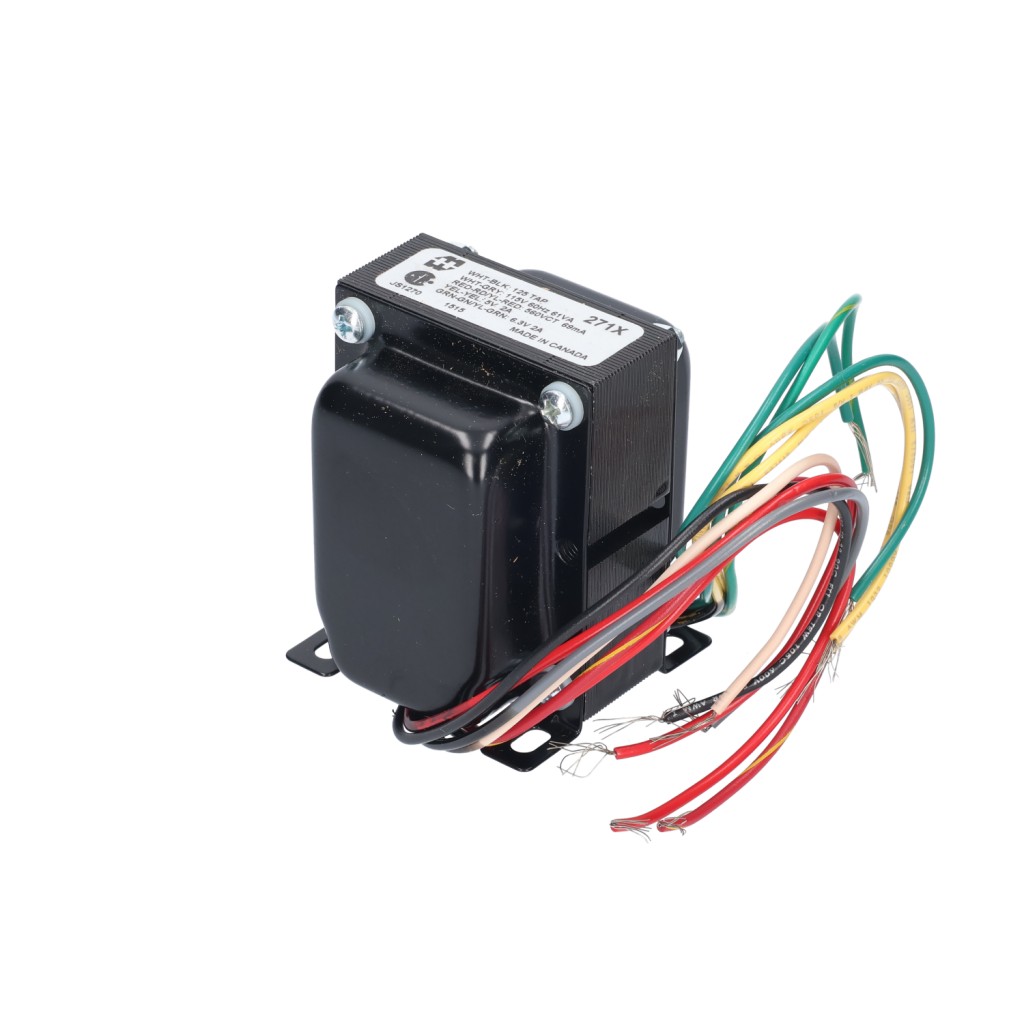

Hammond High Voltage Chassy Mount Power Transformer Primary [115VAC, 63VA @ 60Hz] >> Secondary Filament 1 [5V @ 2Awith R.M.S. of 560V C.T. @ 69ma.. Overall Dims WidthxDepthxHeight of 2.50 x 2.75 x 3.06. ROHS and CSA.

$67.10

Min: 1  Mult: 1

Product Attributes

Width x Depth x Height (In)

2.50 x 2.75 x 3.06

Mounting Hole Width Centers

2.00

Mounting Slot

0.20x0.38

Mounting Style

Vertical (X)

Primary Hz

60

RoHS

Compliant

Secondary Filament #1

5V @ 2A

Secondary Filament #2

6.3V C.T. @ 2A

Secondary RMS

560V C.T. @ 69ma.

VA

63

Width

2.50

Leads

Minimum 6" long

Insulation

Class A (105 degrees C)

CSA

CSA certified (209651)

Hi Pot

Test of 2,000V RMS

Height

3.06

Depth

2.75

CAD File

Click Here

Series Photo

Click Here

Manufacturers Series Page

Click Here

Filament # 1 Vac

5V @ 2A

Eccn

EAR99

A.C. High Voltage Secondary Rms

560V C.T. @ 69ma.

Primary VAC

115

Hammond Product Photo

Click Here

Mounting Type

Vertical ("X")

Power Rating (Va)

63

Pricing Note

Price change ~5.0% on 10/01/22

Primary Frequency

60

Hammond Product Group

transformers

Hammond Product Type

transformer

Hammond Series

200

UPC

623980274935

Lead-Time Weeks

4

Standard Stock

Yes
