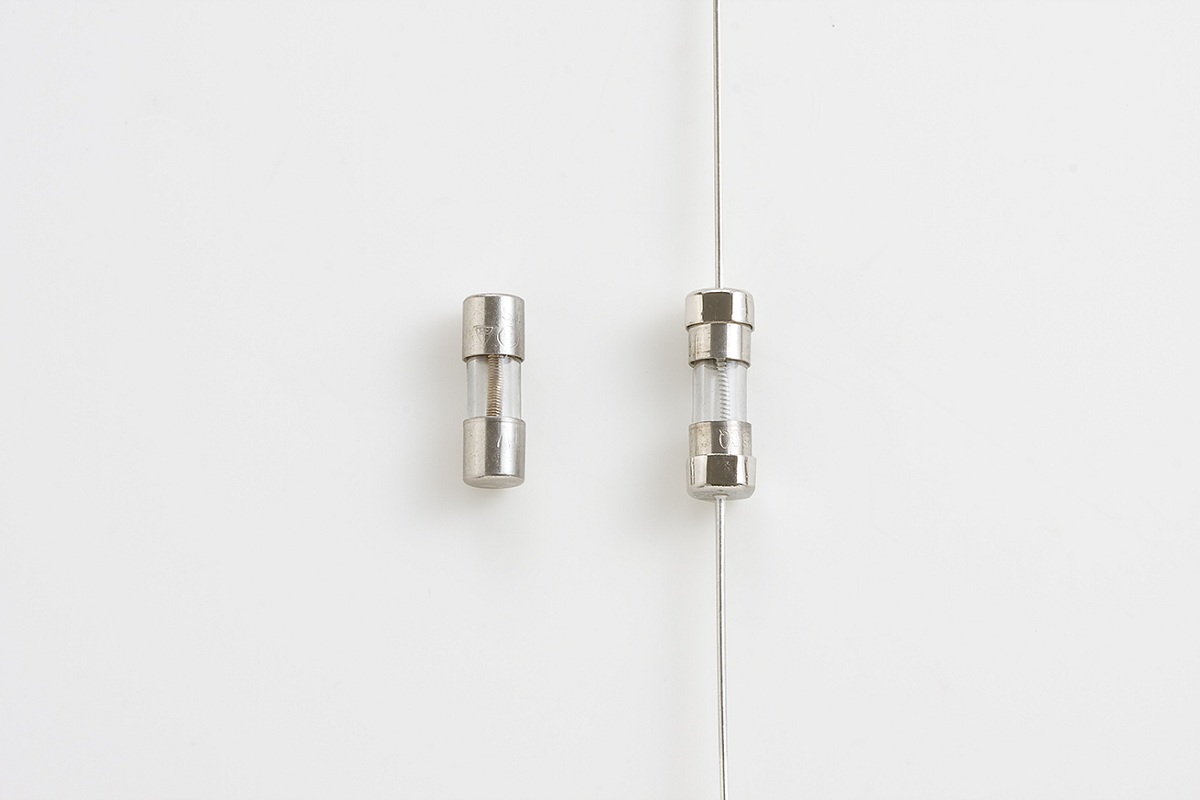

Type TSE/TSE-P: Time Delay Glass Tube Fuse 5 x 15 mm (2AG)
Fuse Size:
4.5 x.14.5mm (0.177” x 0.571”)
Ampere Rating: 200mA ~ 10A
Voltage Rating: 250VAC
Interrupt Rating:
35A @ 250VAC (200mA-1A)
100A @ 250VAC (1.2A-10A)
100A @ 250VAC (1A-10A) PSE
Operating Temp: -55°C ~ 125°C
Pigtail Lead: Copper Wire
Ø 0.6mm (8A)
Ø 0.8mm (?8A)
Displaying 1 - 10 of 30
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
TSE-1.25A
Cylindrical PCB Fuse
5 x 15 mm FUSE GLASS BODY-TIME-DELAY (N. AMER. STD) - 1.25A Bussmann Cross C519-1.25-R LittelFuse Cross 2291.25MXP… |
OPTIFuse
Series TSE |
Factory Lead Time: TBD
|
1000 - 1999$0.29 2000 - 2999$0.28 3000 - 4999$0.28 ... |
|
|
TSE-1.2A
Cylindrical PCB Fuse
5 x 15 mm FUSE GLASS BODY-TIME-DELAY (N. AMER. STD) - 1.2A |
OPTIFuse
Series TSE |
Factory Lead Time: TBD
|
1000 - 1999$0.29 2000 - 2999$0.28 3000 - 4999$0.28 ... |
|
|
TSE-1.6A
Cylindrical PCB Fuse
5 x 15 mm FUSE GLASS BODY-TIME-DELAY (N. AMER. STD) - 1.6A Bussmann Cross C519-1.6-R |
OPTIFuse
Series TSE |
Factory Lead Time: TBD
|
1000 - 1999$0.29 2000 - 2999$0.28 3000 - 4999$0.28 ... |
|
|
TSE-200mA
Cylindrical PCB Fuse
5 x 15 mm FUSE GLASS BODY-TIME-DELAY (N. AMER. STD) - 200mA |
OPTIFuse
Series TSE |
Factory Lead Time: TBD
|
1000 - 1999$0.31 2000 - 2999$0.30 3000 - 4999$0.30 ... |
|
|
TSE-3.15A
Cylindrical PCB Fuse
5 x 15 mm FUSE GLASS BODY-TIME-DELAY (N. AMER. STD) - 3.15A |
OPTIFuse
Series TSE |
Factory Lead Time: TBD
|
1000 - 1999$0.29 2000 - 2999$0.28 3000 - 4999$0.28 ... |
|
|
TSE-300mA
Cylindrical PCB Fuse
5 x 15 mm FUSE GLASS BODY-TIME-DELAY (N. AMER. STD) - 300mA |
OPTIFuse
Series TSE |
Factory Lead Time: TBD
|
1000 - 1999$0.29 2000 - 2999$0.28 3000 - 4999$0.28 ... |
|
|
TSE-375mA
Cylindrical PCB Fuse
5 x 15 mm FUSE GLASS BODY-TIME-DELAY (N. AMER. STD) - 375mA Bussmann Cross C519-375-R LittelFuse Cross 229.375MXP … |
OPTIFuse
Series TSE |
Factory Lead Time: TBD
|
1000 - 1999$0.29 2000 - 2999$0.28 3000 - 4999$0.28 ... |
|
|
TSE-400mA
Cylindrical PCB Fuse
5 x 15 mm FUSE GLASS BODY-TIME-DELAY (N. AMER. STD) - 400mA |
OPTIFuse
Series TSE |
Factory Lead Time: TBD
|
1000 - 1999$0.29 2000 - 2999$0.28 3000 - 4999$0.28 ... |
|
|
TSE-6.3A
Cylindrical PCB Fuse
5 x 15 mm FUSE GLASS BODY-TIME-DELAY (N. AMER. STD) - 6.3A |
OPTIFuse
Series TSE |
Factory Lead Time: TBD
|
1000 - 1999$0.29 2000 - 2999$0.28 3000 - 4999$0.28 ... |
|
|
TSE-600mA
Cylindrical PCB Fuse
5 x 15 mm FUSE GLASS BODY-TIME-DELAY (N. AMER. STD) - 600mA Bussmann Cross C519-600-R LittelFuse Cross 229.600MXP … |
OPTIFuse
Series TSE |
Factory Lead Time: TBD
|
1000 - 1999$0.29 2000 - 2999$0.28 3000 - 4999$0.28 ... |
