Hawk Electronics
FiltersTSD

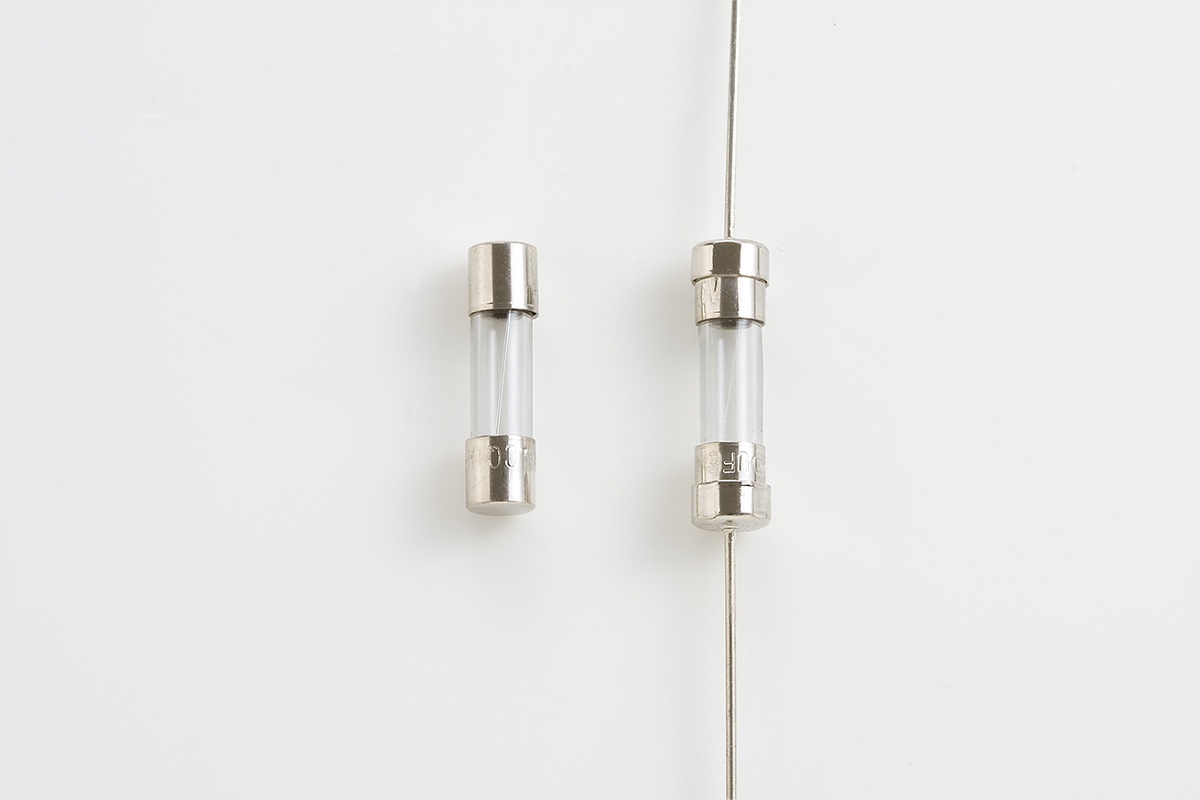

Type TSD: Time-Delay Glass Tube Fuse 5 x 20 mm
Interrupt Ratings:
35A or 10 In 250V AC Whichever is Greater
Operating Temperature:
-55ºC to +125ºC
Material:
Glass Body/Nickel Plated Brass Caps
Lead Wire Ø0.65mm - 10A
Ø0.8mm - 10A ~ 15A
Ø1.0mm - > 15A
Packaging:
TSD 1000 pcs; TSD-P 500 pcs per box.
Displaying 1 - 10 of 26
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
TSD-1A
Fuse
5 x 20 mm FUSE GLASS BODY-TIME-DELAY (EUR. STD) - 1A Bussmann Cross GDC-1A or S506-1 LittelFuse Cross 218001MXP |
OPTIFuse
Series TSD |
Total Stock: 1600
Drop Ship Quantity: 1600
Factory Lead Time: TBD
|
2 - 49$0.93 50 - 99$0.91 100 - 199$0.60 ... |
|
|
TSD-200mA
Fuse
5 x 20 mm FUSE GLASS BODY-TIME-DELAY (EUR. STD) - 200mA Bussmann Cross GDC-200mA or S506-200 LittelFuse Cross 218.200… |
OPTIFuse
Series TSD |
Total Stock: 900
Drop Ship Quantity: 900
Factory Lead Time: TBD
|
2 - 49$1.09 50 - 99$1.06 100 - 199$0.70 ... |
|
|
TSD-1.25A
Fuse
5 x 20 mm FUSE GLASS BODY-TIME-DELAY (EUR. STD) - 1.25A Bussmann Cross GDC-1.25A or S506-1.25 LittelFuse Cross 2181.2… |
OPTIFuse
Series TSD |
Factory Lead Time: TBD
|
2 - 49$0.93 50 - 99$0.91 100 - 199$0.60 ... |
|
|
TSD-1.6A
Fuse
5 x 20 mm FUSE GLASS BODY-TIME-DELAY (EUR. STD) - 1.6A Bussmann Cross GDC-1.6A or S506-1.6 LittelFuse Cross 21801.6MX… |
OPTIFuse
Series TSD |
Total Stock: 190
Factory Lead Time: TBD
|
2 - 49$0.93 50 - 99$0.91 100 - 199$0.60 ... |
|
|
TSD-100MA
Fuse
5 x 20 mm FUSE GLASS BODY-TIME-DELAY (EUR. STD) - 100mA Bussmann Cross GDC-100mA orS506-100 LittelFuse Cross 218.100M… |
OPTIFuse
Series TSD |
Factory Lead Time: TBD
|
1 - 24$1.39 25 - 99$1.36 100 - 124$0.89 ... |
|
|
TSD-10A
Fuse
5 x 20 mm FUSE GLASS BODY-TIME-DELAY (EUR. STD) - 10A Bussmann Cross S506-10 LittelFuse Cross 218010MXP |
OPTIFuse
Series TSD |
Factory Lead Time: TBD
|
1 - 24$1.14 25 - 99$1.12 100 - 199$0.66 ... |
|
|
TSD-12.5A
Fuse
5 x 20 mm FUSE GLASS BODY-TIME-DELAY (EUR. STD) - 12.5A Bussmann Cross S506-12.5 LittelFuse Cross 21812.5MXP |
OPTIFuse
Series TSD |
Factory Lead Time: TBD
|
1 - 24$1.14 25 - 99$1.12 100 - 199$0.85 ... |
|
|
TSD-125MA
Fuse
5 x 20 mm FUSE GLASS BODY-TIME-DELAY (EUR. STD) - 125mA Bussmann Cross GDC-125mA or S506-125 LittelFuse Cross 218.125… |
OPTIFuse
Series TSD |
Factory Lead Time: TBD
|
2 - 49$1.09 50 - 99$1.06 100 - 199$0.70 ... |
|
 RoHS Compliant
IEC 5x20mm Glass - Slow, 250V 12A |
OPTIFuse
Series TSD |
Factory Lead Time: TBD
|
1 - 24$1.14 25 - 99$1.12 100 - 199$0.66 ... |
|
|
TSD-15A
Fuse
5 x 20 mm FUSE GLASS BODY-TIME-DELAY (EUR. STD) - 15A Bussmann Cross S506-15 LittelFuse Cross 218015MXP |
OPTIFuse
Series TSD |
Factory Lead Time: TBD
|
1 - 24$1.14 25 - 99$1.12 100 - 199$0.85 ... |
TSD
