TCA

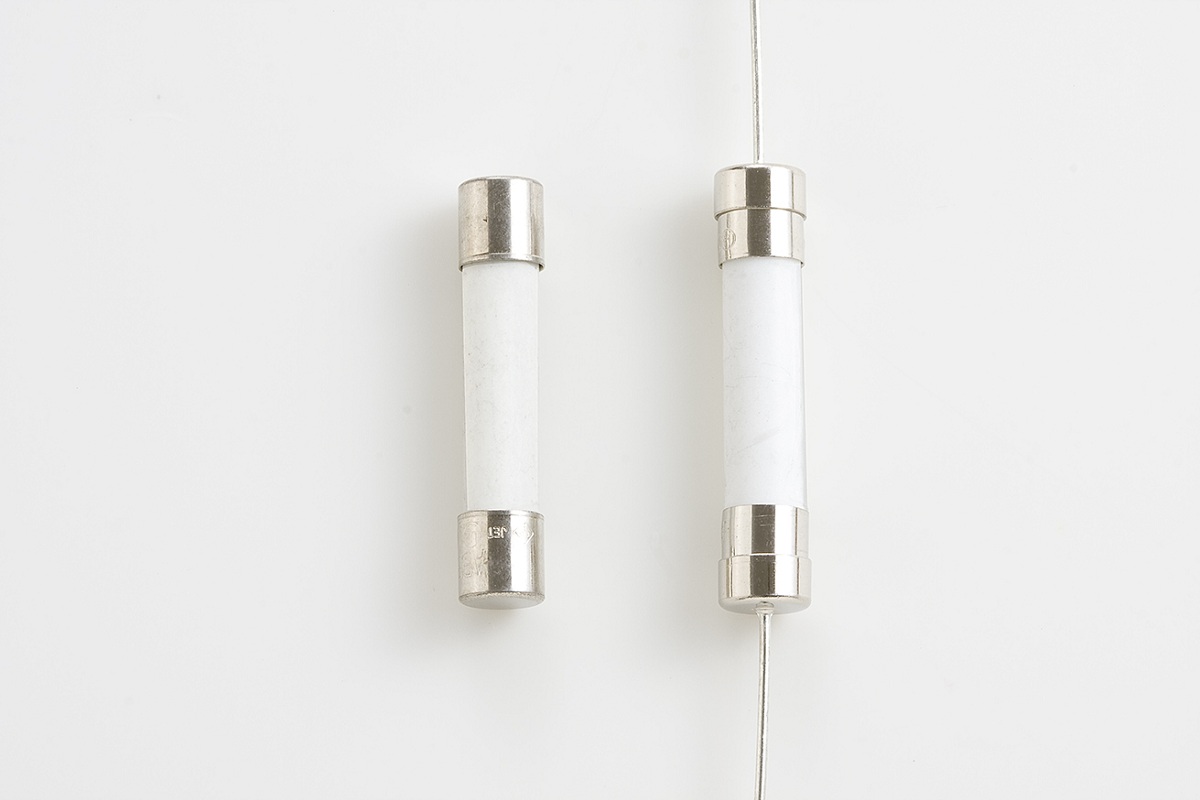

Type TCA/TCA-P: 6.3 x 32mm - Time-Lag Ceramic Tube Fuse
UL Listed 100mA-15A
UL Recognized 20A-30A
PSE 1A-30A
KC 500mA-12A, 15A-30A
TÜV 3A-30A
Operating Temperature: -55C - +125C
Physical Specifications:
Materials
Ceramic Body/Nickel Plated Brass Contacts
Lead Wire: Tin Plated Copper,
Dia. 0.8mm 15A
Dia. 1mm ? 15

Displaying 1 - 10 of 40

Title	Manufacturer	Availability	prices	Variations
TCA-1.2A 6.3x32mm Ceramic TCA ¼" x 1 ¼" FUSE CERAMIC BODY-TIME-DELAY - 1.2A Bussmann Cross MDA-1-1/4 LittelFuse Cross 3261.25	OPTIFuse Series TCA	Factory Lead Time: TBD	1000 - 1999$0.55 2000 - 2999$0.54 3000 - 4999$0.53 ... 5000 - 9999 $0.52 10000 - 24999 $0.51 25000 - 49999 $0.51 50000 $0.49	Quantity Min: 1000 Mult: 1000
TCA-125mA 6.3x32mm Ceramic TCA ¼" x 1 ¼" FUSE CERAMIC BODY-TIME-DELAY - 125mA Bussmann Cross MDA-1/8 LittelFuse Cross 326.125	OPTIFuse Series TCA	Factory Lead Time: TBD	1000 - 1999$1.64 2000 - 2999$1.62 3000 - 9999$1.59 ... 10000 - 14999 $1.55 15000 $1.53	Quantity Min: 1000 Mult: 1000
TCA-13A 6.3x32mm Ceramic TCA ¼" x 1 ¼" FUSE CERAMIC BODY-TIME-DELAY - 13A	OPTIFuse Series TCA	Factory Lead Time: TBD	1000 - 1999$0.55 2000 - 2999$0.54 3000 - 4999$0.53 ... 5000 - 9999 $0.52 10000 - 24999 $0.51 25000 - 49999 $0.51 50000 $0.49	Quantity Min: 1000 Mult: 1000
TCA-150mA 6.3x32mm Ceramic TCA ¼" x 1 ¼" FUSE CERAMIC BODY-TIME-DELAY - 150mA LittelFuse Cross 326.150	OPTIFuse Series TCA	Factory Lead Time: TBD	1000 - 1999$1.64 2000 - 2999$1.62 3000 - 9999$1.59 ... 10000 - 14999 $1.55 15000 $1.53	Quantity Min: 1000 Mult: 1000
TCA-160mA 6.3x32mm Ceramic RoHS Compliant TCA 3AB 1/4" x 1 1/4" -Slow, 250V 160mA	OPTIFuse Series TCA	Factory Lead Time: TBD	1000 - 1999$1.64 2000 - 2999$1.62 3000 - 9999$1.59 ... 10000 - 14999 $1.55 15000 $1.53	Quantity Min: 1000 Mult: 1000
TCA-175mA 6.3x32mm Ceramic TCA ¼" x 1 ¼" FUSE CERAMIC BODY-TIME-DELAY - 175mA LittelFuse Cross 326.175	OPTIFuse Series TCA	Factory Lead Time: TBD	1000 - 1999$1.64 2000 - 2999$1.62 3000 - 9999$1.59 ... 10000 - 14999 $1.55 15000 $1.53	Quantity Min: 1000 Mult: 1000
TCA-180mA 6.3x32mm Ceramic RoHS Compliant TCA 3AB 1/4" x 1 1/4" -Slow, 250V 180mA	OPTIFuse Series TCA	Factory Lead Time: TBD	1000 - 1999$1.64 2000 - 2999$1.62 3000 - 9999$1.59 ... 10000 - 14999 $1.55 15000 $1.53	Quantity Min: 1000 Mult: 1000
TCA-200mA 6.3x32mm Ceramic TCA ¼" x 1 ¼" FUSE CERAMIC BODY-TIME-DELAY - 200mA Bussmann Cross MDA-2/10 LittelFuse Cross 326.200	OPTIFuse Series TCA	Factory Lead Time: TBD	1000 - 1999$1.64 2000 - 2999$1.62 3000 - 9999$1.59 ... 10000 - 14999 $1.55 15000 $1.53	Quantity Min: 1000 Mult: 1000
TCA-3.15A 6.3x32mm Ceramic RoHS Compliant TCA 3AB 1/4" x 1 1/4" -Slow, 250V 3.15A	OPTIFuse Series TCA	Factory Lead Time: TBD	1000 - 1999$0.55 2000 - 2999$0.54 3000 - 4999$0.53 ... 5000 - 9999 $0.52 10000 - 24999 $0.51 25000 - 49999 $0.51 50000 $0.49	Quantity Min: 1000 Mult: 1000
TCA-3.5A 6.3x32mm Ceramic TCA ¼" x 1 ¼" FUSE CERAMIC BODY-TIME-DELAY - 3.5A	OPTIFuse Series TCA	Factory Lead Time: TBD	1000 - 1999$0.55 2000 - 2999$0.54 3000 - 4999$0.53 ... 5000 - 9999 $0.52 10000 - 24999 $0.51 25000 - 49999 $0.51 50000 $0.49	Quantity Min: 1000 Mult: 1000
