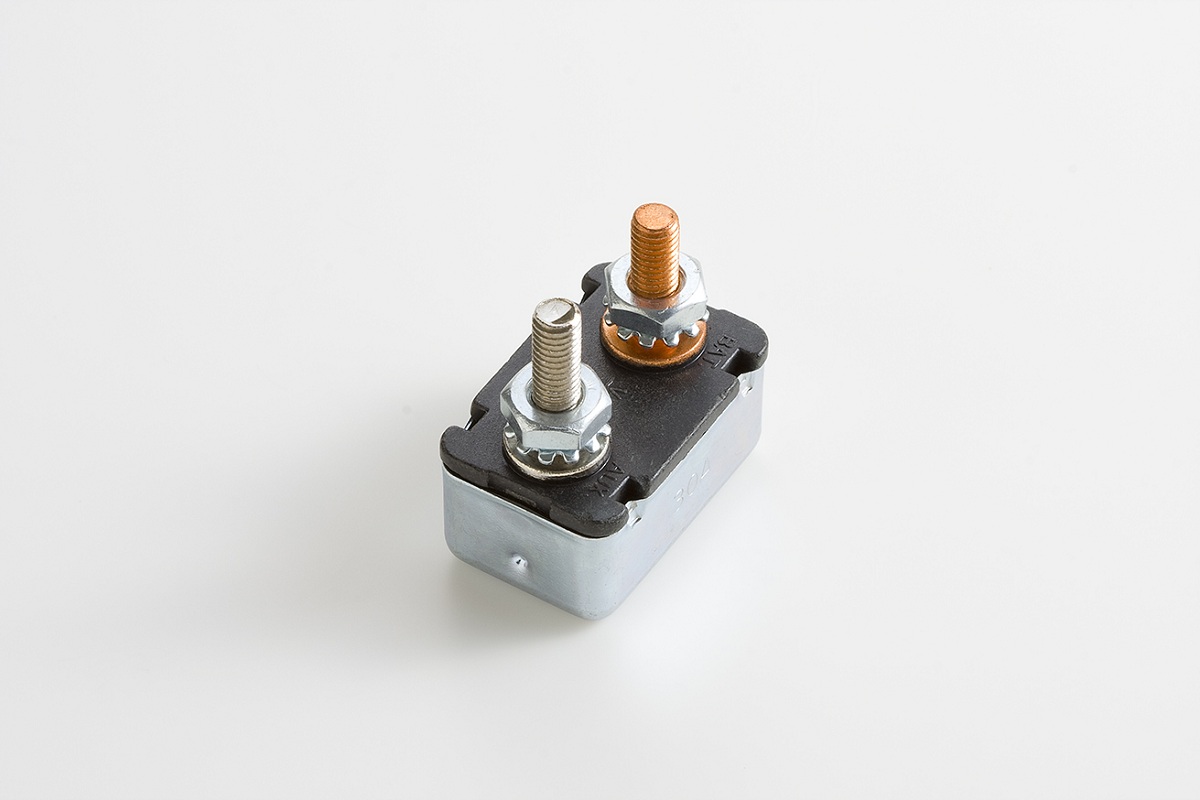

Type MOCB-12-N / MOCB-24-N: Modified Reset Circuit Breaker Automotive Type II Metal Without Bracket
Specifications:
Modified Reset Type Circuit Breaker. Modified reset circuit breakers are devices that
are opened by over-current and remain open as long as the power is on to the affected
circuit or until load is removed.
Voltage: 12V or 24V
Amperage: 10A, 15A, 20A, 25A, 30A, 35A, 40A, 50A
Terminals: Battery – Copper Plate (0.58”), Auxiliary – Zinc Plate (0.66”)
Conforms to American National Standard SAE J553
Cover Material: Metal
Operating Temperature: -10º F ~ 150º F
Storage Temperature: -20º F ~ 200º F
Displaying 1 - 2 of 2
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
MOCB-12-N-12A
Fuse
AUTOMOTIVE CIRCUIT BREAKER-TYPE II - MODIFIED RESET - 12VDC-METAL BODY - NO BRACKET-TWO 10-32 STUDS - 0.66 / 0.56 IN.… |
OPTIFuse
Series MOCB-N |
Factory Lead Time: TBD
|
100 - 199$2.79 200 - 299$2.73 300 - 499$2.67 ... |
|
|
MOCB-24-N-12A
Fuse
AUTOMOTIVE CIRCUIT BREAKER-TYPE II - MODIFIED RESET - 24VDC-METAL BODY - NO BRACKET-TWO 10-32 STUDS - 0.66 / 0.56 IN.… |
OPTIFuse
Series MOCB-N |
Factory Lead Time: TBD
|
100 - 199$2.94 200 - 299$2.88 300 - 499$2.81 ... |
