FiltersACB2-PL

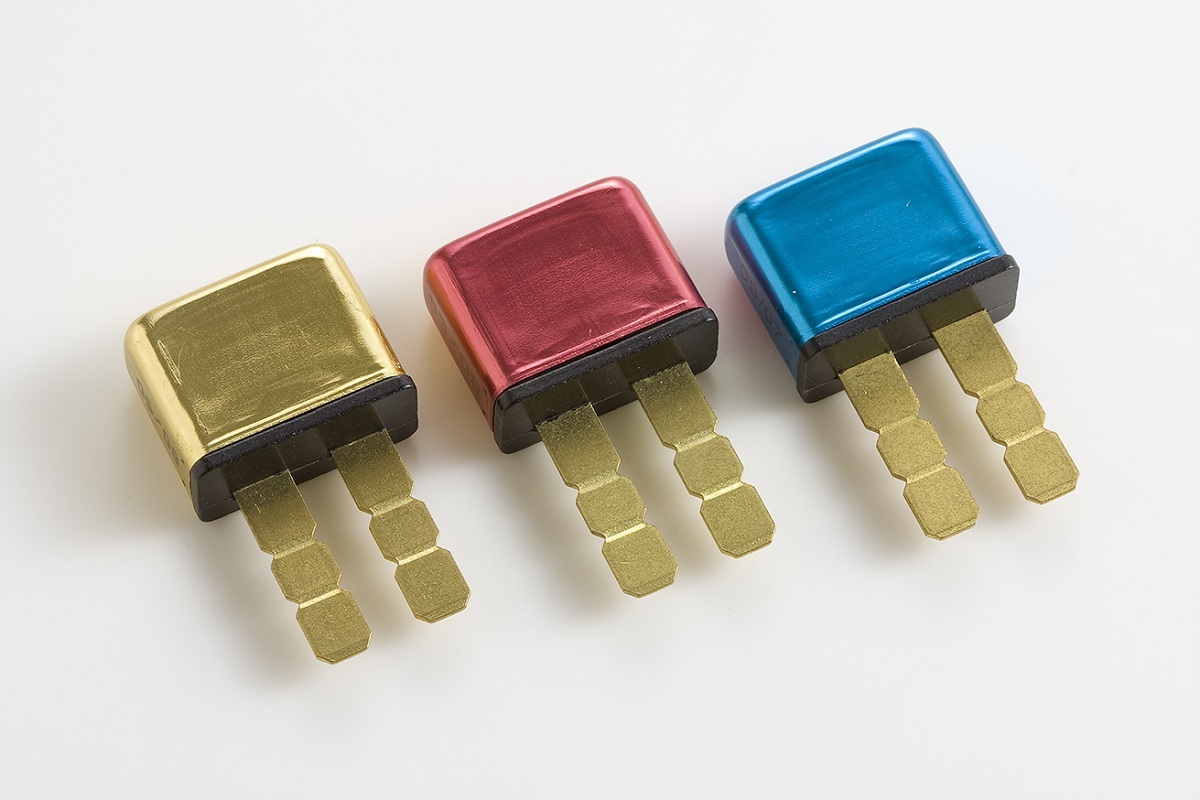

Type ACB2-PL Auto Reset Circuit Breaker Automotive Type I Plug-In Type www.optifuse.com (619) 593-5050 Specifications: Auto Reset Type Circuit Breaker Voltage: Up to 12V Amperage: 10A, 15A, 20A, 25A, 30A, 35A, 40A Conforms to American National Standard SAE J553 Operating Temperature: -10º F ~ 150º F Storage Temperature: -20º F ~ 200º F Current Rating: Rating Open Time 100% ± 1.5% > 30 Min 135% ± 1.5% < 30 Min 200% ± 1.5% < 1 Min Part Number Amperage Body Color ACB2-PL-10A 10A Red ACB2-PL-15A 15A Blue ACB2-PL-20A 20A Yellow ACB2-PL-25A 25A Clear/Silver ACB2-PL-30A 30A Green ACB2-PL-35A 35A Blue Green ACB2-PL-40A 40A Orange Mechanical Dimensions: Inches [mm]
Displaying 1 - 7 of 7
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
ACB2-PL-10A
Automotive Blade
UNIV. AUTOMOTIVE CKT. BRKR.-TYPE I - AUTOMATIC RESET-12VDC-METAL BODY - NO BRACKET-TWO SNAP-OFF BLADES - 10A Bussmann… |
OPTIFuse
Series ACB2-PL |
Factory Lead Time: TBD
|
1 - 9$3.98 10 - 49$3.90 50 - 74$3.82 ... |
|
|
ACB2-PL-15A
Automotive Blade
UNIV. AUTOMOTIVE CKT. BRKR.-TYPE I - AUTOMATIC RESET-12VDC-METAL BODY - NO BRACKET-TWO SNAP-OFF BLADES - 15A Bussmann… |
OPTIFuse
Series ACB2-PL |
Factory Lead Time: TBD
|
1 - 9$3.98 10 - 49$3.90 50 - 74$3.82 ... |
|
|
ACB2-PL-20A
Automotive Blade
UNIV. AUTOMOTIVE CKT. BRKR.-TYPE I - AUTOMATIC RESET-12VDC-METAL BODY - NO BRACKET-TWO SNAP-OFF BLADES - 20A Bussmann… |
OPTIFuse
Series ACB2-PL |
Factory Lead Time: TBD
|
1 - 9$3.98 10 - 49$3.90 50 - 74$3.82 ... |
|
|
ACB2-PL-25A
Automotive Blade
UNIV. AUTOMOTIVE CKT. BRKR.-TYPE I - AUTOMATIC RESET-12VDC-METAL BODY - NO BRACKET-TWO SNAP-OFF BLADES - 25A Bussmann… |
OPTIFuse
Series ACB2-PL |
Factory Lead Time: TBD
|
1 - 9$3.98 10 - 49$3.90 50 - 74$3.82 ... |
|
|
ACB2-PL-30A
Automotive Blade
UNIV. AUTOMOTIVE CKT. BRKR.-TYPE I - AUTOMATIC RESET-12VDC-METAL BODY - NO BRACKET-TWO SNAP-OFF BLADES - 30A Bussmann… |
OPTIFuse
Series ACB2-PL |
Factory Lead Time: TBD
|
1 - 9$3.98 10 - 49$3.90 50 - 74$3.82 ... |
|
|
ACB2-PL-35A
Automotive Blade
UNIV. AUTOMOTIVE CKT. BRKR.-TYPE I - AUTOMATIC RESET-12VDC-METAL BODY - NO BRACKET-TWO SNAP-OFF BLADES - 35A |
OPTIFuse
Series ACB2-PL |
Factory Lead Time: TBD
|
1 - 9$3.98 10 - 49$3.90 50 - 74$3.82 ... |
|
|
ACB2-PL-40A
Automotive Blade
UNIV. AUTOMOTIVE CKT. BRKR.-TYPE I - AUTOMATIC RESET-12VDC-METAL BODY - NO BRACKET-TWO SNAP-OFF BLADES - 40A |
OPTIFuse
Series ACB2-PL |
Total Stock: 4
Factory Lead Time: TBD
|
1 - 9$3.98 10 - 49$3.90 50 - 74$3.82 ... |
ACB2-PL
