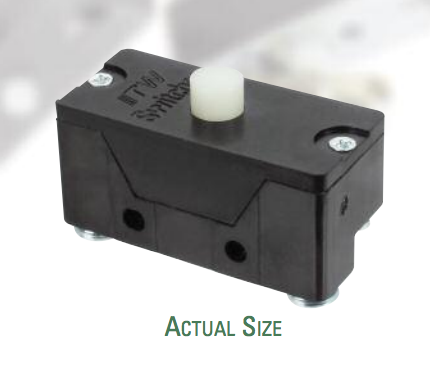

SERIES 14 HEAVY DUTY 20 AMP DOUBLE-BREAK SWITCHES.
This rugged single-pole double-break Butterfly® switch will handle up to 20 amps. Ideal for high-current applications which require long life and reliability.

Key Features:
• Standard or heavy duty mounting • Semirefactory contacts and offset #6 screw terminals with cup washers are standard • Sealed button actuator is available • Button, overtravel plunger or pivoted lever actuator are available • UL recognized and CSA certified • Terminal: #6 screw with cup washer • SPDT-DB (Form Z)

Applications: • Train car door operators • Bus door operators • Pendant controls • Lift trucks • Heavy industrial machinery

UL recognized. Amps @ 125/250/480 VAC 78-80%PF and CSA Certified File No. 16388. • 1 HP 125 VAC, 2 HP 250 VAC. Materials recognized by UL for use at temperatures not exceeding 105° C (220° F)

Manufacturer Page
Displaying 1 - 6 of 6
Title Manufacturer Availability prices Variations
14124

Snap-Action

RoHS Compliant
14

SNAP ACTION SWITCH Heavy Duty 20 Amp Double Break Switch with Standard mounting and Standard Button Actuator

 ITW Switches

Series 14
green-check-icon Total Stock: 56
yellow-timer-icon Factory Lead Time: 140
100 - 199$42.70
200 - 399$41.10
400 - 999$40.30
...
Min: 100  Mult: 100
14-12404

Snap-Action

RoHS Compliant
14

ITW single-pole double-break Butterfly switch 20 amps

 ITW Switches

Series 14
yellow-timer-icon Factory Lead Time: 140
100 - 149$44.60
150 - 499$42.90
500 - 999$42.00
...
Min: 100  Mult: 50
14-124

Snap-Action

RoHS Compliant
14

ITW single-pole double-break Butterfly switch 20 amps

 ITW Switches

Series 14
green-check-icon Total Stock: 56
yellow-timer-icon Factory Lead Time: 140
100 - 199$42.70
200 - 399$41.10
400 - 999$40.30
...
Min: 100  Mult: 100
1412404

Snap-Action

RoHS Compliant
14

ITW single-pole double-break Butterfly switch 20 amps

 ITW Switches

Series 14
yellow-timer-icon Factory Lead Time: 140
100 - 149$44.60
150 - 499$42.90
500 - 999$42.00
...
Min: 100  Mult: 50
14324

Snap-Action

RoHS Compliant
14

BASIC SWITCH

 ITW Switches

Series 14
yellow-timer-icon Factory Lead Time: TBD
50 - 99$47.50
100 - 149$34.20
150 - 499$33.70
...
Min: 100  Mult: 50
14724

Snap-Action

RoHS Compliant
14

BASIC SWITCH

 ITW Switches

Series 14
yellow-timer-icon Factory Lead Time: TBD
50 - 99$40.70
100 - 199$24.30
200 - 499$24.00
...
Min: 100  Mult: 50
