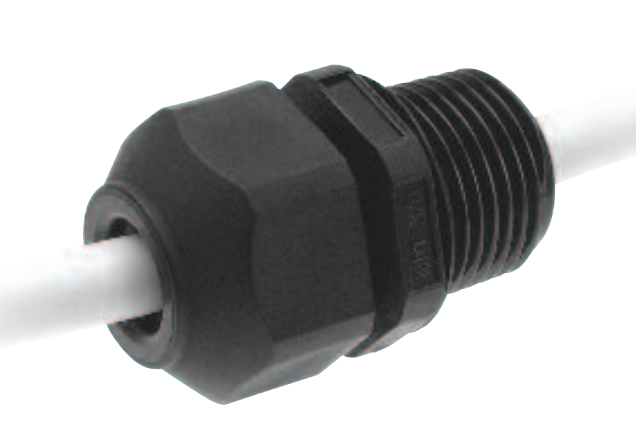

Heyco®-Tite Liquid Tight Cordgrips
Straight-Thru, PG* Hubs with Integral Sealing Ring
The Ultimate in Liquid Tight Strain Relief Protection
Integral Sealing Ring ensures a superior seal at the clearance or threaded mounting hole location, every time.
Widest range of approved cable diameters. Cable ranges listed are for the maximum IP68 sealing range. Contact Heyco for UL approved 514B cable ranges.
IP 68 rated.
Approved for NEMA 4, 4X, 6 and 6P applications.
Ratchet design of sealing nut assembly provides superior anti-vibration protection and ensures a firm grip on the cable.
Acme threads on body prevent skipping and speed installation.
All nylon construction with Buna N sealing gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. (This feature is not assessed by UL.)
Multiple sizes for flexible cord diameters ranging from .065" (1,7 mm) to 1.730" (44,0 mm).
We recommend using the fitting with the smallest maximum diameter that will fit your application.
Unassembled Nylon Locknuts INCLUDED.
For Heyco Liquid Tight Threaded Plugs, click here.
Consult Heyco for cordgrips molded in other colors.
Displaying 1 - 10 of 89
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
M3204
Nylon Cord Grip
Heyco IP68 Black PG Nylon Straight-Thru Cord grip for Cable OD range (0.875 x 1.260) with integral sealing ring. NEM… |
Heyco
Series ST-PG-CG-Nylon |
Factory Lead Time: TBD
|
50 - 99$5.10 100 - 199$4.85 200 - 499$4.67 ... |
|
|
M3219
Nylon Cord Grip
Heyco IP68 Black PG Nylon Straight-Thru Cord grip for Cable OD range (0.260 x 0.545) with integral sealing ring. NEM… |
Heyco
Series ST-PG-CG-Nylon |
Total Stock: 650
Factory Lead Time: TBD
|
500 - 999$1.06 1000 - 2499$1.02 2500 - 4999$0.98 ... |
|
|
M3222
Nylon Cord Grip
Heyco IP68 Black PG Nylon Straight-Thru Cord grip for Cable OD range (0.435 x 0.705) with integral sealing ring. NEM… |
Heyco
Series ST-PG-CG-Nylon |
Factory Lead Time: TBD
|
500 - 999$1.48 1000 - 1999$1.42 2000 - 4999$1.37 ... |
|
|
M3281
Nylon Cord Grip
Heyco IP68 Black PG Nylon Straight-Thru Cord grip for Cable OD range (1.450 x 1.730) with integral sealing ring. NEM… |
Heyco
Series ST-PG-CG-Nylon |
Factory Lead Time: TBD
|
50 - 99$12.70 100 - 199$12.20 200 - 499$11.70 ... |
|
|
M3207
Nylon Cord Grip
Heyco IP68 Black PG Nylon Straight-Thru Cord grip for Cable OD range (0.115 x 0.250) with integral sealing ring. NEM… |
Heyco
Series ST-PG-CG-Nylon |
Total Stock: 1000
Factory Lead Time: TBD
|
1500 - 1999$0.68 2000 - 3999$0.60 4000 - 7999$0.58 ... |
|
|
M3210
Nylon Cord Grip
Heyco IP68 Black PG Nylon Straight-Thru Cord grip for Cable OD range (0.105 x 0.315) with integral sealing ring. NEM… |
Heyco
Series ST-PG-CG-Nylon |
Total Stock: 2800
Factory Lead Time: TBD
|
1500 - 1999$0.75 2000 - 3999$0.66 4000 - 7999$0.64 ... |
|
|
M3206
Nylon Cord Grip
Heyco IP68 Black PG Nylon Straight-Thru Cord grip for Cable OD range (0.787 x 1.020) with integral sealing ring. NEM… |
Heyco
Series ST-PG-CG-Nylon |
Factory Lead Time: TBD
|
50 - 99$5.10 100 - 199$4.85 200 - 499$4.67 ... |
|
|
M3212
Nylon Cord Grip
Heyco IP68 Black PG Nylon Straight-Thru Cord grip for Cable OD range (1.230 x 1.560) with integral sealing ring. NEM… |
Heyco
Series ST-PG-CG-Nylon |
Factory Lead Time: TBD
|
50 - 99$11.00 100 - 249$10.60 250 - 499$10.20 ... |
|
|
M3225
Nylon Cord Grip
Heyco IP68 Black PG Nylon Straight-Thru Cord grip for Cable OD range (0.590 x 1.000) with integral sealing ring. NEM… |
Heyco
Series ST-PG-CG-Nylon |
Factory Lead Time: TBD
|
300 - 599$2.56 600 - 1199$2.47 1200 - 2099$2.38 ... |
|
|
M3213ST
Nylon Cord Grip
Heyco IP68 Black PG Nylon Straight-Thru Cord grip for Cable OD range (0.230 x 0.400) with integral sealing ring. NEM… |
Heyco
Series ST-PG-CG-Nylon |
Factory Lead Time: TBD
|
500 - 999$0.99 1000 - 1499$0.95 1500 - 4999$0.92 ... |
