FiltersSI-CG-Nylon
Heyco®-Tite Snap-In-2®
Liquid Tight Cordgrips
Straight-Thru, Snap-In Hubs
For Panels from .062" (1,6 mm) to .125" (3,2 mm) Thick
The Ultimate in Liquid Tight Strain Relief Protection
Easy installation—unique fingers securely snap into a range of panel thicknesses – up to .125" (3,2 mm) – with no tools or locknuts required.

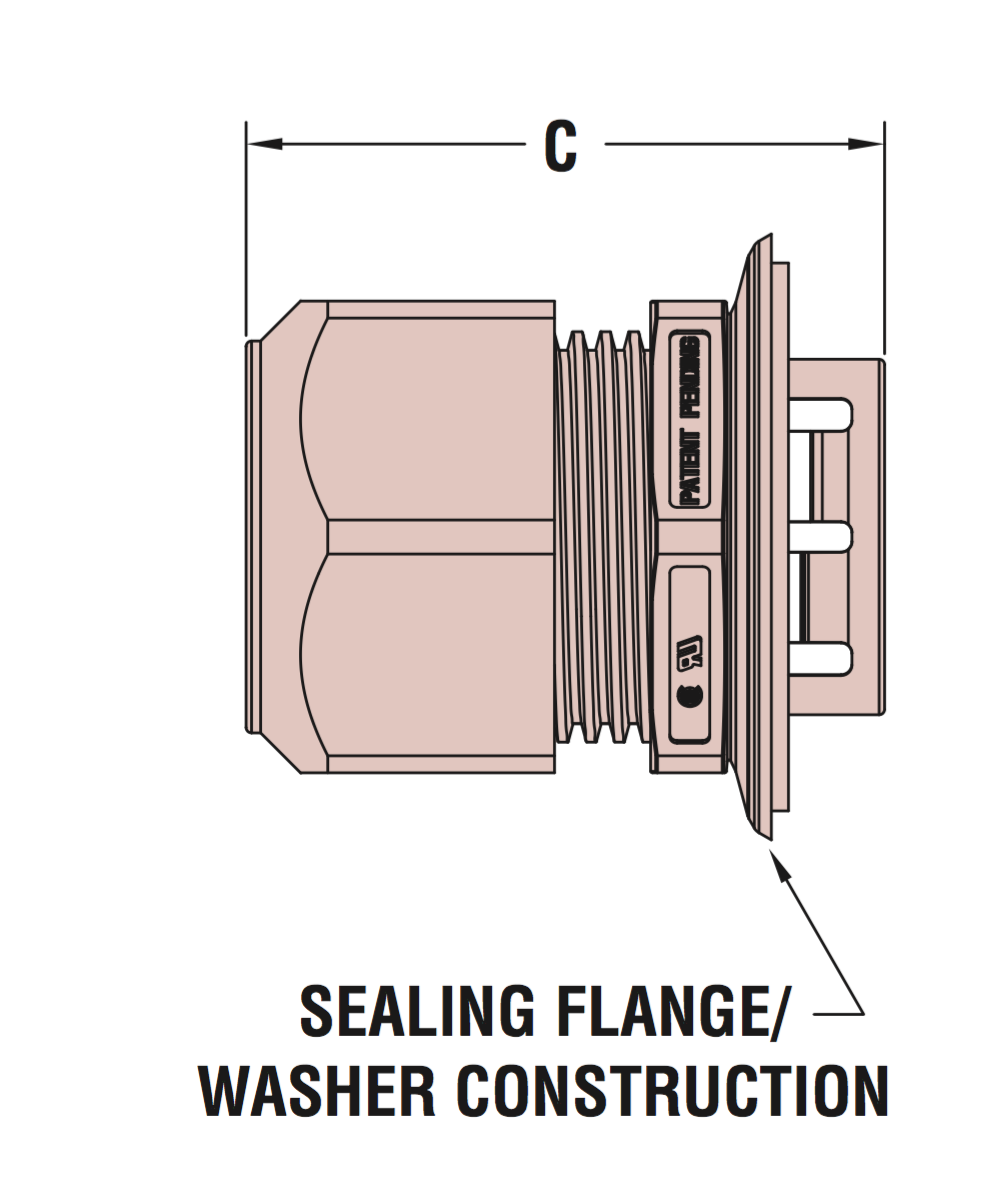

Sealing flange prevents sealing washer displacement due to water velocity to ensure a liquid tight IP 65.
Eliminate need for locknut or threaded hole to achieve liquid tight seal at panel; perfect for low clearance installation where locking nut access is limited.
Ratchet design of sealing nut assembly provides superior anti-vibration and ensures a firm grip on the cable.
Foam washer included.
Rotation prevented when used in Double D mounting holes.
For Double D Mounting Hole Punches, click here.
Available in multiple sizes for flexible cord diameters ranging from .065" (1,7 mm) to 1.000" (25,4 mm).
We recommend using the fitting with the smallest maximum diameter that will fit your application.
Consult Heyco for cordgrips molded in other colors.
Displaying 1 - 10 of 16
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
M3812
Nylon Cord Grip
Heyco Black IP68 Snap-in Liquid Tight Cordgrip for Cables range (0.230 - 0.395) and Mounting hole size 0.750. |
Heyco
Series SI-CG-Nylon |
Factory Lead Time: TBD
|
1500 - 2999$1.10 3000 - 4499$1.06 4500 - 10499$1.02 ... |
|
|
M3820
Nylon Cord Grip
Heyco Black IP68 Snap-in Liquid Tight Cordgrip for Cables range (0.095 - 0.260) and Mounting hole size 0.875. |
Heyco
Series SI-CG-Nylon |
Factory Lead Time: TBD
|
1500 - 2999$1.21 3000 - 4499$1.17 4500 - 10499$1.13 ... |
|
|
M3824
Nylon Cord Grip
Heyco Black IP68 Snap-in Liquid Tight Cordgrip for Cables range (0.260 - 0.546) and Mounting hole size 1.000. |
Heyco
Series SI-CG-Nylon |
Factory Lead Time: TBD
|
500 - 999$1.47 1000 - 1999$1.41 2000 - 4999$1.36 ... |
|
|
M3826
Nylon Cord Grip
Heyco Black IP68 Snap-in Liquid Tight Cordgrip for Cables range (0.180 - 0.440) and Mounting hole size 1.000. |
Heyco
Series SI-CG-Nylon |
Factory Lead Time: TBD
|
500 - 999$1.47 1000 - 1999$1.41 2000 - 4999$1.36 ... |
|
|
M3836
Nylon Cord Grip
Heyco Black IP68 Snap-in Liquid Tight Cordgrip for Cables range (0.485 - 0.709) and Mounting hole size 1.125. |
Heyco
Series SI-CG-Nylon |
Factory Lead Time: TBD
|
500 - 1499$1.97 1500 - 2499$1.90 2500 - 4999$1.83 ... |
|
|
M3838
Nylon Cord Grip
Heyco Black IP68 Snap-in Liquid Tight Cordgrip for Cables range (0.250 - 0.485) and Mounting hole size 1.125. |
Heyco
Series SI-CG-Nylon |
Factory Lead Time: TBD
|
500 - 1499$1.97 1500 - 2499$1.90 2500 - 4999$1.83 ... |
|
|
M3814
Nylon Cord Grip
Heyco Black IP68 Snap-in Liquid Tight Cordgrip for Cables range (0.069 - 0.250) and Mounting hole size 0.750. |
Heyco
Series SI-CG-Nylon |
Factory Lead Time: TBD
|
1500 - 2999$1.10 3000 - 4499$1.06 4500 - 10499$1.02 ... |
|
|
M3818
Nylon Cord Grip
Heyco Black IP68 Snap-in Liquid Tight Cordgrip for Cables range (0.170 - 0.450) and Mounting hole size 0.875. |
Heyco
Series SI-CG-Nylon |
Factory Lead Time: TBD
|
1500 - 2999$1.21 3000 - 4499$1.17 4500 - 10499$1.13 ... |
|
|
M3800
Nylon Cord Grip
Heyco Black IP68 Snap-in Liquid Tight Cordgrip for Cables range (0.115 - 0.250) and Mounting hole size 0.500. |
Heyco
Series SI-CG-Nylon |
Factory Lead Time: TBD
|
2000 - 3999$0.84 4000 - 5999$0.81 6000 - 9999$0.78 ... |
|
|
M3802
Nylon Cord Grip
Heyco Black IP68 Snap-in Liquid Tight Cordgrip for Cables range (0.065 - 0.210) and Mounting hole size 0.500. |
Heyco
Series SI-CG-Nylon |
Factory Lead Time: TBD
|
2000 - 3999$0.84 4000 - 5999$0.81 6000 - 9999$0.78 ... |
SI-CG-Nylon
