FiltersRA-M-CG-Nylon

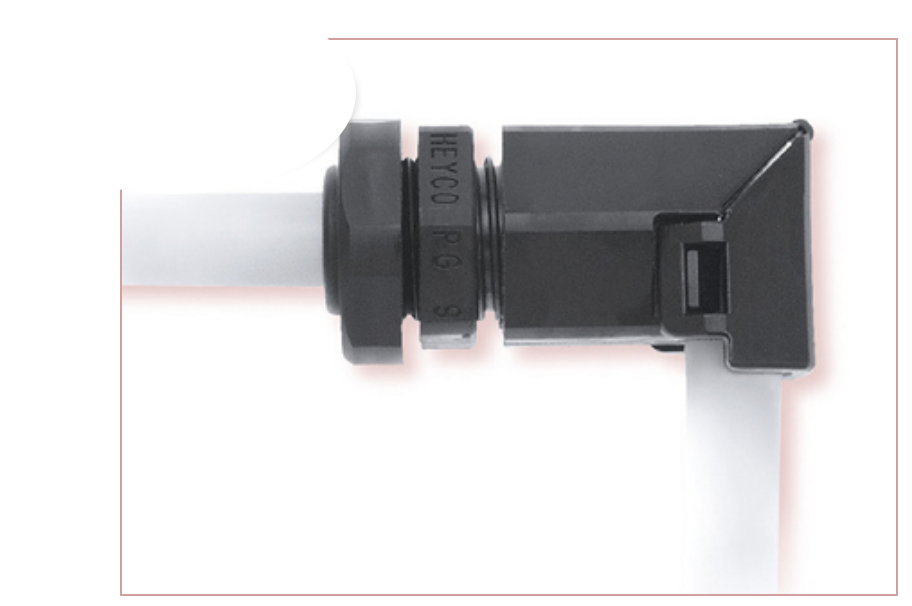

Heyco®-Tite Liquid Tight Cordgrips
Right Angle, Metric Hubs with Integral Sealing Ring
The Ultimate in Liquid Tight Strain Relief Protection
Patented Fold Over Design
Cordgrip is molded in the open position for ease of installation. After cable insertion, the fitting snaps closed, bending the cable without damage. This assembly method saves considerable time and money.
Part design provides liquid tight integrity even in the open position.
Integral Sealing Ring ensures a superior seal at the clearance or threaded mounting hole location, every time.
Widest range of approved cable dimensions.
IP 68 rated.
Approved for NEMA 4, 4X, 6 and 6P applications.
Acme threads on body prevent skipping and speed installation.
All nylon construction with Buna N or TPE sealing gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. (This feature is not assessed by UL.)
We recommend using the fitting with the smallest maximum diameter that will fit your application.
Patented.
CE Low Voltage Directive 73/23/EEC.
VDE Marks License #40010390
Unassembled Nylon Locknuts INCLUDED.
For Heyco Liquid Tight Threaded Plugs, click here.
Consult Heyco for cordgrips molded in other colors.
Displaying 1 - 10 of 12
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
M4448
Nylon Cord Grip
Heyco Black Nylon Right Angle IP 68 Liquid tight Strain Relief Protection for cables dia. range (.065 - .210) and Mou… |
Heyco
Series RA-M-CG-Nylon |
Factory Lead Time: TBD
|
100 - 199$2.15 200 - 299$2.05 300 - 499$1.97 ... |
|
|
M4449
Nylon Cord Grip
Heyco Grey Nylon Right Angle IP 68 Liquid tight Strain Relief Protection for cables dia. range (.065 - .210) and Moun… |
Heyco
Series RA-M-CG-Nylon |
Factory Lead Time: TBD
|
100 - 199$2.15 200 - 299$2.05 300 - 499$1.97 ... |
|
|
M4450
Nylon Cord Grip
Heyco Black Nylon Right Angle IP 68 Liquid tight Strain Relief Protection for cables dia. range (.115 - .250) and Mou… |
Heyco
Series RA-M-CG-Nylon |
Factory Lead Time: TBD
|
100 - 199$2.15 200 - 299$2.05 300 - 499$1.97 ... |
|
|
M4451
Nylon Cord Grip
Heyco Grey Nylon Right Angle IP 68 Liquid tight Strain Relief Protection for cables dia. range (.115 - .250) and Moun… |
Heyco
Series RA-M-CG-Nylon |
Factory Lead Time: TBD
|
100 - 199$2.15 200 - 299$2.05 300 - 499$1.97 ... |
|
|
M4452
Nylon Cord Grip
Heyco Black Nylon Right Angle IP 68 Liquid tight Strain Relief Protection for cables dia. range (.065 - .230) and Mou… |
Heyco
Series RA-M-CG-Nylon |
Factory Lead Time: TBD
|
100 - 199$2.37 200 - 299$2.25 300 - 499$2.16 ... |
|
|
M4453
Nylon Cord Grip
Heyco Grey Nylon Right Angle IP 68 Liquid tight Strain Relief Protection for cables dia. range (.065 - .230) and Moun… |
Heyco
Series RA-M-CG-Nylon |
Factory Lead Time: TBD
|
100 - 199$2.37 200 - 299$2.25 300 - 499$2.16 ... |
|
|
M4454
Nylon Cord Grip
Heyco Black Nylon Right Angle IP 68 Liquid tight Strain Relief Protection for cables dia. range (.105 - .315) and Mou… |
Heyco
Series RA-M-CG-Nylon |
Factory Lead Time: TBD
|
100 - 199$2.37 200 - 299$2.25 300 - 499$2.16 ... |
|
|
M4455
Nylon Cord Grip
Heyco Grey Nylon Right Angle IP 68 Liquid tight Strain Relief Protection for cables dia. range (.105 - .315) and Moun… |
Heyco
Series RA-M-CG-Nylon |
Factory Lead Time: TBD
|
100 - 199$2.37 200 - 299$2.25 300 - 499$2.16 ... |
|
|
M4456
Nylon Cord Grip
Heyco Black Nylon Right Angle IP 68 Liquid tight Strain Relief Protection for cables dia. range (.095 - .290) and Mou… |
Heyco
Series RA-M-CG-Nylon |
Factory Lead Time: TBD
|
100 - 199$2.94 200 - 399$2.83 400 - 999$2.72 ... |
|
|
M4457
Nylon Cord Grip
Heyco Grey Nylon Right Angle IP 68 Liquid tight Strain Relief Protection for cables dia. range (.095 - .290) and Moun… |
Heyco
Series RA-M-CG-Nylon |
Factory Lead Time: TBD
|
100 - 199$2.94 200 - 399$2.83 400 - 999$2.72 ... |
