Features

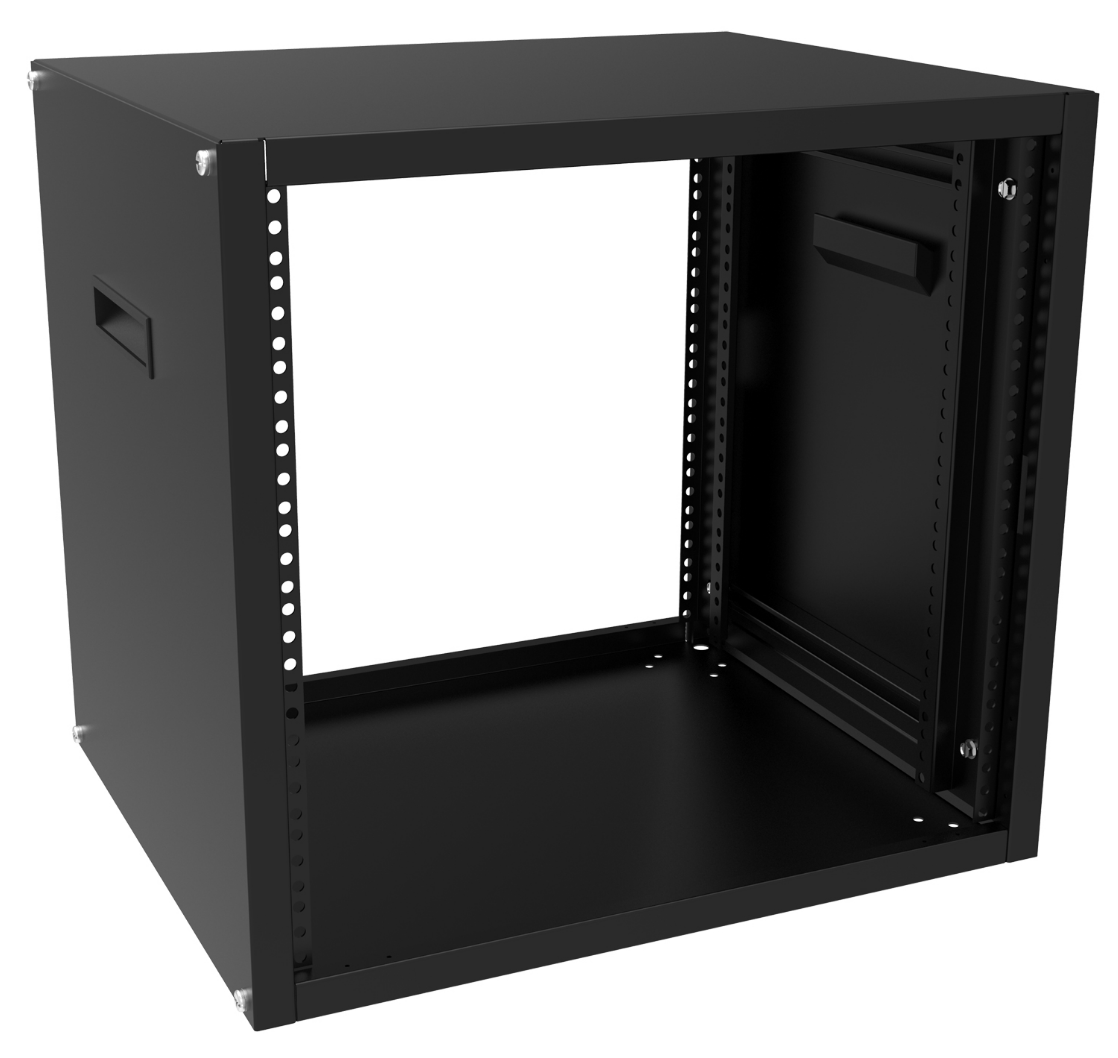

Heavy duty, 16-gauge steel, 19” rack mount - desktop rack cabinet.
Panel rails are infinitely adjustable (front to back), round hole punched for 10-32 clip-nuts to full EIA hole centers.
Includes two pairs of rails (for rear support of heavier equipment or shelves), rubber feet, black ABS plastic handles, a starter pack of 10-32 clip nuts & matching 1421ABK black screws.
Simple assembly using one bolt in each corner to lock the sides to the top and bottom (hardware included).
Front & back lip is .585" (14 mm) so usable depth is reduced by 1.17" (30 mm).
Tested to nearly double the suggested load rating of 800 lbs (363 kg).
Rugged textured powder paint finish.
Knockdown design ships unassembled for easy handling and shipping protection.
RoHS Compliant.
Manufactured in North America.
Displaying 1 - 10 of 80
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
RCHD1908LG1
TABLE TOP RACK
 RoHS Compliant
Hammond 5U SOLID DOOR FOR RCHS Part Number RCHD1908LG1 [UPC 62398004726 ] |
Hammond Mfg.
Series RCH |
Factory Lead Time: 28
|
1 - 1$90.00 2 - 2$88.50 3 - 9$87.10 ... |
|
|
RCHS1901731LG1
TABLE TOP RACK
RoHS Compliant
HEAVY DUTY RACK CASE 17 X 31 (19.5 x 21 x 31.5) Hammond PN RCHS1901731LG1 : UPC [623980047195] |
Hammond Mfg.
Series RCH |
Factory Lead Time: 40
|
1 - 1$482.10 2 - 2$474.40 3 - 9$468.20 ... |
|
|
RCHS1902831LG1
TABLE TOP RACK
RoHS Compliant
HEAVY DUTY RACK CASE 28 X 31 (30 x 21 x 31.5) Hammond PN RCHS1902831LG1 : UPC [623980047256] |
Hammond Mfg.
Series RCH |
Factory Lead Time: 40
|
1 - 1$582.00 2 - 4$575.00 5 - 9$567.00 ... |
|
|
RCHV1900817LG1
TABLE TOP RACK
RoHS Compliant
VENTED RACK CASE 8.75 X 17.5 (10.75 x 21 x 17.5) Hammond PN RCHV1900817LG1 : UPC [623980480015] |
Hammond Mfg.
Series RCH |
Factory Lead Time: 40
|
1 - 1$318.20 2 - 3$313.10 4 - 9$309.00 ... |
|
|
RCHV1902217LG1
TABLE TOP RACK
RoHS Compliant
VENTED RACK CASE 22.5 X 17.5 (24.75 x 21 x 17.5) Hammond PN RCHV1902217LG1 : UPC [623980480138] |
Hammond Mfg.
Series RCH |
Factory Lead Time: 40
|
1 - 1$363.50 2 - 2$357.70 3 - 9$353.00 ... |
|
|
RCHV1902817BK1
TABLE TOP RACK
RoHS Compliant
VENTED RACK CASE 28 X 17.5 (30 x 21 x 17.5) Hammond PN RCHV1902817BK1 : UPC [623980028149] |
Hammond Mfg.
Series RCH |
Factory Lead Time: 40
|
1 - 1$431.20 2 - 2$425.41 3 - 9$419.82 ... |
|
|
RCHV1902817LG1
TABLE TOP RACK
RoHS Compliant
VENTED RACK CASE 28 X 17.5 (30 x 21 x 17.5) Hammond PN RCHV1902817LG1 : UPC [623980480176] |
Hammond Mfg.
Series RCH |
Factory Lead Time: 40
|
1 - 1$431.20 2 - 2$425.41 3 - 9$419.82 ... |
|
|
RCHV1902831LG1
TABLE TOP RACK
RoHS Compliant
Hammond Light Gray 16U 30.00 x 21.00 x 31.50 Knockdown Desktop Cabinet With Vented Sides |
Hammond Mfg.
Series RCH |
Factory Lead Time: 40
|
1 - 1$582.00 2 - 4$575.00 5 - 9$567.00 ... |
|
|
RCHD1910BK1
TABLE TOP RACK
RoHS Compliant
Hammond 6U SOLID DOOR FOR RCHS Part Number RCHD1910BK1 [UPC 62398000550 ] |
Hammond Mfg.
Series RCH |
Factory Lead Time: 28
|
1 - 1$99.90 2 - 2$98.30 3 - 9$96.70 ... |
|
|
RCHS1901724BK1
TABLE TOP RACK
RoHS Compliant
HEAVY DUTY RACK CASE 17.5 X 24 (19.5 x 21 x 24.5) Hammond PN RCHS1901724BK1 : UPC [623980501598] |
Hammond Mfg.
Series RCH |
Factory Lead Time: 40
|
1 - 1$394.30 2 - 2$388.00 3 - 9$382.90 ... |
