PJRL

Application

Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
Ideal in applications with high temperatures or highly corrosive environments.

Standards

UL 508A Type 1, 2, 3, 4, 4X, 12 and 13
CSA Type 1, 2, 3, 4, 4X, 12 and 13
Complies with
NEMA Type 1, 2, 3, 4, 4X, 12, & 13
IEC 60529, IP66

Construction

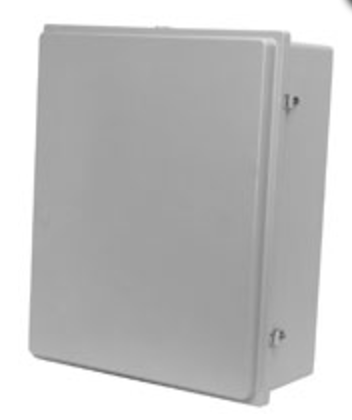

Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
Enhanced UV inhibitors protect against outdoor weathering.
Standard JIC sizes under 18"x16".
Threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included.
Stainless steel draw type "snap latch" door fasteners.
Door fasteners include a provision for padlocking.
Enclosures are available with bonded polycarbonate viewing windows.
Door is supported with a continuous stainless steel hinge.
Captive oil resistant gasket provides a positive seal.
Threaded brass inserts are provided for mounting feet to the rear of the enclosure.
Stainless steel mounting brackets and hardware are provided for mounting to the rear of the enclosure.
Operating temperatures between 130°C and -40°C (266°F to -40°F).
Impact index of 6.78J (5 ft/lb).
For corrosion resistance information, please refer to table in the Technical Information section.


Finish

Fiberglass polyester material has a gray finish.
Optional inner panels are available in white powder coated finished steel or unfinished aluminum, or fiberglass.
