Type 1 Mild Steel Junction Box CHKO Series Hinge Door with Quarter Turn and w/ Knockouts
Application:
Designed for general purpose indoor commercial use as a junction, pull or switch box.
Hinged cover with latch provides easy access during installation and maintenance.
Standards:
UL-50 Type 1
CSA Type 1
Complies with
NEMA Type 1
IEC 60529, IP20
Construction:
Formed and spot welded from 16 or 14 gauge steel depending on size.
Formed steel covers close by use of slotted quarter turn latch.
Full swing door using butt hinges.

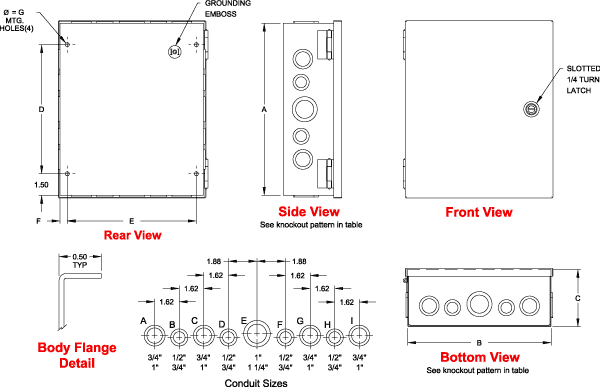

Easily removed knockouts on all 4 sides (see drawings for sizes and locations).
Through holes in back for wall mounting.
Grounding location embossed in body.
Finish:
Enclosure and cover are finished in ANSI 61 gray powder coating.
Displaying 1 - 10 of 27
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
CHKO12104
Enclosures
 RoHS Compliant
N1 Hinge Cover w/KO's - 12 x 10 x 4 - Steel/Gray HINGE COVER W/KO'S 12X10X4 (12 x 10 x 4) Hammond PN CHKO12… |
Hammond Mfg.
Series CHKO |
Total Stock: 150
Drop Ship Quantity: 150
Factory Lead Time: 60
|
1 - 1$29.00 2 - 2$28.50 3 - 9$28.00 ... |
|
|
CHKO12106
Enclosures
RoHS Compliant
N1 Hinge Cover w/KO's - 12 x 10 x 6 - Steel/Gray HINGE COVER W/KO'S 12X10X6 (12 x 10 x 6) Hammond PN CHKO12… |
Hammond Mfg.
Series CHKO |
Total Stock: 21
Drop Ship Quantity: 20
Factory Lead Time: 60
|
1 - 2$35.50 3 - 4$34.90 5 - 9$34.40 ... |
|
|
CHKO18126
Enclosures
RoHS Compliant
N1 Hinge Cover w/KO's - 18 x 12 x 6 - Steel/Gray HINGE COVER W/KO'S 18X12X6 (18 x 12 x 6) Hammond PN CHKO18… |
Hammond Mfg.
Series CHKO |
Total Stock: 57
Drop Ship Quantity: 55
Factory Lead Time: 60
|
1 - 1$48.00 2 - 3$47.20 4 - 9$46.40 ... |
|
|
CHKO864
Enclosures
RoHS Compliant
N1 Hinge Cover w/KO's - 8 x 6 x 4 - Steel/Gray HINGE COVER W/KO'S 8X6X4 (8 x 6 x 4) Hammond PN CHKO864 : UP… |
Hammond Mfg.
Series CHKO |
Total Stock: 127
Drop Ship Quantity: 125
Factory Lead Time: 60
|
1 - 2$14.60 3 - 9$14.30 10 - 14$14.10 ... |
|
|
CHKO10104
Enclosures
RoHS Compliant
N1 Hinge Cover w/KO's - 10 x 10 x 4 - Steel/Gray HINGE COVER W/KO'S 10X10X4 (10 x 10 x 4) Hammond PN CHKO10… |
Hammond Mfg.
Series CHKO |
Total Stock: 5
Factory Lead Time: 30
|
1 - 1$23.00 2 - 3$22.60 4 - 9$22.20 ... |
|
|
CHKO10106
Enclosures
RoHS Compliant
N1 Hinge Cover w/KO's - 10 x 10 x 6 - Steel/Gray HINGE COVER W/KO'S 10X10X6 (10 x 10 x 6) Hammond PN CHKO10… |
Hammond Mfg.
Series CHKO |
Factory Lead Time: 30
|
1 - 1$28.30 2 - 2$27.80 3 - 9$27.30 ... |
|
|
CHKO1084
Enclosures
RoHS Compliant
N1 Hinge Cover w/KO's - 10 x 8 x 4 - Steel/Gray HINGE COVER W/KO'S 10X8X4 (10 x 8 x 4) Hammond PN CHKO1084… |
Hammond Mfg.
Series CHKO |
Total Stock: 1
Factory Lead Time: 60
|
1 - 1$21.00 2 - 3$20.60 4 - 9$20.30 ... |
|
|
CHKO1086
Enclosures
RoHS Compliant
N1 Hinge Cover w/KO's - 10 x 8 x 6 - Steel/Gray HINGE COVER W/KO'S 10X8X6 (10 x 8 x 6) Hammond PN CHKO1086… |
Hammond Mfg.
Series CHKO |
Factory Lead Time: 60
|
1 - 1$24.90 2 - 3$24.50 4 - 9$24.10 ... |
|
|
CHKO12124
Enclosures
RoHS Compliant
N1 Hinge Cover w/KO's - 12 x 12 x 4 - Steel/Gray HINGE COVER W/KO'S 12X12X4 (12 x 12 x 4) Hammond PN CHKO12… |
Hammond Mfg.
Series CHKO |
Total Stock: 2
Factory Lead Time: 30
|
1 - 1$27.90 2 - 2$27.40 3 - 9$27.00 ... |
|
|
CHKO16126
Enclosures
RoHS Compliant
N1 Hinge Cover w/KO's - 16 x 12 x 6 - Steel/Gray HINGE COVER W/KO'S 16X12X6 (16 x 12 x 6) Hammond PN CHKO16… |
Hammond Mfg.
Series CHKO |
Total Stock: 2
Factory Lead Time: 60
|
1 - 1$42.90 2 - 3$42.20 4 - 9$41.50 ... |
CHKO
