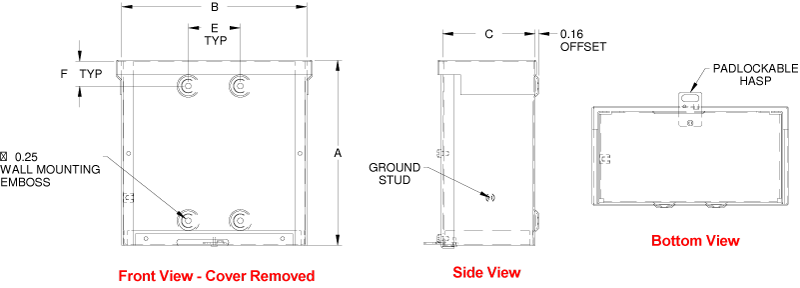

Type 3R Painted Galvanized Steel Junction Box C3R SC NKO Series Lift-Off Cover with Screws without Knockouts
Application:
Designed for use as a wiring/junction box.
Provides protection against rain, sleet, snow and dripping water.
Standards:
UL-50 Type 3R
CSA Type 3R
Complies with:
NEMA Type 3R
IEC 60529, IP24
Construction:
Formed and spot welded from 16 or 14 gauge galvanized steel.
Drip-shield top and seam-free sides, front and back.
Slip-on removable cover fastened with plated steel screws.
Door handles on body type C enclosures.
Embossed mounting holes on back of enclosure.
Padlocking hasp.
No Gasket.
Finish:
Enclosure and cover are finished in ANSI 61 gray powder coating.
Displaying 1 - 10 of 17
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
C3R12126SCNKO
Enclosures
Type 3R Screw Cover no K/O's- 12 x 12 x 6 - Steel/Gray 3R SCREW COVER 12X12X6 NO K/O (12 x 12 x 6) Hammond PN C3… |
Hammond Mfg.
Series C3RSCNKO |
Total Stock: 450
Drop Ship Quantity: 450
Factory Lead Time: 55
|
1 - 1$51.10 2 - 3$50.30 4 - 9$49.50 ... |
|
|
C3R18188SCNKO
Enclosures
 RoHS Compliant
Type 3R Screw Cover no K/O's- 18 x 18 x 8 - Steel/Gray 3R SCREW COVER 18X18X8 NO K/O (18 x 18 x 8) Hammond PN C3… |
Hammond Mfg.
Series C3RSCNKO |
Total Stock: 55
Drop Ship Quantity: 55
Factory Lead Time: 55
|
1 - 1$133.60 2 - 3$129.20 4 - 9$127.20 ... |
|
|
C3R664SCNKO
Enclosures
Type 3R Screw Cover no K/O's- 6 x 6 x 4 - Steel/Gray 3R SCREW COVER 6X6X4 NO K/O (6 x 6 x 4) Hammond PN C3R664SC… |
Hammond Mfg.
Series C3RSCNKO |
Total Stock: 450
Drop Ship Quantity: 450
Factory Lead Time: 55
|
1 - 1$20.20 2 - 4$19.90 5 - 9$19.50 ... |
|
|
C3R884SCNKO
Enclosures
Type 3R Screw Cover no K/O's- 8 x 8 x 4 - Steel/Gray 3R SCREW COVER 8X8X4 NO K/O (8 x 8 x 4) Hammond PN C3R884SC… |
Hammond Mfg.
Series C3RSCNKO |
Total Stock: 225
Drop Ship Quantity: 225
Factory Lead Time: 55
|
1 - 1$28.10 2 - 2$27.60 3 - 9$27.20 ... |
|
|
C3R10104SCNKO
Enclosures
Type 3R Screw Cover no K/O's- 10 x 10 x 4 - Steel/Gray 3R SCREW COVER 10X10X4 NO K/O (10 x 10 x 4) Hammond PN C3… |
Hammond Mfg.
Series C3RSCNKO |
Factory Lead Time: 55
|
1 - 2$34.10 3 - 4$33.50 5 - 9$33.00 ... |
|
|
C3R12124SCNKO
Enclosures
Type 3R Screw Cover no K/O's- 12 x 12 x 4 - Steel/Gray 3R SCREW COVER 12X12X4 NO K/O (12 x 12 x 4) Hammond PN C3… |
Hammond Mfg.
Series C3RSCNKO |
Factory Lead Time: 55
|
1 - 1$42.60 2 - 3$41.90 4 - 9$41.20 ... |
|
|
C3R12128SCNKO
Enclosures
RoHS Compliant
Type 3R Screw Cover no K/O's- 12 x 12 x 8 - Steel/Gray 3R SCREW COVER 12X12X8 NO K/O (12 x 12 x 8) Hammond PN C3… |
Hammond Mfg.
Series C3RSCNKO |
Factory Lead Time: 55
|
1 - 1$64.60 2 - 2$63.50 3 - 4$62.50 ... |
|
|
C3R16126SCNKO
Enclosures
Type 3R Screw Cover no K/O's- 16 x 12 x 6 - Steel/Gray 3R SCREW COVER 16X12X6 NO K/O (16 x 12 x 6) Hammond PN C3… |
Hammond Mfg.
Series C3RSCNKO |
Total Stock: 1
Factory Lead Time: 55
|
1 - 1$73.70 2 - 2$72.40 3 - 3$71.20 ... |
|
|
C3R242410SCNKO
Enclosures
RoHS Compliant
Type 3R Screw Cover no K/O's- 24 x 24 x 10 - Steel/Gray 3R SCREW COVER 24X24X10 NO KO (24 x 24 x 10) Hammond PN… |
Hammond Mfg.
Series C3RSCNKO |
Factory Lead Time: 55
|
1 - 1$237.00 2 - 2$233.20 3 - 4$229.50 ... |
|
|
C3R242412SCNKO
Enclosures
RoHS Compliant
Type 3R Screw Cover no K/O's- 24 x 24 x 12 - Steel/Gray 3R SCREW COVER 24X24X12 NO KO (24 x 24 x 12) Hammond PN… |
Hammond Mfg.
Series C3RSCNKO |
Factory Lead Time: 55
|
1 - 1$218.30 2 - 2$214.80 3 - 4$211.30 ... |
C3RSCNKO
