Hawk Electronics
FiltersC3RESCNKAL

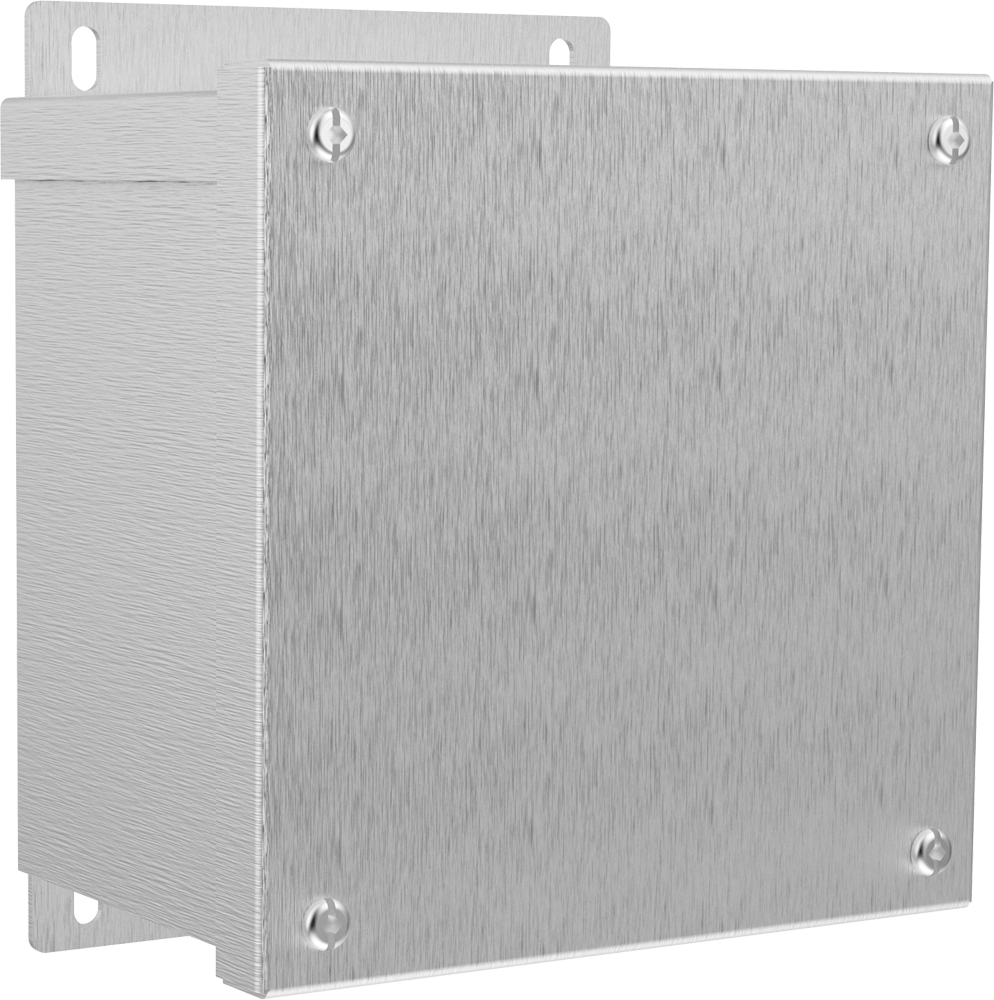

Type 3R Aluminum Junction Box C3RESCNKAL Series Screw Cover and without Knockouts
Application:
Designed for use as a wiring/junction box.
Provides protection against rain, sleet, snow and dripping water.
Standards:
UL-50 Type 3R
CSA Type 3R
Complies with:
NEMA Type 3R
IEC 60529, IP24
Construction:
Formed from 0.08" Type 5052 H-32 aluminum
Drip-shield top and seam-free sides, front and back.
Slip-on removable cover fastened with plated steel screws.
External mounting feet.
Oil resistant gaskets are permanently secured.
A bonding stud is provided on the door and a grounding stud is provided in the box..
Finish:
Enclosure and cover are finished in natural unfinished aluminum.
Displaying 1 - 7 of 7
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
C3R12126ESCNKAL
Enclosures
N3R J Box, Screw Cover no K/O's - 12 x 12 x 6 - Alum N3R JBOX SCREW COVER NO K/O AL (12 x 12 x 6) Hammond PN C3R… |
Hammond Mfg.
Series C3RESCNKAL |
Total Stock: 60
Drop Ship Quantity: 60
Factory Lead Time: 40
|
1 - 1$136.40 2 - 3$132.00 4 - 9$129.90 ... |
|
|
C3R10104ESCNKAL
Enclosures
N3R J Box, Screw Cover no K/O's - 10 x 10 x 4 - Alum N3R JBOX SCREW COVER NO K/O AL (10 x 10 x 4) Hammond PN C3R… |
Hammond Mfg.
Series C3RESCNKAL |
Factory Lead Time: 40
|
1 - 1$90.80 2 - 2$89.30 3 - 9$87.90 ... |
|
|
C3R10106ESCNKAL
Enclosures
N3R J Box, Screw Cover no K/O's - 10 x 10 x 6 - Alum N3R JBOX SCREW COVER NO K/O AL (10 x 10 x 6) Hammond PN C3R… |
Hammond Mfg.
Series C3RESCNKAL |
Factory Lead Time: 40
|
1 - 1$105.70 2 - 2$104.00 3 - 4$102.30 ... |
|
|
C3R12124ESCNKAL
Enclosures
N3R J Box, Screw Cover no K/O's - 12 x 12 x 4 - Alum N3R JBOX SCREW COVER NO K/O AL (12 x 12 x 4) Hammond PN C3R… |
Hammond Mfg.
Series C3RESCNKAL |
Factory Lead Time: 40
|
1 - 1$113.60 2 - 2$111.70 3 - 4$109.90 ... |
|
|
C3R664ESCNKAL
Enclosures
N3R J Box, Screw Cover no K/O's - 6 x 6 x 4 - Alum N3R JBOX SCREW COVER NO K/O AL (6 x 6 x 4) Hammond PN C3R664E… |
Hammond Mfg.
Series C3RESCNKAL |
Factory Lead Time: 40
|
1 - 1$62.90 2 - 2$61.90 3 - 4$60.80 ... |
|
|
C3R884ESCNKAL
Enclosures
N3R J Box, Screw Cover no K/O's - 8 x 8 x 4 - Alum N3R JBOX SCREW COVER NO K/O AL (8 x 8 x 4) Hammond PN C3R884E… |
Hammond Mfg.
Series C3RESCNKAL |
Factory Lead Time: 40
|
1 - 1$74.90 2 - 2$73.70 3 - 3$72.50 ... |
|
|
C3R886ESCNKAL
Enclosures
 RoHS Compliant
N3R J Box, Screw Cover no K/O's - 8 x 8 x 6 - Alum N3R JBOX SCREW COVER NO K/O AL (8 x 8 x 6) Hammond PN C3R886E… |
Hammond Mfg.
Series C3RESCNKAL |
Factory Lead Time: 40
|
1 - 1$82.60 2 - 3$81.20 4 - 9$79.90 ... |
C3RESCNKAL
