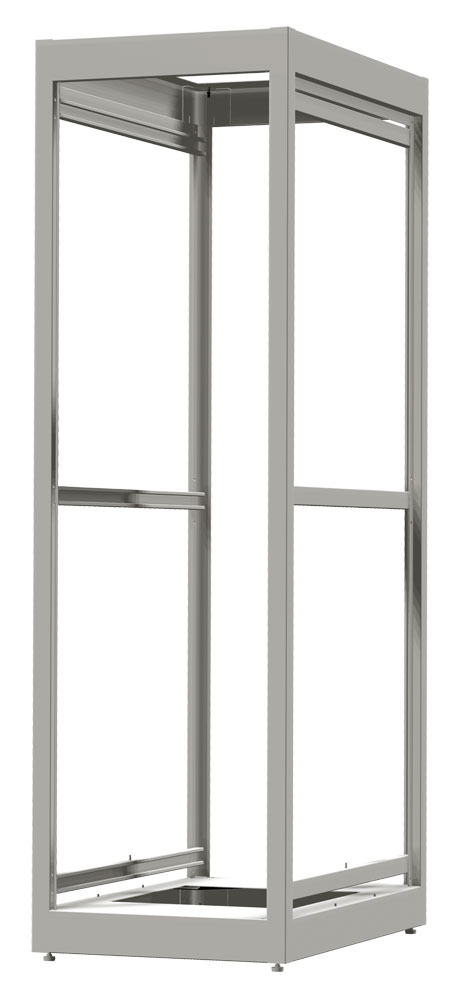

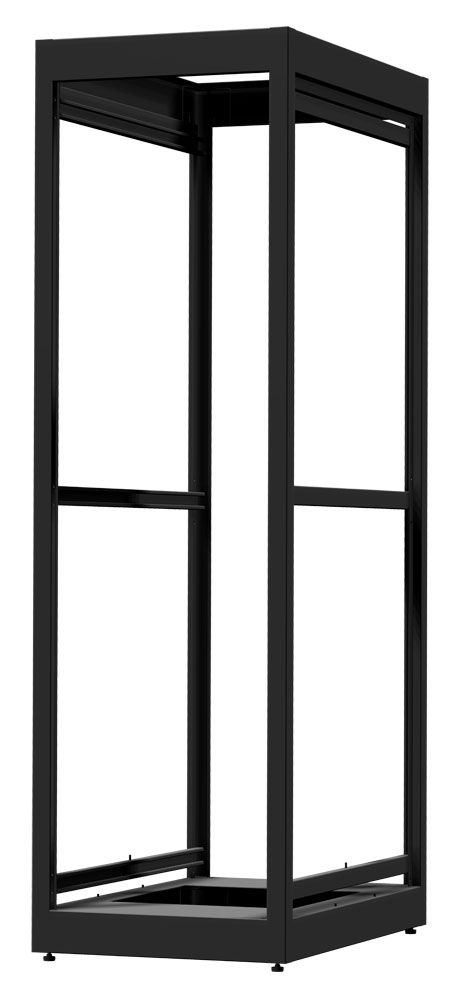

Modular Equipment Storage Rack Cabinet C2 Series 1,500 lbs Weight Capacity
Features:
Constructed in:
14-gauge steel (body)
16-gauge steel (doors and side panels)
10-gauge steel (tapped mounting rails)
12-gauge steel (square hole mounting rails)
Optional EIA-310-D compliant 10-32 tapped or square hole punched rails with permanent rack unit labels.
Optional tops panel include
Solid
Vented
Fan cutouts
Pre-installed fan(s) capable of up to 550 CFM
Specifications:
Mounting rails have infinite-depth setting using C-channel struts.
Zinc-plated mounting rails provide superior surface areas for equipment grounding and are sold in pairs.
Four (4) leveling feet are included with support for optional casters.
Grounding studs provided on frame as well as side panels and doors.
Finished in textured black powder paint. Additional colours available upon request.
Tested to nearly double the suggested load rating of 1,500 lbs (680 kg).
TAA Compliant.
RoHS Compliant.
Manufactured in North America.
Displaying 1 - 10 of 97
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
C2F193536LG1
Floor Standing Rack
 RoHS Compliant
20U 19W 36D C2 Frame (Light Gray) FRAME CONT II 19X35X36 (42.31 x 23 x 36) Hammond PN C2F193536LG1 : UPC [62398012088… |
Hammond Mfg.
Series C2 |
Total Stock: 7
Drop Ship Quantity: 7
Factory Lead Time: 40
|
1 - 1$703.00 2 - 3$693.00 4 - 9$684.00 ... |
|
|
C2F194223BK1
Floor Standing Rack
RoHS Compliant
24U 19W 23D C2 Frame (Black) FRAME C0NT II 19X42X23 (49.31 x 23 x 23.63) Hammond PN C2F194223BK1 : UPC [623980329574]… |
Hammond Mfg.
Series C2 |
Total Stock: 4
Drop Ship Quantity: 4
Factory Lead Time: 40
|
1 - 1$641.00 2 - 3$633.00 4 - 9$625.00 ... |
|
|
C2F194236LG1
Floor Standing Rack
RoHS Compliant
24U 19W 36D C2 Frame (Light Gray) FRAME CONT II 19X42X36 (49.31 x 23 x 36) Hammond PN C2F194236LG1 : UPC [62398012094… |
Hammond Mfg.
Series C2 |
Total Stock: 2
Drop Ship Quantity: 2
Factory Lead Time: 40
|
1 - 1$723.00 2 - 3$713.00 4 - 9$704.00 ... |
|
|
C2F194923LG1
Floor Standing Rack
RoHS Compliant
28U 19W 23D C2 Frame (Light Gray) FRAME CONT II 19X49X23 (56.31 x 23 x 23.63) Hammond PN C2F194923LG1 : UPC [62398012… |
Hammond Mfg.
Series C2 |
Total Stock: 1
Drop Ship Quantity: 1
Factory Lead Time: 40
|
1 - 1$648.00 2 - 3$639.00 4 - 9$631.00 ... |
|
|
C2F194936LG1
Floor Standing Rack
RoHS Compliant
28U 19W 36D C2 Frame (Light Gray) FRAME CONT II 19X49X36 (56.31 x 23 x 36) Hammond PN C2F194936LG1 : UPC [62398012100… |
Hammond Mfg.
Series C2 |
Factory Lead Time: 40
|
1 - 1$729.00 2 - 3$719.00 4 - 9$710.00 ... |
|
|
C2F195636BK1
Floor Standing Rack
RoHS Compliant
32U 19W 36D C2 Frame (Black) FRAME CONT II 19X56X36 (63.31 x 23 x 36) Hammond PN C2F195636BK1 : UPC [623980559179]… |
Hammond Mfg.
Series C2 |
Total Stock: 4
Drop Ship Quantity: 4
Factory Lead Time: 40
|
1 - 1$744.00 2 - 3$734.00 4 - 9$724.00 ... |
|
|
C2F196336LG1
Floor Standing Rack
RoHS Compliant
36U 19W 36D C2 Frame (Light Gray) FRAME CONT II 19X63X36 (70.31 x 23 x 36) Hammond PN C2F196336LG1 : UPC [62398012110… |
Hammond Mfg.
Series C2 |
Factory Lead Time: 40
|
1 - 1$756.00 2 - 3$746.00 4 - 9$736.00 ... |
|
|
C2F197823LG1
Floor Standing Rack
RoHS Compliant
45U 19W 23D C2 Frame (Light Gray) FRAME CONT II 19X78X23 (86.06 x 23 x 23.63) Hammond PN C2F197823LG1 : UPC [62398012… |
Hammond Mfg.
Series C2 |
Total Stock: 20
Drop Ship Quantity: 20
Factory Lead Time: 40
|
1 - 1$756.00 2 - 3$746.00 4 - 9$736.00 ... |
|
|
C2F198523LG1
Floor Standing Rack
RoHS Compliant
49U 19W 23D C2 Frame (Light Gray) FRAME CONT II 19X85X23 (93.06 x 23 x 23.63) Hammond PN C2F198523LG1 : UPC [62398012… |
Hammond Mfg.
Series C2 |
Factory Lead Time: 40
|
1 - 1$744.00 2 - 3$734.00 4 - 9$724.00 ... |
|
|
C2F198531LG1
Floor Standing Rack
RoHS Compliant
49U 19W 31.5D C2 Frame (Light Gray) FRAME CONT II 19X85X31 (93.06 x 23 x 31.5) Hammond PN C2F198531LG1 : UPC [6239801… |
Hammond Mfg.
Series C2 |
Factory Lead Time: 40
|
1 - 1$806.00 2 - 3$796.00 4 - 9$786.00 ... |
