BUSBAR

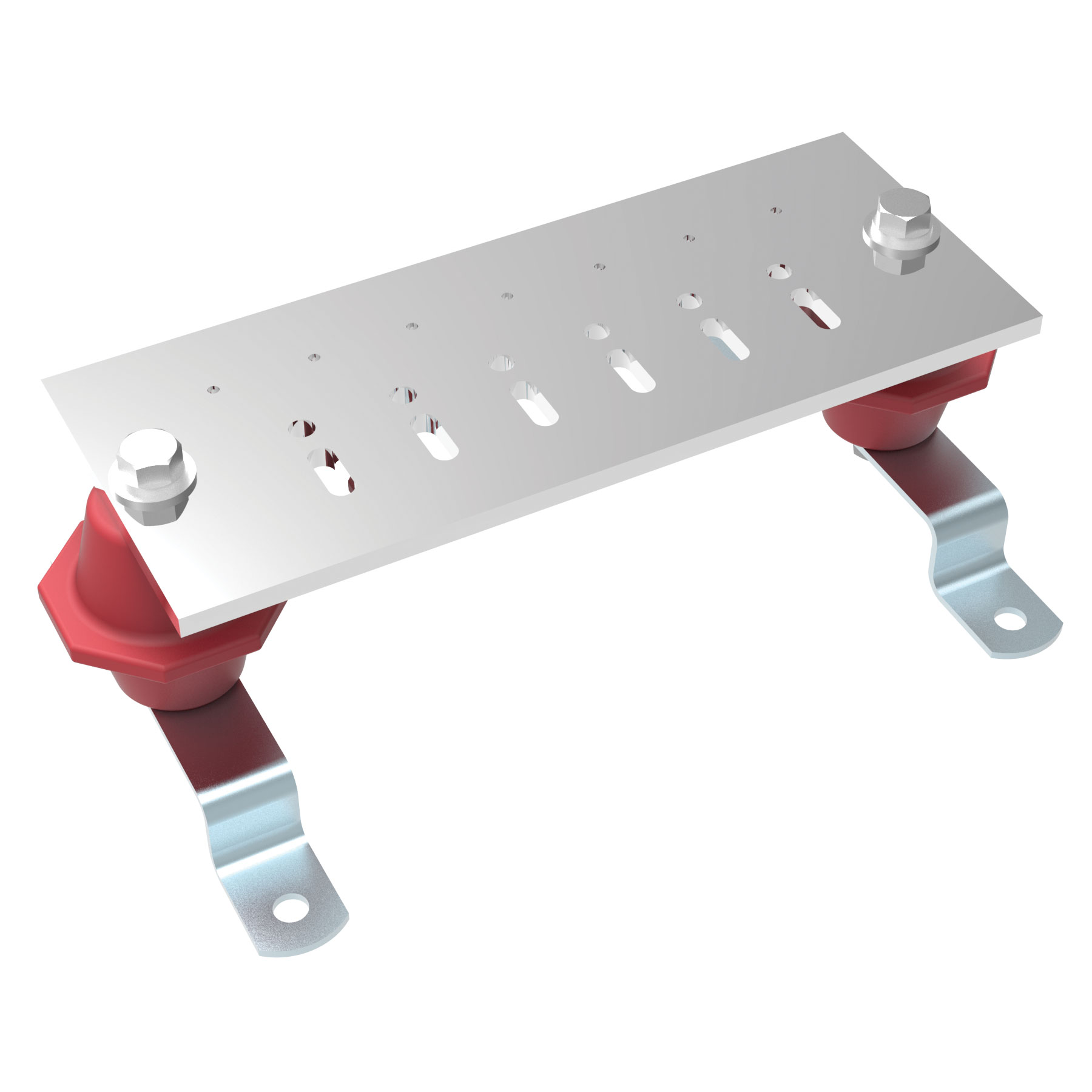

Grounding Bar and Bus Bars BUSBAR Series

Features:
Electro Tin Plated Copper Bus Bar, 100/300 micro inches of plating.
The thin tin coating acts as a shield, inhibiting copper oxidization.
Copper oxidization causes a poor electrical contact which then gets hot and increases the copper oxidization rate.
Oxides, because of their poor conductivity, also cause arcing at the electrical contacts, eroding the copper.
3200 Volt rated Glass-Reinforced Thermoset Polyester insulators
180+ seconds of arc resistance
UL 94 V0 flame resistance
Mounting bracket holes 0.375” diameter
Busbar available in 2” or 4” widths
10” in length
0.25” in thickness
Hardware:
¼-20 x 0.75” length stainless steel Phillips machine screw (12 pcs.)
¼ stainless steel lock washer (12 pcs.)
¼-20 stainless steel hex nut (12 pcs.)
