Class 2 Energy Limiting Small Box Mount BA-C-D-E Series
Features:
Used in chimes, door bells, security systems, decorative lighting, furnaces, humidifiers, appliances, vending machines, intercom system type applications.
Rugged, low noise, cool running design, indoor use only.
Stripped wire input (primary) leads, screw terminal/quick fit tab terminal output (secondary).

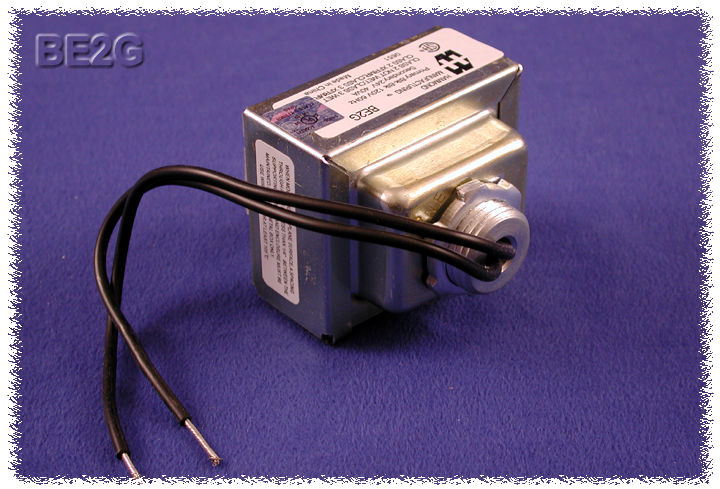

Nipple locknut mount for box installation, complete with locknut and mounting bracket (as shown below).
Input leads are black, on 240V models 240V lead is red. All models are 60 Hz.- inherently limited - no fuses or circuit breakers.
UL listed #E184371 - EXCEPT for part numbers BE2F & BE7G.
CSA certified (209651)
Displaying 1 - 10 of 16
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|

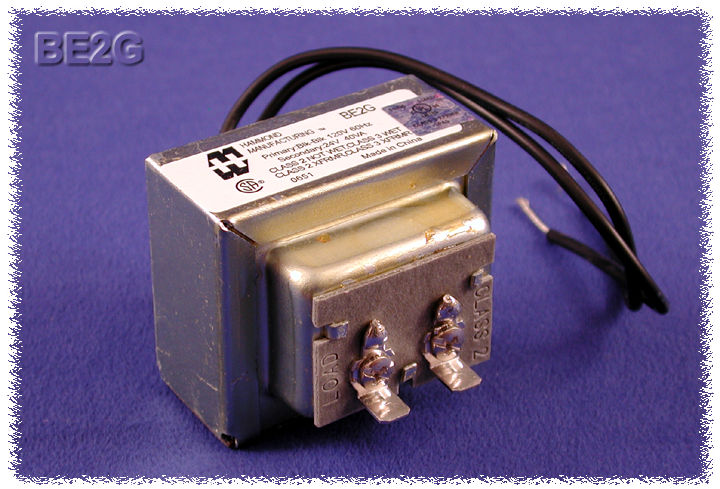

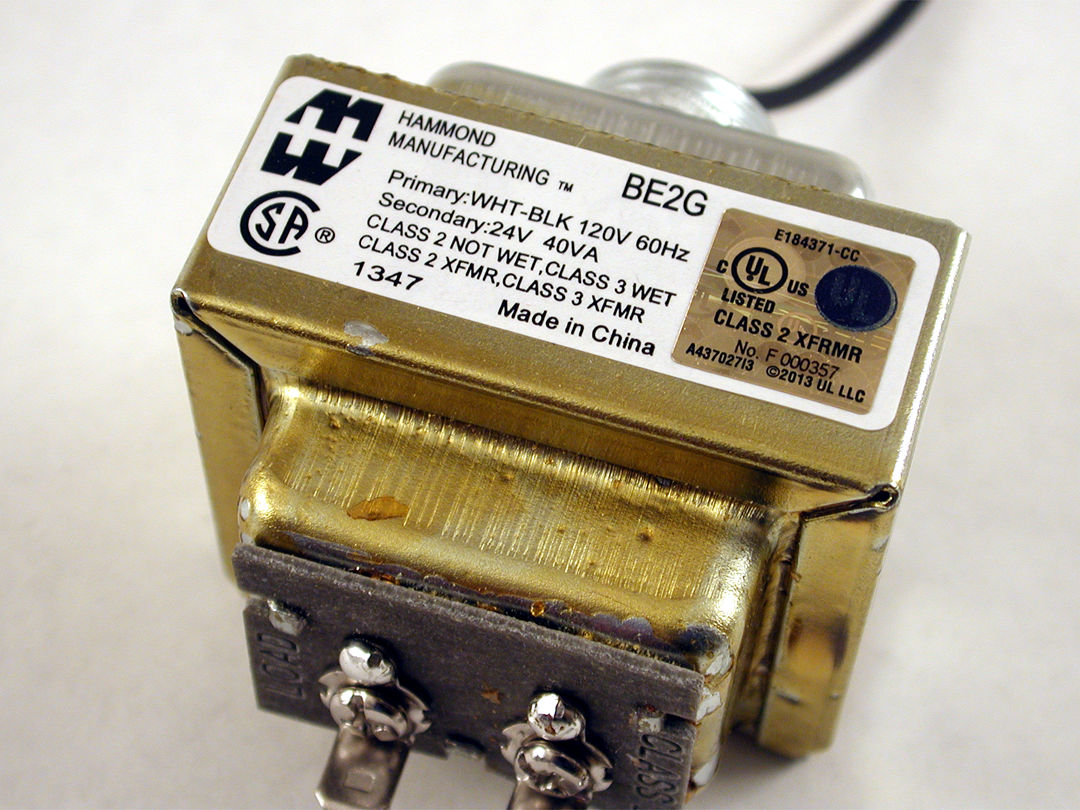

BE2G
Enclosures
 RoHS Compliant
Transformer, Class 2 energy limiting, box mount, 40VA, 120V input, 24V ouput CLASS 2 TX 40VA 120V Hammond PN BE2G : U… |
Hammond Mfg.
Series BA-C-D-E |
Total Stock: 4020
Drop Ship Quantity: 4000
Factory Lead Time: 15
|
1 - 1$17.80 2 - 4$17.50 5 - 9$17.20 ... |
|
|
BA2DA
Enclosures
RoHS Compliant
Transformer, Class 2 energy limiting, box mount, 5VA, 120V input, 10V ouput CLASS 2 TX 5VA 120V Hammond PN BA2DA : UP… |
Hammond Mfg.
Series BA-C-D-E |
Factory Lead Time: 15
|
1 - 2$15.80 3 - 9$15.50 10 - 14$15.20 ... |
|
|
BC2G
Enclosures
RoHS Compliant
Transformer, Class 2 energy limiting, box mount, 12VA, 120V input, 24V ouput CLASS 2 TX 12VA 120V Hammond PN BC2G : U… |
Hammond Mfg.
Series BA-C-D-E |
Factory Lead Time: 15
|
1 - 2$15.80 3 - 9$15.50 10 - 14$15.20 ... |
|
|
BD2E
Enclosures
RoHS Compliant
Transformer, Class 2 energy limiting, box mount, 20VA, 120V input, 12V ouput CLASS 2 TX 20VA 120V Hammond PN BD2E : U… |
Hammond Mfg.
Series BA-C-D-E |
Factory Lead Time: 15
|
1 - 2$16.30 3 - 9$16.00 10 - 14$15.70 ... |
|
|
BD2F
Enclosures
RoHS Compliant
Transformer, Class 2 energy limiting, box mount, 20VA, 120V input, 16V ouput CLASS 2 TX 20VA 120V Hammond PN BD2F : U… |
Hammond Mfg.
Series BA-C-D-E |
Factory Lead Time: 15
|
1 - 2$16.30 3 - 9$16.00 10 - 14$15.70 ... |
|
|
BD2FF
Enclosures
RoHS Compliant
Transformer, Class 2 energy limiting, box mount, 20VA, 120V input, 18V ouput CLASS 2 TX 20VA 120V Hammond PN BD2FF :… |
Hammond Mfg.
Series BA-C-D-E |
Factory Lead Time: 15
|
1 - 2$16.30 3 - 9$16.00 10 - 14$15.70 ... |
|
|
BD2G
Enclosures
RoHS Compliant
Transformer, Class 2 energy limiting, box mount, 20VA, 120V input, 24V ouput CLASS 2 TX 20VA 120V Hammond PN BD2G : U… |
Hammond Mfg.
Series BA-C-D-E |
Factory Lead Time: 15
|
1 - 2$16.30 3 - 9$16.00 10 - 14$15.70 ... |
|
|
BD5F
Enclosures
RoHS Compliant
Transformer, Class 2 energy limiting, box mount, 20VA, 240V input, 16V ouput CLASS 2 TX 20VA 240V Hammond PN BD5F : U… |
Hammond Mfg.
Series BA-C-D-E |
Factory Lead Time: 15
|
1 - 2$16.30 3 - 9$16.00 10 - 14$15.70 ... |
|
|
BD5G
Enclosures
RoHS Compliant
Transformer, Class 2 energy limiting, box mount, 20VA, 240V input, 24V ouput CLASS 2 TX 20VA 240V Hammond PN BD5G : U… |
Hammond Mfg.
Series BA-C-D-E |
Factory Lead Time: 15
|
1 - 2$16.30 3 - 9$16.00 10 - 14$15.70 ... |
|
|
BE5DG
Enclosures
RoHS Compliant
Transformer, Class 2 energy limiting, box mount, 40VA, 208/240V input, 24V ouput CLASS 2 TX 40VA 208/240V Hammond PN… |
Hammond Mfg.
Series BA-C-D-E |
Factory Lead Time: 15
|
1 - 1$17.80 2 - 4$17.50 5 - 9$17.20 ... |
