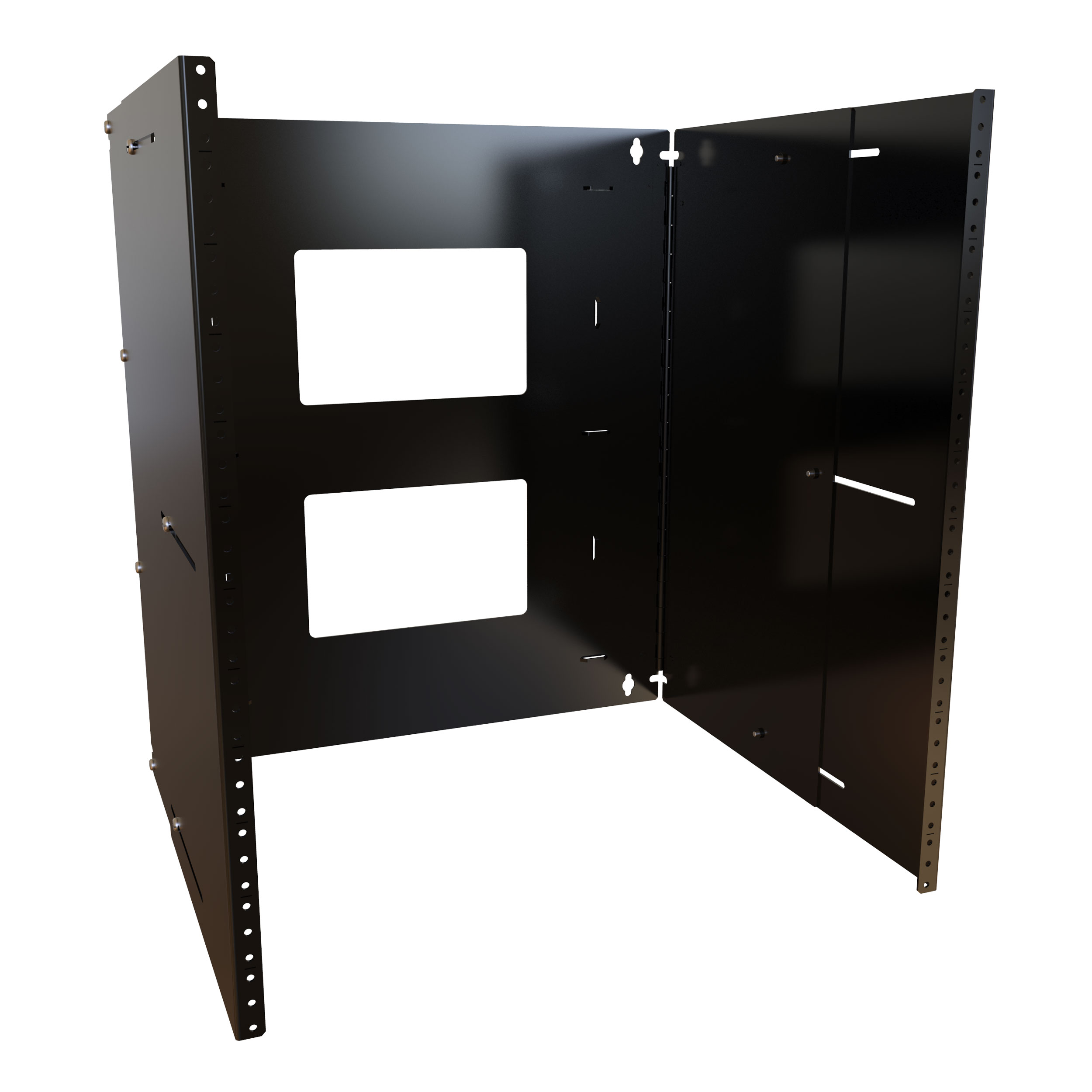

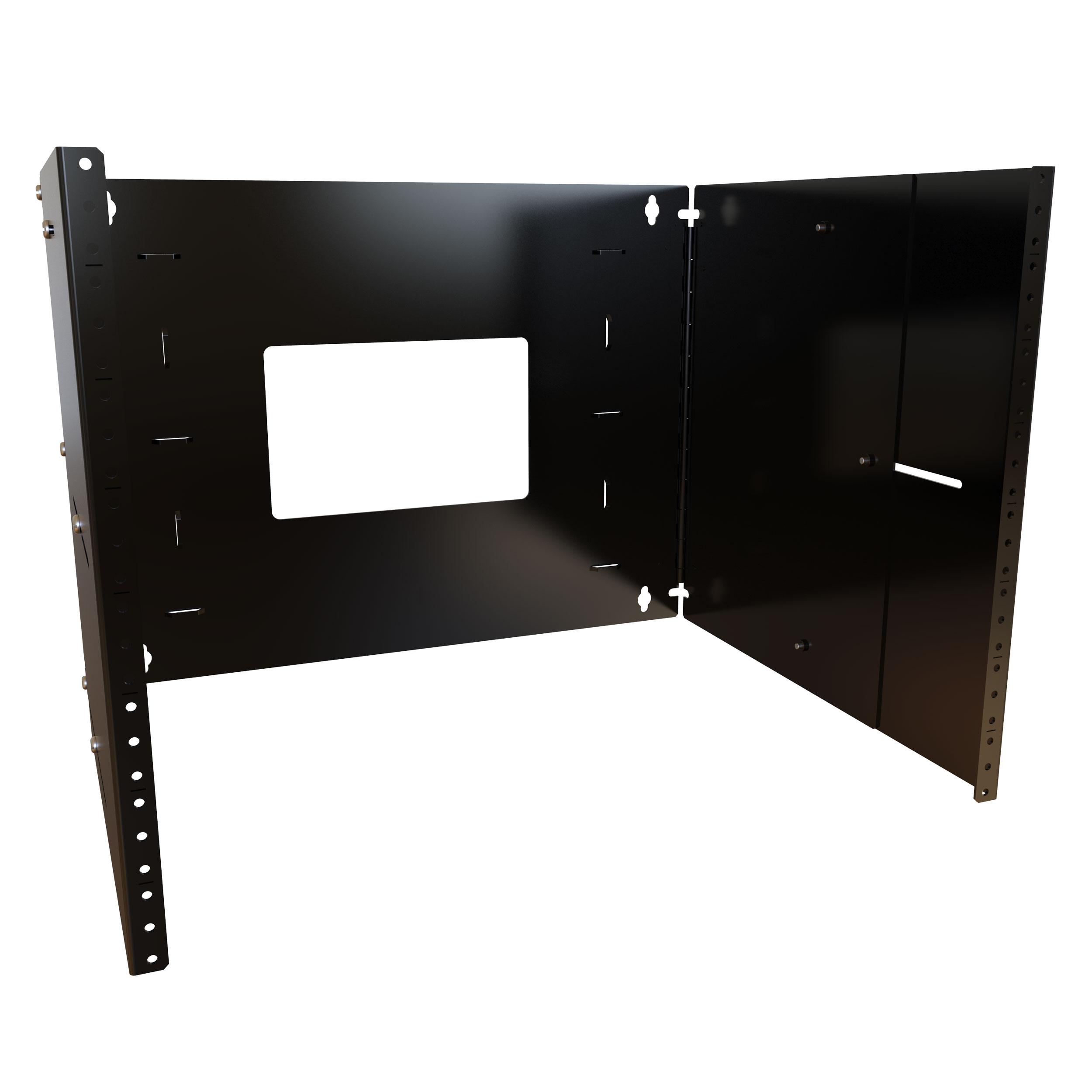

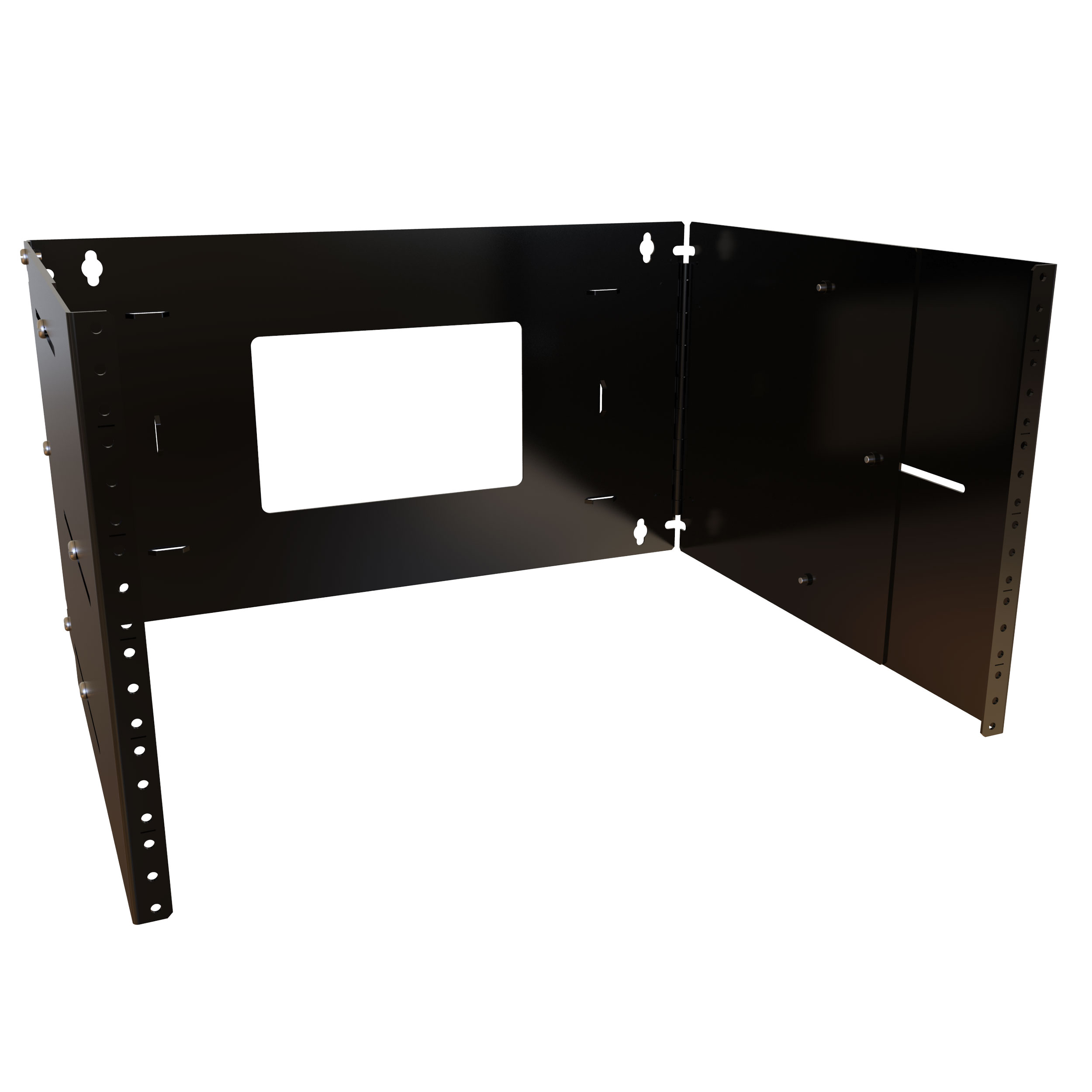

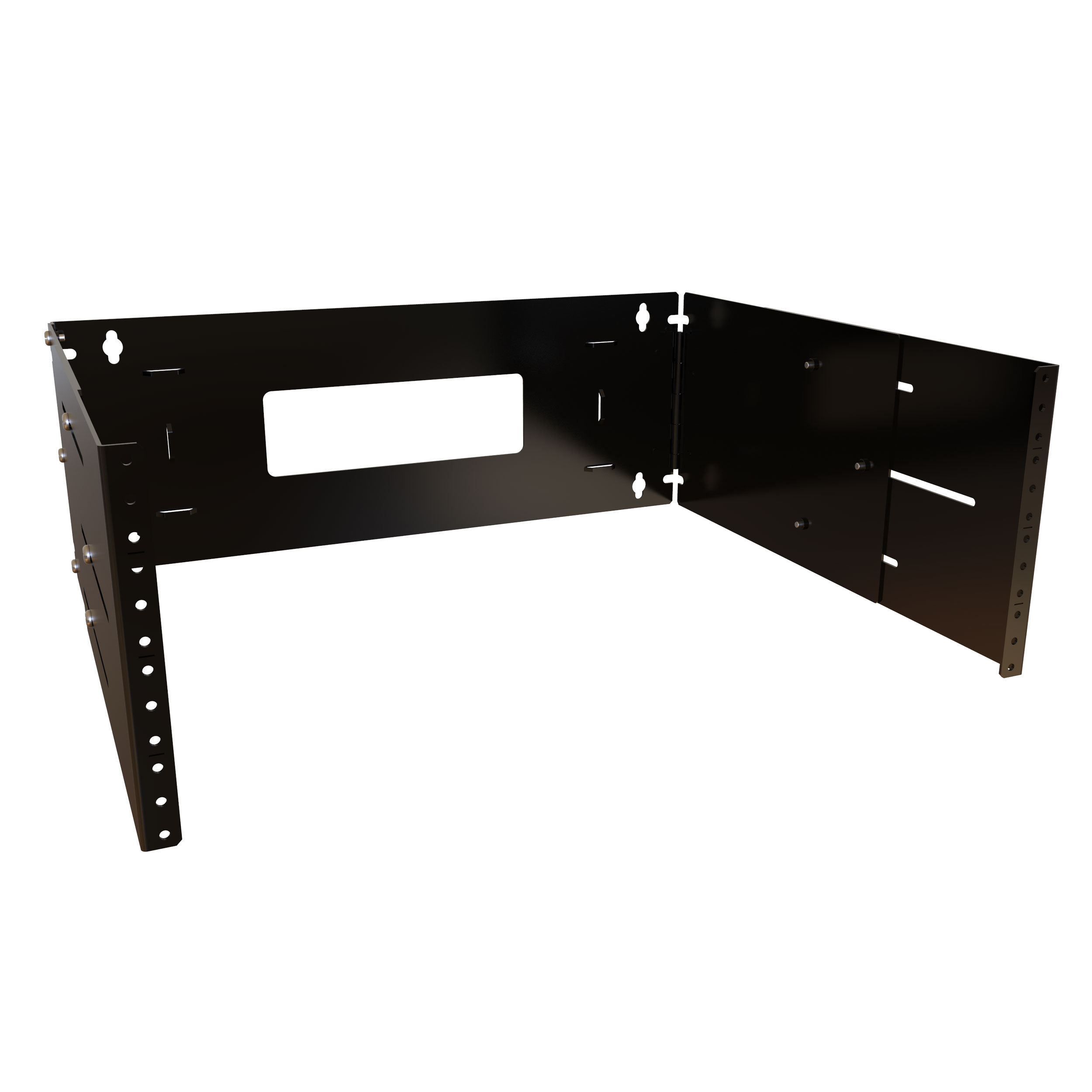

Adjustable Depth Hinged Wall Rack APB Series Rugged 100 lbs Weight Capacity
Features:
Constructed in 14-gauge steel.
EIA-310-D compliant 10-32 tapped rails with 19” mounting.
Hinged for easy rear access.
Rack unit indicators help with installation.
Adjustable depth from 12” to 18” using slots for easy set-up and adjusting.
Rear cable access with multiple tie points for cable management.
Finished in smooth black powder paint.
Knockdown design ships unassembled for easy handling and shipping protection.
Includes starter pack of mounting hardware. (25-pack of 10-32 screws)
Tested to nearly double the suggested load rating of 100 lbs (45.36 kg).
Swing weight is rated for 1.5 lbs (0.68 kg) per rack unit, evenly distributed.
TAA Compliant.
RoHS Compliant.
Manufactured in North America.
Similar Products:
If you are looking for a taller or deeper option, consider the HWMR Series.
If you are looking for an APB with a shelf included, consider the APBS Series.
Displaying 1 - 4 of 4
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
APB19010BK1
Enclosures
 RoHS Compliant
Adjustable Wall Bracket - 6U w/ depth 12" - 18" 6U ADJUSTABLE DEPTH WALL RACK (10.48 x 19.25 x 18) Hammond… |
Hammond Mfg.
Series APB |
Factory Lead Time: 35
|
1 - 1$105.60 2 - 2$103.90 3 - 4$102.20 ... |
|
|
APB19014BK1
Enclosures
RoHS Compliant
Adjustable Wall Bracket - 8U w/ depth 12" - 18" 8U ADJUSTABLE DEPTH WALL RACK (13.98 x 19.25 x 18) Hammond… |
Hammond Mfg.
Series APB |
Factory Lead Time: 40
|
1 - 1$128.30 2 - 2$126.20 3 - 4$124.10 ... |
|
|
APB19021BK1
Enclosures
RoHS Compliant
Adjustable Wall Bracket - 12U w/ depth 12" - 18" 12U ADJUSTABLE DEPTH WALL RACK (20.98 x 19.25 x 18) Hammon… |
Hammond Mfg.
Series APB |
Factory Lead Time: 35
|
1 - 1$163.10 2 - 3$160.50 4 - 9$157.90 ... |
|
|
APB19007BK1
Enclosures
RoHS Compliant
Adjustable Wall Bracket - 4U w/ depth 12" - 18" 4U ADJUSTABLE DEPTH WALL RACK (6.98 x 19.25 x 18) Hammond P… |
Hammond Mfg.
Series APB |
Factory Lead Time: 35
|
1 - 1$89.30 2 - 2$87.80 3 - 9$86.40 ... |
