Hawk Electronics
Filters800A

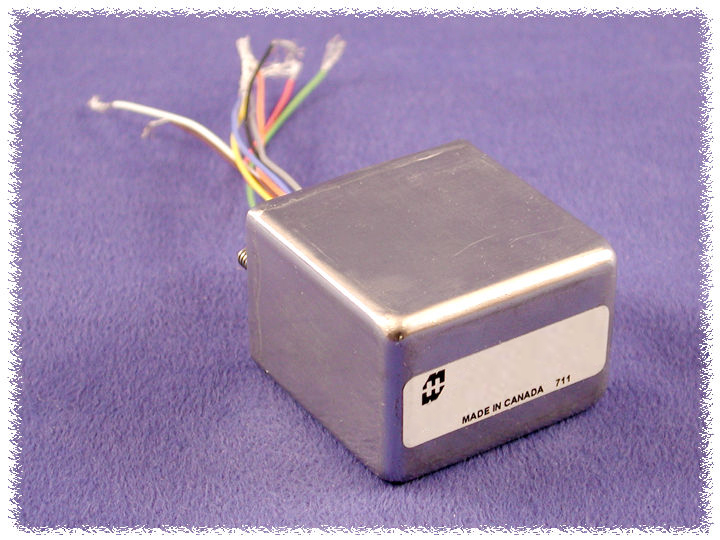

Audio Broadcast Quality 800A Series
Features:
Deep-drawn steel case with tin plated finish, with two convenient 6-32 mounting studs with hardware.
Includes wire leads (minimum length of 4").
Frequency response +/- 0.5 db max. from 50 Hz. to 15 Khz.
Insertion loss of apx. 1 db.
Maximum power level +15 dbm. (except 841A, 842A & 844A which are +20 dbm) with specified characteristics, or higher levels with reduced low frequency performance.
Electrostatic shield between pri. & sec.
Humbucking construction

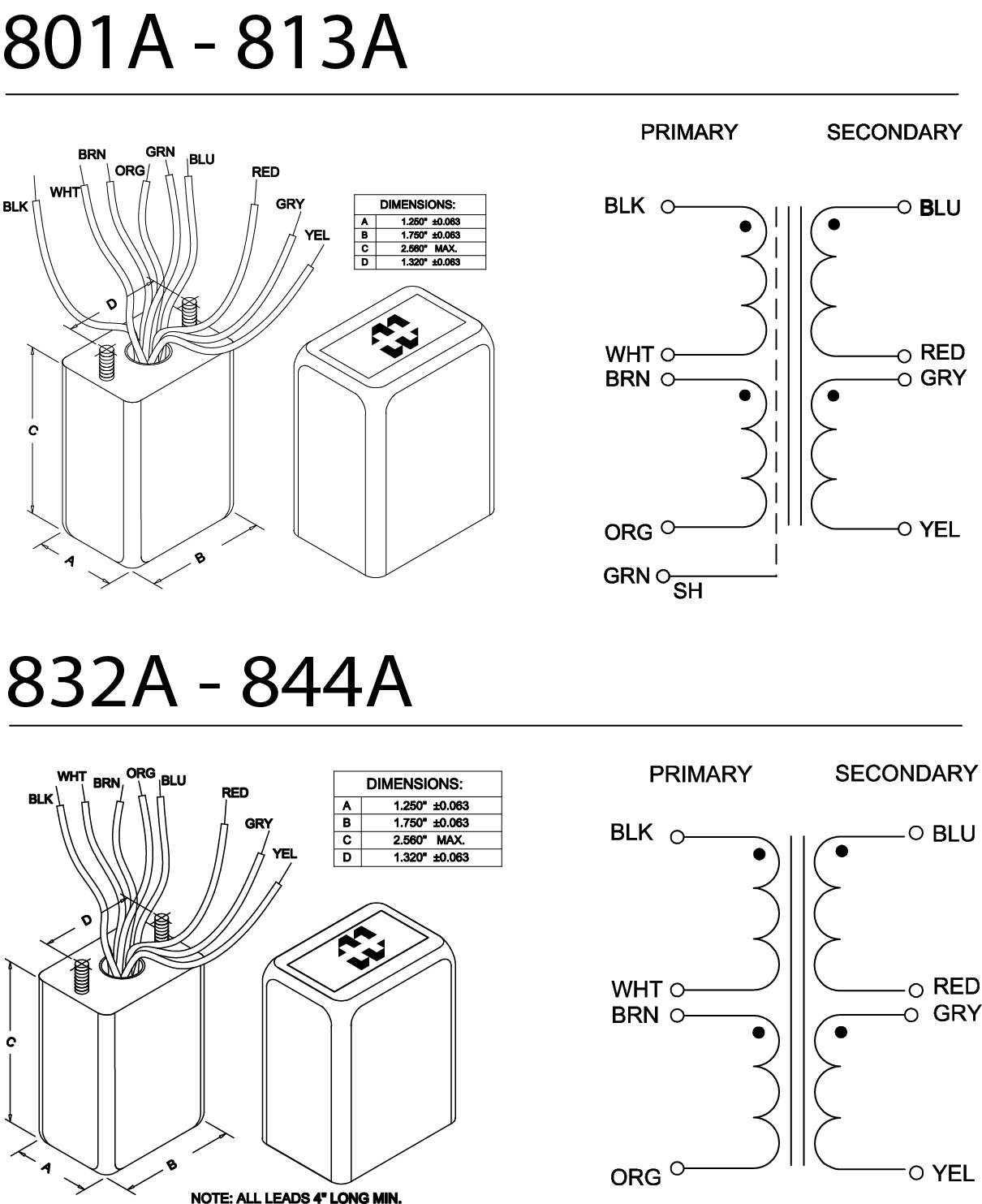

Balanced split windings on pri. & sec. for circuit versatility. Primary may be used as a secondary and vice versa for impedance matching.
Overall dimensions 1.75" (44.5 mm) wide x 1.25" (31.8 mm) deep x 2.56" (65 mm) high max.
Shipping weight 0.5 lb. (0.2 kg)
Displaying 1 - 10 of 15
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
801A
Audio Transformers
 RoHS Compliant
Audio transformer, broadcast, Isolating, Matching, 800A Series AUDIO TX B-CAST W/ LEADS Hammond PN 801A : UPC [623980… |
Hammond Mfg.
Series 800A |
Factory Lead Time: 20
|
1 - 1$115.30 2 - 2$113.40 3 - 4$111.50 ... |
|
|
804A
Audio Transformers
RoHS Compliant
Audio transformer, broadcast, Isolating, Matching, Hybrid, 800A Series AUDIO TX B-CAST W/ LEADS Hammond PN 804A : UPC… |
Hammond Mfg.
Series 800A |
Factory Lead Time: 20
|
1 - 1$115.30 2 - 2$113.40 3 - 4$111.50 ... |
|
|
806A
Audio Transformers
RoHS Compliant
Audio transformer, broadcast, Dynamic MIC or Voice Coil to Grid, 800A Series AUDIO TX B-CAST W/ LEADS Hammond PN 806A… |
Hammond Mfg.
Series 800A |
Factory Lead Time: 20
|
1 - 1$115.30 2 - 2$113.40 3 - 4$111.50 ... |
|
|
808A
Audio Transformers
RoHS Compliant
Audio transformer, broadcast, MIC or Mixer to Single or P.P. Grid, 800A Series AUDIO TX B-CAST W/ LEADS Hammond PN 80… |
Hammond Mfg.
Series 800A |
Factory Lead Time: 20
|
1 - 1$115.30 2 - 2$113.40 3 - 4$111.50 ... |
|
|
809A
Audio Transformers
RoHS Compliant
Audio transformer, broadcast, MIC to Mixer to Base, 800A Series AUDIO TX B-CAST W/ LEADS Hammond PN 809A : UPC [62398… |
Hammond Mfg.
Series 800A |
Factory Lead Time: 20
|
1 - 1$115.30 2 - 2$113.40 3 - 4$111.50 ... |
|
|
813A
Audio Transformers
RoHS Compliant
Audio transformer, broadcast, Line or 150 ohm MIC to Base, 800A Series AUDIO TX B-CAST W/ LEADS Hammond PN 813A : UPC… |
Hammond Mfg.
Series 800A |
Factory Lead Time: 20
|
1 - 1$115.30 2 - 2$113.40 3 - 4$111.50 ... |
|
|
834A
Audio Transformers
RoHS Compliant
Audio transformer, broadcast, Interstage (ratio 1:4), 800A Series AUDIO TX B-CAST W/ LEADS Hammond PN 834A : UPC [623… |
Hammond Mfg.
Series 800A |
Factory Lead Time: 20
|
1 - 1$115.30 2 - 2$113.40 3 - 4$111.50 ... |
|
|
835A
Audio Transformers
RoHS Compliant
Audio transformer, broadcast, Interstage (ratio 1:1), 800A Series AUDIO TX B-CAST W/ LEADS Hammond PN 835A : UPC [623… |
Hammond Mfg.
Series 800A |
Factory Lead Time: 20
|
1 - 1$115.30 2 - 2$113.40 3 - 4$111.50 ... |
|
|
841A
Audio Transformers
RoHS Compliant
Audio transformer, broadcast, P.P. Plates to Line, 800A Series AUDIO TX B-CAST W/ LEADS Hammond PN 841A : UPC [623980… |
Hammond Mfg.
Series 800A |
Factory Lead Time: 20
|
1 - 1$115.30 2 - 2$113.40 3 - 4$111.50 ... |
|
|
844A
Audio Transformers
RoHS Compliant
Audio transformer, broadcast, P.P. Plates to Line, 800A Series AUDIO TX B-CAST W/ LEADS Hammond PN 844A : UPC [623980… |
Hammond Mfg.
Series 800A |
Factory Lead Time: 20
|
1 - 1$115.30 2 - 2$113.40 3 - 4$111.50 ... |
800A
