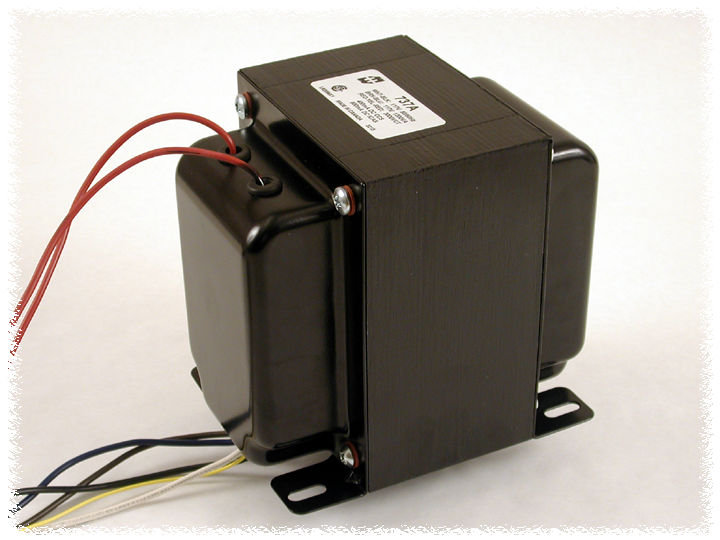

High Voltage (Plate) 700 Series 115 V or 117/234 V Primary
Features:
Two versions available:
Primary 115 VAC, 50/60 Hz. or
Primary 117/234 VAC, 50/60 Hz.
At 2,000 VAC and above, secondary leads are through rubber bushings (figure B).
Units can be run full wave bridge or full wave C.T.
V.A. is a C.C.S. rating
Current ratings are CCS (Continuous Commercial Service) & ICAS ratings (Intermittent Commercial or Amateur Service).
Enclosed, 4 hole chassis mount.
Minimum 6" long leads.
Class A insulation (105 degrees C).
Hi-Pot test at a minimum of twice secondary voltage
Conservative designs - CSA certified (209651).
For other H.V. combinations check out our Peter W. Dahl series as well.
Notes:
VA rating specified is CCS (Continuous Commercial Service)
ICAS ratings (Intermittent Commercial or Amateur Service)
115VAC only models - Input Black & Black
Dual Primary (117/230VAC) models - 117VAC input: connect Blue to Black and Brown to White.
234VAC input: connect Brown to Black - input is Blue & White
Displaying 1 - 10 of 32
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
722
Enclosures
 RoHS Compliant
Transformer, high voltage, 720VA, 115 VAC to 1,250V C.T. @ 575ma., 700 series 115V 50/60Hz 1250VCT 625VA Hammond PN 7… |
Hammond Mfg.
Series 700 |
Factory Lead Time: 20
|
1 - 1$424.90 2 - 2$418.10 3 - 9$412.60 ... |
|
|
732
Enclosures
RoHS Compliant
Transformer, high voltage, 500VA, 115 VAC to 2,500V C.T. @ 200ma., 700 series 115V 50/60Hz 2500VCT 500VA Hammond PN 7… |
Hammond Mfg.
Series 700 |
Factory Lead Time: 20
|
1 - 1$463.50 2 - 2$456.10 3 - 9$450.20 ... |
|
|
733
Enclosures
RoHS Compliant
Transformer, high voltage, 750VA, 115 VAC to 2,500V C.T. @ 300ma., 700 series 115V 50/60Hz 2500VCT 750VA Hammond PN 7… |
Hammond Mfg.
Series 700 |
Factory Lead Time: 20
|
1 - 1$485.60 2 - 2$477.90 3 - 9$471.60 ... |
|
|
737
Enclosures
RoHS Compliant
Transformer, high voltage, 1200VA, 115 VAC to 3,000V C.T. @ 400ma., 700 series 115V 50/60Hz 3000VCT 1200VA Hammond PN… |
Hammond Mfg.
Series 700 |
Factory Lead Time: 20
|
1 - 1$556.00 2 - 4$548.00 5 - 9$541.00 ... |
|
|
718A
Enclosures
RoHS Compliant
Transformer, high voltage, 235VA, 117/234 VAC to 1,250V C.T. @ 200ma., 700 series 117/234V 50/60Hz 1250VCT Hammond PN… |
Hammond Mfg.
Series 700 |
Factory Lead Time: 20
|
1 - 1$131.50 2 - 3$127.20 4 - 9$125.20 ... |
|
|
720
Enclosures
RoHS Compliant
Transformer, high voltage, 370VA, 115 VAC to 1,250V C.T. @ 300ma., 700 series 115V 50/60Hz 1250VCT 370VA Hammond PN 7… |
Hammond Mfg.
Series 700 |
Factory Lead Time: 20
|
1 - 1$137.70 2 - 3$133.30 4 - 9$131.10 ... |
|
|
722A
Enclosures
RoHS Compliant
Transformer, high voltage, 720VA, 117/234 VAC to 1,250V C.T. @ 575ma., 700 series 117/234V 50/60Hz 1250VCT Hammond PN… |
Hammond Mfg.
Series 700 |
Factory Lead Time: 20
|
1 - 1$449.40 2 - 2$442.20 3 - 9$436.40 ... |
|
|
724
Enclosures
RoHS Compliant
Transformer, high voltage, 345VA, 115 VAC to 1,500V C.T. @ 226ma., 700 series 115V 50/60Hz 1500VCT 345VA Hammond PN 7… |
Hammond Mfg.
Series 700 |
Factory Lead Time: 20
|
1 - 1$129.70 2 - 2$127.60 3 - 4$125.50 ... |
|
|
726
Enclosures
RoHS Compliant
Transformer, high voltage, 312VA, 115 VAC to 1,780V C.T. @ 202ma., 700 series 115V 50/60Hz 1780VCT 312VA Hammond PN 7… |
Hammond Mfg.
Series 700 |
Factory Lead Time: 20
|
1 - 1$129.70 2 - 2$127.60 3 - 4$125.50 ... |
|
|
726A
Enclosures
RoHS Compliant
Transformer, high voltage, 312VA, 117/234 VAC to 1,780V C.T. @ 202ma., 700 series 117/234V 50/60Hz 1780VCT Hammond PN… |
Hammond Mfg.
Series 700 |
Factory Lead Time: 20
|
1 - 1$134.30 2 - 3$130.00 4 - 9$127.90 ... |
