518

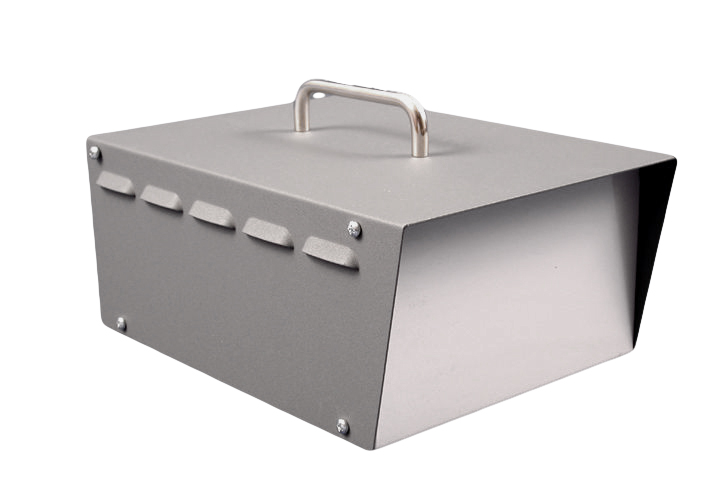

Module Instrument 518 Series

Key Features:
18 ga. steel base and top - for extra strength (front & back panel will not push in from mounted buttons, controls, connectors , etc.).
Sides include one horizontal row of louvers for ventilation.

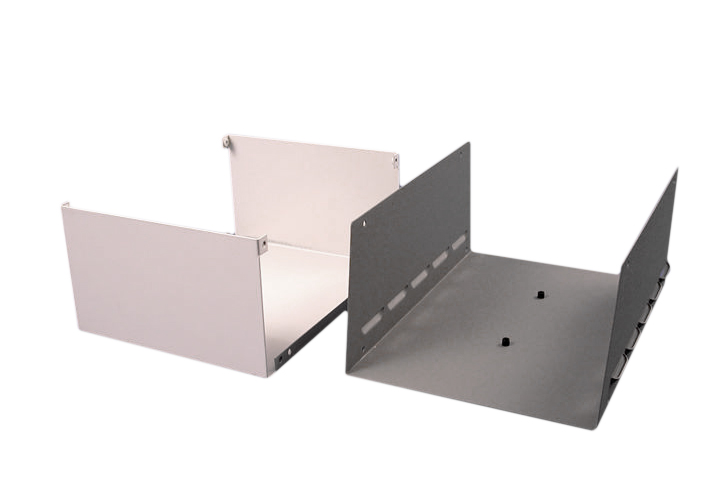

Choice of sloping or vertical sides by reversing case.
Includes our handle (part number 1427C1) & holes in the top for mounting. Also includes plastic plugs if handle is not desired (see features area below).
Sold pre-assembled with a two tone grey powder coat finish. Top is dark satin gray. Bottom, front & back is smooth light grey).
Comes with four self adhesive rubber feet and required hardware.

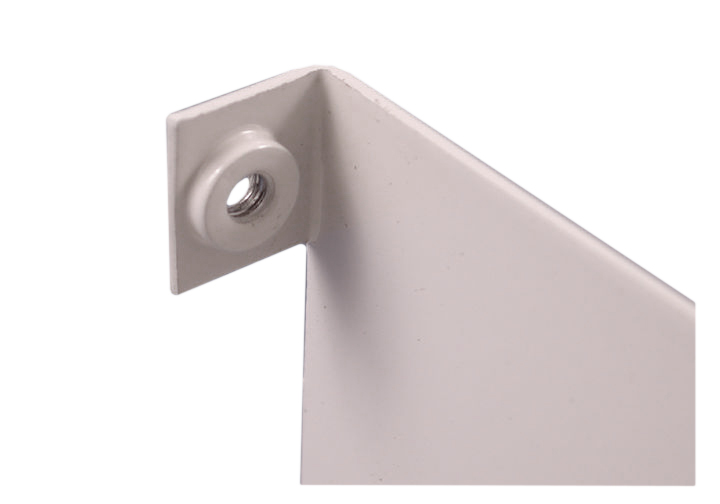

Assembled with 8 machine screws into weld-nuts for repetitive assembly & disassembly.
Replacement screws SC19482-50 (Pkg. of 50, Philips head - #6 X 1/4” self tapping screws).
