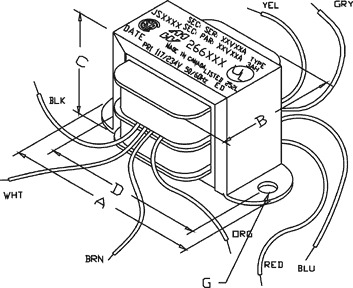

Low Voltage/Filament, Dual Primary & Secondary 266 Series Open Style, Chassis Mount - 117/234 V Primary
Features:
Primary 117/234 VAC, 50/60 Hz.
All units have dual secondaries except 266LA25 (C.T. secondary only). If you only require a single primary & secondary check out our more economical 166 Series.
Secondaries can be used as; a center tapped secondary, parallel connected or used individually (except 266LA25).
Units are designed for use with all windings engaged.
Open style.
Minimum 6" long leads.
Dual bobbin design - no electrostatic shield required.
We use Class B insulation (130 degrees, C) for extra protection - UL listed as a Class A (105 degree, C) design
Hi-Pot test of 2,000V RMS.
UL listed (# E207860) Type 3AH
CSA certified (209651)
Displaying 1 - 10 of 75
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
266F48
Transformers
 RoHS Compliant
Power transformer, chassis mount, 12VA, 48V @ 0.25A or 24V @ 0.5A, 266 Series POWER TX 48 V , 0.250 A Hammond PN 2… |
Hammond Mfg.
Series 266 |
Total Stock: 25
Drop Ship Quantity: 25
Factory Lead Time: 20
|
1 - 1$27.60 2 - 2$27.10 3 - 9$26.70 ... |
|
|
266C24
Transformers
RoHS Compliant
Power transformer, chassis mount, 2VA, 24V @ 0.085A or 12V @ 0.17A, 266 Series POWER TX 2VA 24/12V Hammond PN 266C24… |
Hammond Mfg.
Series 266 |
Total Stock: 2
Factory Lead Time: 20
|
1 - 1$17.70 2 - 4$17.40 5 - 9$17.10 ... |
|
|
266EA24
Transformers
RoHS Compliant
Power transformer, chassis mount, 4.8VA, 24V @ 0.2A or 12V @ 0.4A, 266 Series POWER TX 4.8VA 24/12V Hammond PN 266EA2… |
Hammond Mfg.
Series 266 |
Factory Lead Time: 20
|
1 - 1$19.90 2 - 4$19.60 5 - 9$19.20 ... |
|
|
266F12
Transformers
RoHS Compliant
Power transformer, chassis mount, 3.78VA, 12.6V @ 0.3A or 6.3V @ 0.6A, 266 Series POWER TX 3.78VA 12.6/6.3V Hammond P… |
Hammond Mfg.
Series 266 |
Total Stock: 4
Factory Lead Time: 15
|
1 - 2$13.40 3 - 9$13.20 10 - 14$13.00 ... |
|
|
266F12B
Transformers
RoHS Compliant
Power transformer, chassis mount, 3.6VA, 12V @ 0.3A or 6V @ 0.6A, 266 Series POWER TX 3.6VA 12V@0.3 Hammond PN 266F12… |
Hammond Mfg.
Series 266 |
Factory Lead Time: 20
|
1 - 1$16.60 2 - 4$16.30 5 - 9$16.00 ... |
|
|
266F12C
Transformers
RoHS Compliant
Power transformer, chassis mount, 4.2VA, 12V @ 0.35A or 6V @ 0.7A, 266 Series POWER TX 4.2VA 12.6/6.3V Hammond PN 266… |
Hammond Mfg.
Series 266 |
Factory Lead Time: 20
|
1 - 1$19.90 2 - 4$19.60 5 - 9$19.20 ... |
|
|
266F20
Transformers
RoHS Compliant
Power transformer, chassis mount, 6VA, 20V @ 0.3A or 10V @ 0.6A, 266 Series POWER TX 6VA 20/10V Hammond PN 266F20 : U… |
Hammond Mfg.
Series 266 |
Factory Lead Time: 20
|
1 - 2$34.80 3 - 4$34.30 5 - 9$33.70 ... |
|
|
266F24
Transformers
RoHS Compliant
Power transformer, chassis mount, 7.2VA, 24V @ 0.3A or 12V @ 0.6A, 266 Series POWER TX 7.2VA 24/12V Hammond PN 266F24… |
Hammond Mfg.
Series 266 |
Factory Lead Time: 20
|
1 - 2$34.80 3 - 4$34.30 5 - 9$33.70 ... |
|
|
266F6
Transformers
RoHS Compliant
Power transformer, chassis mount, 1.89VA, 6.3V @ 0.3A or 3.15V @ 0.6A, 266 Series POWER TX 6.3V , 1.89 VA Hammond PN… |
Hammond Mfg.
Series 266 |
Factory Lead Time: 20
|
1 - 2$32.60 3 - 4$32.10 5 - 9$31.60 ... |
|
|
266G12
Transformers
RoHS Compliant
Power transformer, chassis mount, 6.3VA, 12.6V @ 0.5A or 6.3V @ 1A, 266 Series POWER TX 12.6V , 6.3VA Hammond PN 266G… |
Hammond Mfg.
Series 266 |
Factory Lead Time: 20
|
1 - 2$34.80 3 - 4$34.30 5 - 9$33.70 ... |
