Filters265

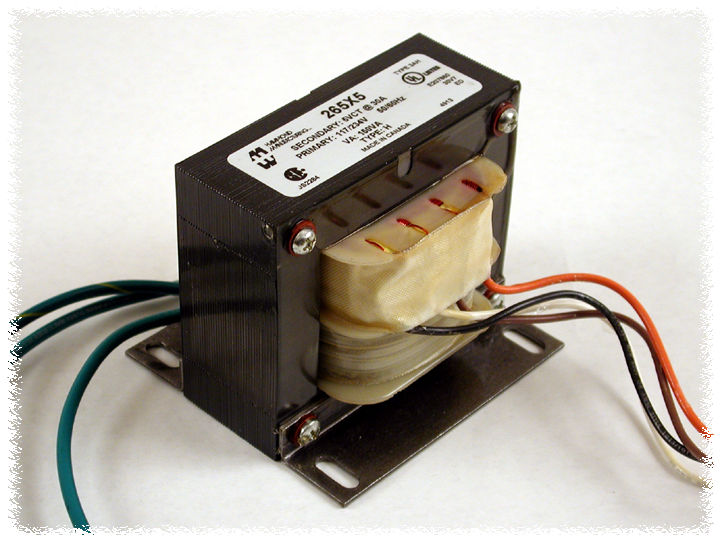

Low Voltage, Filament High Current, Chassis Mount 265 Series 117/234 V Primary
Features:
117/234 VAC - 50/60 Hz. dual primary

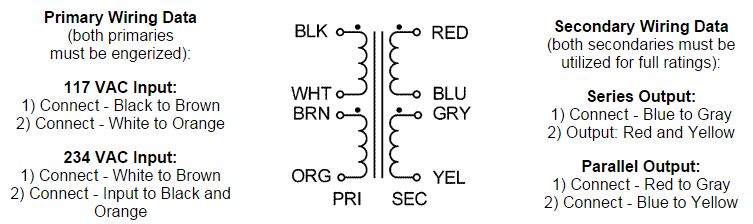

Secondaries are either center tapped (C.T.) or dual secondaries (see tables below) for added versatility.
Open style, 4 hole frame chassis mount.
Minimum 6" long leads or copper tabs with holes.
Dual bobbin design - no electrostatic shield required.
Class B insulation (130 degrees, C).
Hi-Pot test of 2,000V RMS.
UL listed (# E207860) Type 3AH
CSA certified (# LR209651).
Displaying 1 - 10 of 13
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
265J234
Transformers
 RoHS Compliant
Transformer, low voltage filament high current, chassis mount, 250VA, 265 series ISOLATION 117/234V IN/OUT250VA Hammo… |
Hammond Mfg.
Series 265 |
Total Stock: 1
Factory Lead Time: 20
|
1 - 1$120.60 2 - 2$118.60 3 - 4$116.70 ... |
|
|
265K234
Transformers
RoHS Compliant
Transformer, low voltage filament high current, chassis mount, 350VA, 265 series ISOLATION 117/234V IN/OUT350VA Hammo… |
Hammond Mfg.
Series 265 |
Factory Lead Time: 20
|
1 - 1$134.60 2 - 3$130.20 4 - 9$128.10 ... |
|
|
265L234
Transformers
RoHS Compliant
Transformer, low voltage filament high current, chassis mount, 450VA, 265 series ISOLATION 117/234V IN/OUT450VA Hammo… |
Hammond Mfg.
Series 265 |
Factory Lead Time: 20
|
1 - 1$150.30 2 - 3$145.40 4 - 9$143.10 ... |
|
|
265S24
Transformers
RoHS Compliant
Transformer, low voltage filament high current, chassis mount, 240VA, 265 series 117/234V S.24VCT 10A P.12V 20A Hammo… |
Hammond Mfg.
Series 265 |
Factory Lead Time: 20
|
1 - 1$122.30 2 - 2$120.30 3 - 4$118.40 ... |
|
|
265U10
Transformers
RoHS Compliant
Transformer, low voltage filament high current, chassis mount, 175VA, 265 series 117/234V 10VCT 17.5A 175VA Hammond… |
Hammond Mfg.
Series 265 |
Factory Lead Time: 20
|
1 - 1$104.90 2 - 2$103.10 3 - 9$101.50 ... |
|
|
265U24
Transformers
RoHS Compliant
Transformer, low voltage filament high current, chassis mount, 360VA, 265 series 117/234V S.24VCT 15A P.12V 30A Hammo… |
Hammond Mfg.
Series 265 |
Factory Lead Time: 20
|
1 - 1$146.80 2 - 3$142.00 4 - 9$139.80 ... |
|
|
265U6
Transformers
RoHS Compliant
Transformer, low voltage filament high current, chassis mount, 101VA, 265 series 117/234V 6.3VCT 16A 100.8VA Hammond… |
Hammond Mfg.
Series 265 |
Factory Lead Time: 20
|
1 - 1$87.40 2 - 3$85.90 4 - 9$84.60 ... |
|
|
265V24
Transformers
RoHS Compliant
Transformer, low voltage filament high current, chassis mount, 480VA, 265 series 117/234V S.24VCT 20A P.12V 40A Hammo… |
Hammond Mfg.
Series 265 |
Factory Lead Time: 20
|
1 - 1$158.10 2 - 3$155.60 4 - 9$153.10 ... |
|
|
265V6
Transformers
RoHS Compliant
Transformer, low voltage filament high current, chassis mount, 126VA, 265 series 117/234V 6.3VCT 20A 126VA Hammond PN… |
Hammond Mfg.
Series 265 |
Factory Lead Time: 20
|
1 - 1$96.10 2 - 2$94.50 3 - 9$93.00 ... |
|
|
265X5
Transformers
RoHS Compliant
Transformer, low voltage filament high current, chassis mount, 150VA, 265 series 117/234V 5 VCT 30A 150VA Hammond PN… |
Hammond Mfg.
Series 265 |
Factory Lead Time: 20
|
1 - 1$82.20 2 - 3$80.80 4 - 9$79.50 ... |
