Hawk Electronics
Filters261-262
Plate & Filament or Bias 261-262 Series 115 V Primary
Features:
Primary 115 VAC, 60 Hz. (Except 261D6 & 261GE6 which are 115/230 50/60 Hz.)
Designed for small power or bias supplies, test equipment, preamps etc.
Models 261C6, 261D6, 261E6, and 261G6 can also be used with full wave C.T. rectifiers.
Economical , two hole, channel bracket, chassis mount.
Minimum 5" long leads.
Convenient 6.3 or 12.6 volt filament/auxiliary winding.
Displaying 1 - 10 of 17
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
261C6
Transformers
 RoHS Compliant
Transformer, plate & filament or bias, 17.5VA, 250V C.T. @ 45 ma, 261 series POWER TX Hammond PN 261C6 : UPC [623… |
Hammond Mfg.
Series 261-262 |
Total Stock: 5
Factory Lead Time: 20
|
1 - 1$49.80 2 - 3$49.00 4 - 9$48.20 ... |
|
|

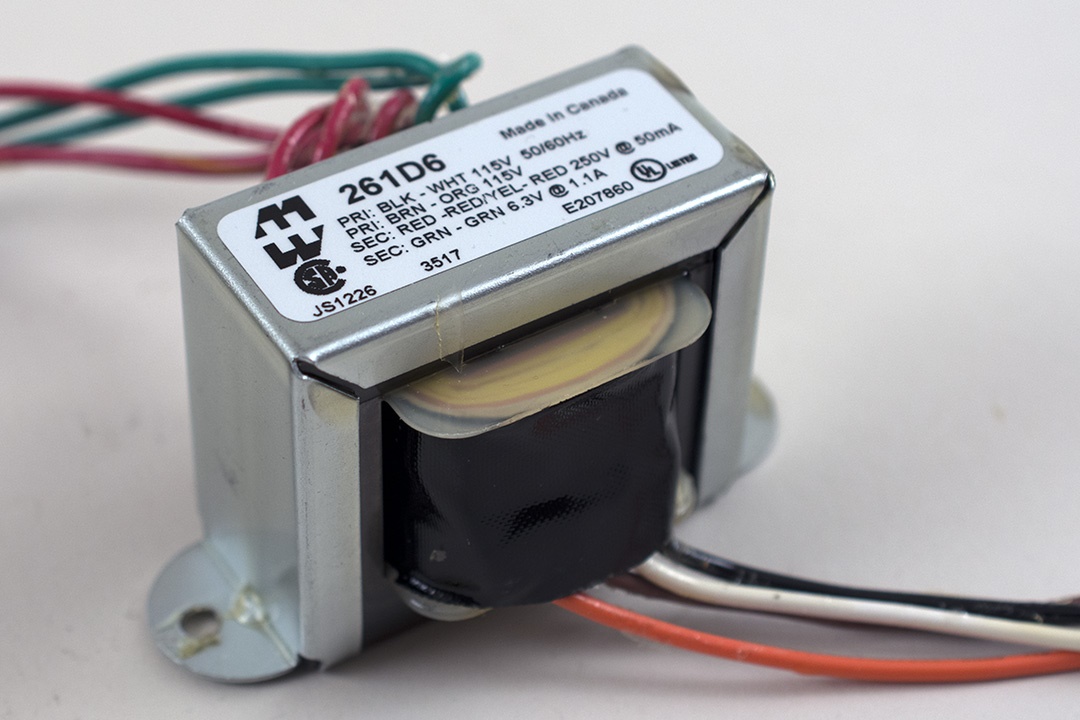

261D6
Transformers
RoHS Compliant
Transformer, plate & filament or bias, 19.4VA, 250V C.T. @ 50 ma, 261 series PLATE AND FILAMENT TX Hammond PN 261… |
Hammond Mfg.
Series 261-262 |
Factory Lead Time: 20
|
1 - 1$43.20 2 - 3$42.50 4 - 9$41.80 ... |
|
|
261G6
Transformers
RoHS Compliant
Transformer, plate & filament or bias, 45VA, 250V C.T. @ 130 ma, 261 series POWER TX Hammond PN 261G6 : UPC [6239… |
Hammond Mfg.
Series 261-262 |
Total Stock: 2
Factory Lead Time: 20
|
1 - 1$48.90 2 - 3$48.10 4 - 9$47.30 ... |
|
|
261GE6
Transformers
RoHS Compliant
Transformer, plate & filament or bias, 45VA, 250V C.T. @ 130 ma, 261 series POWER TX Hammond PN 261GE6 : UPC [623… |
Hammond Mfg.
Series 261-262 |
Factory Lead Time: 20
|
1 - 1$49.60 2 - 3$48.80 4 - 9$48.00 ... |
|
|
262A12
Transformers
RoHS Compliant
Transformer, plate & filament or bias, 6VA, 125V @ 15ma, 262 series 117V, 50/60, 125V@15MA,12.6@3A Hammond PN 262… |
Hammond Mfg.
Series 261-262 |
Factory Lead Time: 20
|
1 - 2$37.00 3 - 4$36.40 5 - 9$35.80 ... |
|
|
262B24
Transformers
RoHS Compliant
Transformer, plate & filament or bias, 8VA, 120V @ 27 ma, 262 series POWER TX Hammond PN 262B24 : UPC [6239802732… |
Hammond Mfg.
Series 261-262 |
Factory Lead Time: 20
|
1 - 2$34.10 3 - 4$33.50 5 - 9$32.90 ... |
|
|
262B6
Transformers
RoHS Compliant
Transformer, plate & filament or bias, 7VA, 120V @ 43 ma, 262 series POWER TX Hammond PN 262B6 : UPC [62398027300… |
Hammond Mfg.
Series 261-262 |
Total Stock: 2
Factory Lead Time: 20
|
1 - 1$30.80 2 - 2$30.30 3 - 9$29.80 ... |
|
|
262D12
Transformers
RoHS Compliant
Transformer, plate & filament or bias, 12VA, 120V @ 53 ma, 262 series POWER TX Hammond PN 262D12 : UPC [623980273… |
Hammond Mfg.
Series 261-262 |
Factory Lead Time: 20
|
1 - 2$32.30 3 - 4$31.70 5 - 9$31.20 ... |
|
|
262D6
Transformers
RoHS Compliant
Transformer, plate & filament or bias, 12VA, 120V @ 53 ma, 262 series POWER TX Hammond PN 262D6 : UPC [6239802733… |
Hammond Mfg.
Series 261-262 |
Total Stock: 1
Factory Lead Time: 20
|
1 - 2$32.30 3 - 4$31.70 5 - 9$31.20 ... |
|
|
262EE6
Transformers
RoHS Compliant
Transformer, plate & filament or bias, 18VA, 120V @ 87 ma, 262 series POWER TX Hammond PN 262EE6 : UPC [623980398… |
Hammond Mfg.
Series 261-262 |
Factory Lead Time: 20
|
1 - 2$33.30 3 - 4$32.80 5 - 9$32.20 ... |
261-262
