Tube Guitar Amplifier - Chokes 194 Series REPLACEMENT & UPGRADES
Features:
Designed for drop in replacement of original units.
Physically, parts were designed to look similar to original factory units (where possible).
Inductances measured at rated D.C. current.
Material used & design specs. were kept as close as possible to the original part to preserve the stock "tone".
Units are vacuum impregnated with polyurethane varnish for quiet and long life operation.
"Click" on thumbnail photos below for a full size photo of each part.
Displaying 1 - 7 of 7
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
194C
Enclosures
 RoHS Compliant
Choke designed for Marshall guitar amp, inductance 40 H @ 50 ma., 194 Series CHOKE FOR JCM 800, MARSHALL Hammond PN 1… |
Hammond Mfg.
Series 194 |
Factory Lead Time: 20
|
1 - 1$42.90 2 - 3$42.20 4 - 9$41.50 ... |
|
|
194D
Enclosures
RoHS Compliant
Choke designed for VOX guitar amp, inductance 5 H @ 150 ma., 194 Series CHOKE FOR AC30 RE-ISSUE, VOX Hammond PN 194D… |
Hammond Mfg.
Series 194 |
Factory Lead Time: 20
|
1 - 1$40.90 2 - 3$40.20 4 - 9$39.50 ... |
|
|
194F
Enclosures
RoHS Compliant
Choke designed for Marshall guitar amp, inductance 5 H @ 120 ma., 194 Series CHOKE FOR MARSHALL JCM800 Hammond PN 194… |
Hammond Mfg.
Series 194 |
Total Stock: 5
Factory Lead Time: 20
|
1 - 1$30.20 2 - 2$29.70 3 - 9$29.20 ... |
|
|

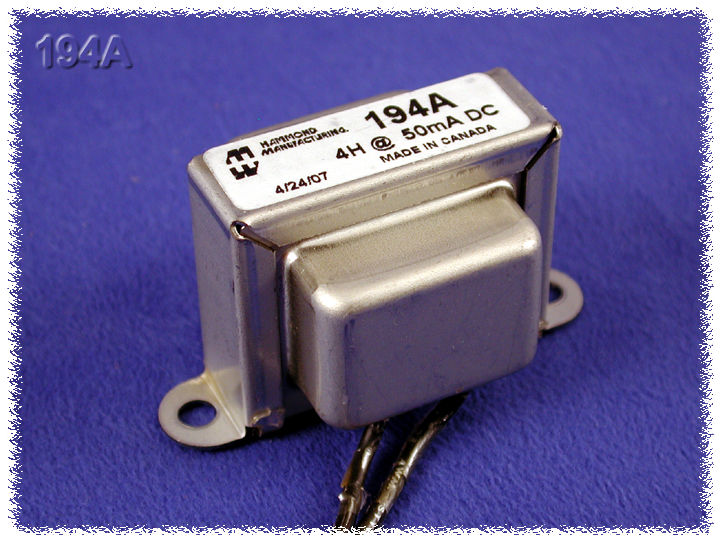

194A
Enclosures
RoHS Compliant
Choke designed for Fender guitar amp, inductance 4 H @ 50 ma., 194 Series CHOKE 50MA, 1500 OHMS Hammond PN 194A : UPC… |
Hammond Mfg.
Series 194 |
Total Stock: 8
Factory Lead Time: 20
|
1 - 1$19.10 2 - 4$18.80 5 - 9$18.50 ... |
|
|

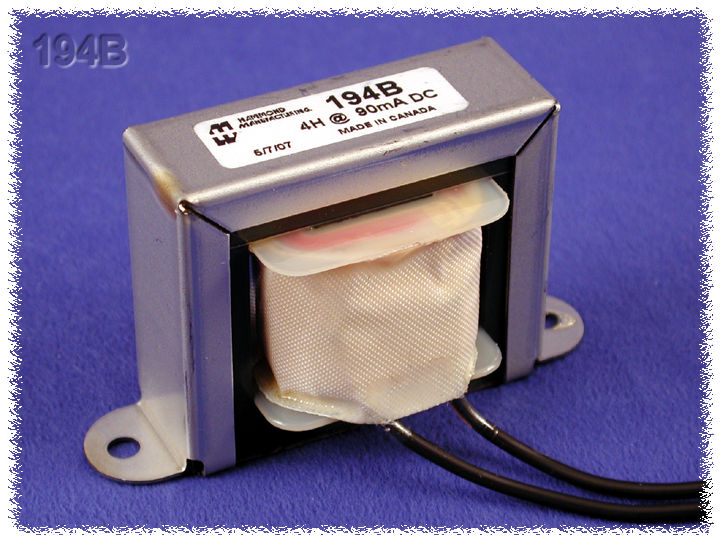

194B
Enclosures
RoHS Compliant
Choke designed for Fender guitar amp, inductance 4 H @ 90 ma., 194 Series CHOKE 90MA, 1500 OHMS Hammond PN 194B : UPC… |
Hammond Mfg.
Series 194 |
Total Stock: 12
Factory Lead Time: 20
|
1 - 1$20.80 2 - 3$20.40 4 - 9$20.10 ... |
|
|
194E
Enclosures
RoHS Compliant
Choke designed for VOX guitar amp, inductance 30 H @ 100 ma., 194 Series CHOKE FOR AC30 VINTAGE, VOX Hammond PN 194E… |
Hammond Mfg.
Series 194 |
Total Stock: 3
Factory Lead Time: 20
|
1 - 2$37.30 3 - 4$36.70 5 - 9$36.10 ... |
|
|

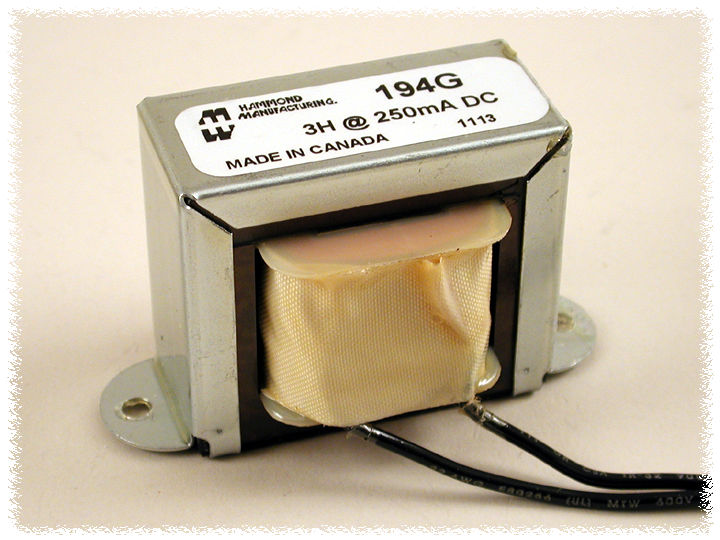

194G
Enclosures
RoHS Compliant
Choke designed for Marshall guitar amp, inductance 3H @ 250 ma., 194 Series 3H CHOKE Hammond PN 194G : UPC [623980207… |
Hammond Mfg.
Series 194 |
Total Stock: 5
Factory Lead Time: 20
|
1 - 1$25.80 2 - 3$25.30 4 - 9$24.90 ... |
