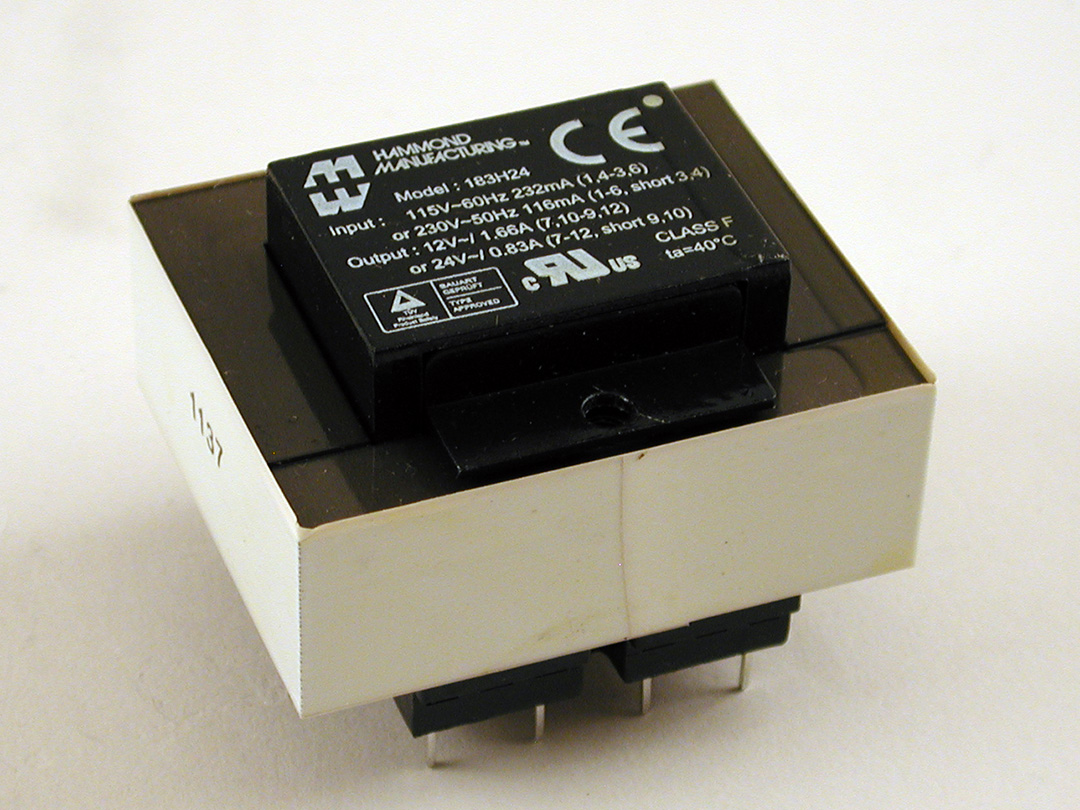

Low Voltage PCB Mount - Universal 183 Series
Features:
Universal operation - dual primary. 115 or 230 VAC, 50/60 Hz current.
14 output voltages to choose from (5 - 36 VAC R.M.S.)

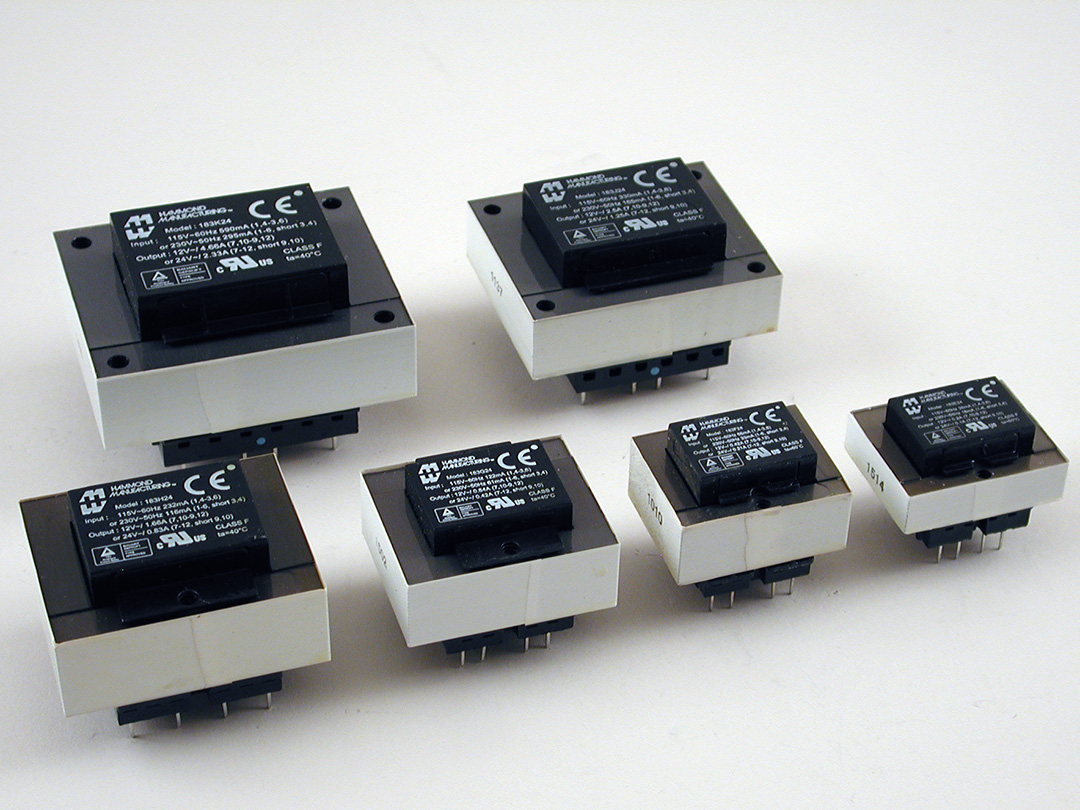

Six VA size models available from - 2.5 to 56VA.
Low profile, split bobbin with top shroud design.
Dual winding secondaries, non-concentrically wound. Can be wired in series, parallel or used separately.
Low primary to secondary coupling - no electrostatic shield required.
High insulation - Hipot of 4,000V RMS.
Class F insulation - 155 degrees C.

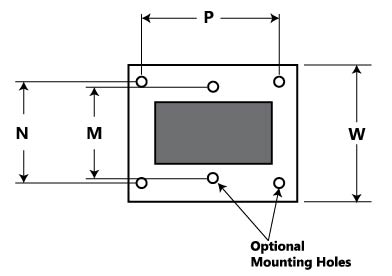

Two hole mounting on 2.5, 5, 10 and 20VA sizes, four hole mounting on 30 and 56VA size (mounting screws not provided).
P.C. board mount with industry standard pin spacing.
Listings: cURus, CE and TUV.
Displaying 1 - 10 of 42
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
183F10
Enclosures
 RoHS Compliant
Transformer, low voltage PCB mount, 115/230V, 5VA, 10V C.T. @ 0.5A, 183 Series POWER PCB 5VA 115/230 Hammond PN 183F1… |
Hammond Mfg.
Series 183 |
Factory Lead Time: 15
|
1 - 3$8.90 4 - 9$8.80 10 - 24$8.60 ... |
|
|

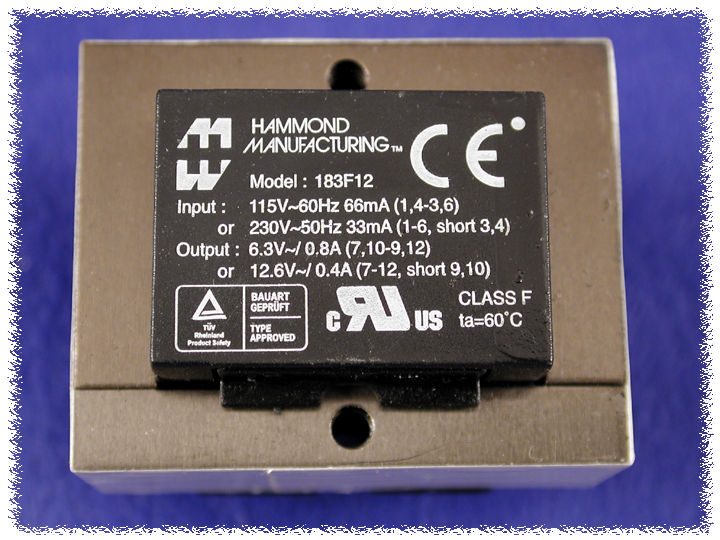

183F12
Enclosures
RoHS Compliant
Transformer, low voltage PCB mount, 115/230V, 5VA, 12.6V C.T. @ 0.4A, 183 Series POWER PCB 5VA 115/230 Hammond PN 183… |
Hammond Mfg.
Series 183 |
Factory Lead Time: 15
|
1 - 3$8.90 4 - 9$8.80 10 - 24$8.60 ... |
|
|
183F16
Enclosures
RoHS Compliant
Transformer, low voltage PCB mount, 115/230V, 5VA, 16V C.T. @ 0.31A, 183 Series POWER PCB 5VA 115/230 Hammond PN 183F… |
Hammond Mfg.
Series 183 |
Factory Lead Time: 15
|
1 - 3$8.90 4 - 9$8.80 10 - 24$8.60 ... |
|
|
183F20
Enclosures
RoHS Compliant
Transformer, low voltage PCB mount, 115/230V, 5VA, 20V C.T. @ 0.25A, 183 Series POWER PCB 5VA 115/230 Hammond PN 183F… |
Hammond Mfg.
Series 183 |
Factory Lead Time: 15
|
1 - 3$8.90 4 - 9$8.80 10 - 24$8.60 ... |
|
|
183F24
Enclosures
RoHS Compliant
Transformer, low voltage PCB mount, 115/230V, 5VA, 24V C.T. @ 0.21A, 183 Series POWER PCB 5VA 115/230 Hammond PN 183F… |
Hammond Mfg.
Series 183 |
Factory Lead Time: 15
|
1 - 3$8.90 4 - 9$8.80 10 - 24$8.60 ... |
|
|
183F28
Enclosures
RoHS Compliant
Transformer, low voltage PCB mount, 115/230V, 5VA, 28V C.T. @ 0.18A, 183 Series POWER PCB 5VA 115/230 Hammond PN 183F… |
Hammond Mfg.
Series 183 |
Factory Lead Time: 15
|
1 - 3$8.90 4 - 9$8.80 10 - 24$8.60 ... |
|
|
183F36
Enclosures
RoHS Compliant
Transformer, low voltage PCB mount, 115/230V, 5VA, 36V C.T. @ 0.14A, 183 Series POWER PCB 5VA 115/230 Hammond PN 183F… |
Hammond Mfg.
Series 183 |
Factory Lead Time: 15
|
1 - 3$8.90 4 - 9$8.80 10 - 24$8.60 ... |
|
|
183G10
Enclosures
RoHS Compliant
Transformer, low voltage PCB mount, 115/230V, 10VA, 10V C.T. @ 1A, 183 Series POWER PCB 10VA 115/230 Hammond PN 183G1… |
Hammond Mfg.
Series 183 |
Factory Lead Time: 15
|
1 - 3$10.50 4 - 9$10.30 10 - 24$10.20 ... |
|
|
183G12
Enclosures
RoHS Compliant
Transformer, low voltage PCB mount, 115/230V, 10VA, 12.6V C.T. @ 0.8A, 183 Series POWER PCB 10VA 115/230 Hammond PN 1… |
Hammond Mfg.
Series 183 |
Factory Lead Time: 15
|
1 - 3$10.50 4 - 9$10.30 10 - 24$10.20 ... |
|
|
183G16
Enclosures
RoHS Compliant
Transformer, low voltage PCB mount, 115/230V, 10VA, 16V C.T. @ 0.62A, 183 Series POWER PCB 10VA 115/230 Hammond PN 18… |
Hammond Mfg.
Series 183 |
Factory Lead Time: 15
|
1 - 3$10.50 4 - 9$10.30 10 - 24$10.20 ... |
