Hawk Electronics
Filters172
Isolation - Step Down (230VAC to 115VAC) 172 Series Plug-In
Features:
Primary 230VAC, 50/60 Hz. Secondary 115VAC
Circuit breaker in primary.
Provides circuit isolation & steps down primary voltage.
Hi-pot tested to 2 KV RMS.
Electrostatic shield between primary & secondary.

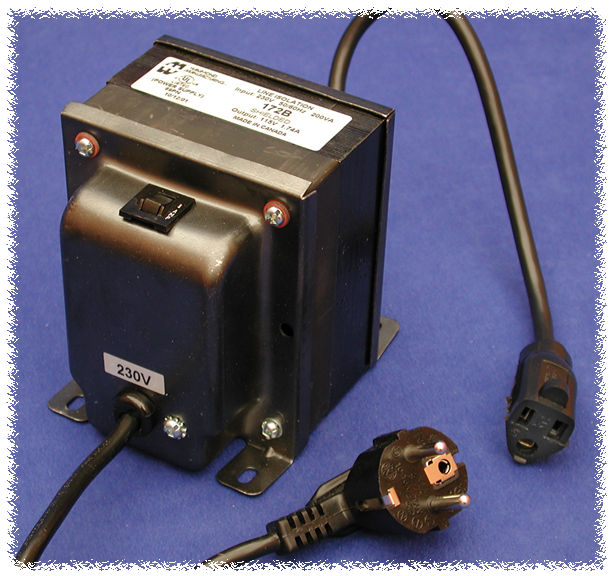

Input (primary) connected to a 5 foot long cord & European (Schuko) grounded plug - NOTE: old inventory only.

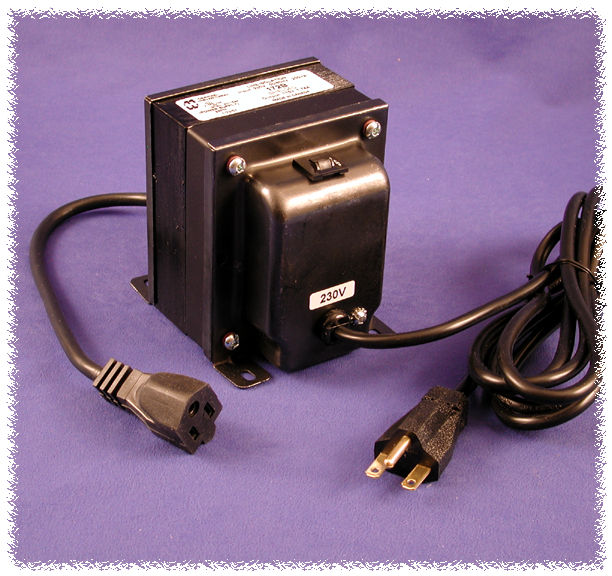

Input - due to U.L changes in 2007 - NEW production with the European (Shuko) parts would no longer be U.L. listed. Therefore, we have replaced this input plug with a standard North American 3-wire, 250V plug (NEMA 6-15P).
Output (secondary) connected to a 1 foot long cord & standard North American 3-wire grounded receptacle (NEMA 5-15R).
North American Mark of Safety - C UL & UL listed (File #E211544).
Indoor use only.
Remember - These units do NOT convert line frequency
Displaying 1 - 5 of 5
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
172A
Enclosures
 RoHS Compliant
Isolation transformer, plug-in, 230VAC, 50/60 Hz to 115VAC, 100VA, 172 Series PLUG IN STEP DOWN ISOLATION Hammond PN… |
Hammond Mfg.
Series 172 |
Factory Lead Time: 20
|
1 - 1$130.60 2 - 2$128.50 3 - 4$126.40 ... |
|
|
172B
Enclosures
RoHS Compliant
Isolation transformer, plug-in, 230VAC, 50/60 Hz to 115VAC, 200VA, 172 Series PLUG IN STEP DOWN ISOLATION Hammond PN… |
Hammond Mfg.
Series 172 |
Factory Lead Time: 20
|
1 - 1$145.10 2 - 3$140.40 4 - 9$138.20 ... |
|
|
172D
Enclosures
RoHS Compliant
Isolation transformer, plug-in, 230VAC, 50/60 Hz to 115VAC, 500VA, 172 Series PLUG IN STEP DOWN ISOLATION Hammond PN… |
Hammond Mfg.
Series 172 |
Factory Lead Time: 20
|
1 - 1$196.40 2 - 2$193.20 3 - 9$190.20 ... |
|
|
172E
Enclosures
RoHS Compliant
Isolation transformer, plug-in, 230VAC, 50/60 Hz to 115VAC, 750VA, 172 Series PLUG IN STEP DOWN ISOLATION Hammond PN… |
Hammond Mfg.
Series 172 |
Factory Lead Time: 20
|
1 - 1$245.50 2 - 2$241.50 3 - 4$237.70 ... |
|
|
172F
Enclosures
RoHS Compliant
Isolation transformer, plug-in, 230VAC, 50/60 Hz to 115VAC, 1000VA, 172 Series PLUG IN STEPDOWN ISOLATION Hammond PN… |
Hammond Mfg.
Series 172 |
Factory Lead Time: 20
|
1 - 1$280.90 2 - 3$276.40 4 - 9$272.80 ... |
172
