Hawk Electronics
Filters167
Low Voltage, Filament 167 Series Enclosed, Chassis Mount - 115 V Primary
Features:
Primary 115 VAC, 60 Hz.
All secondaries center tapped, VAC (RMS)

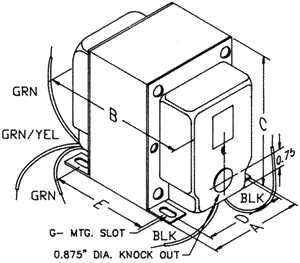

Enclosed, 4 hole chassis mount.
Minimum 6" long leads.
Dual bobbin design - no electrostatic shield required.
Class B insulation (130 degrees C).
Hi-Pot test of 2,000V RMS.
UL listed (# E50394) & CSA certified (209651).
Displaying 1 - 10 of 70
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
167G80
Power chassis Mount
 RoHS Compliant
Hammond 115 VAC 60 Hz Primary 40 VA and 80 C.T. VAC, 0.5 Amps Secondary Enclosed, Chassis Mount Transformer with Dime… |
Hammond Mfg.
Series 167 |
Factory Lead Time: 20
|
1 - 2$39.60 3 - 4$38.90 5 - 9$38.30 ... |
|
|
167J100
Power chassis Mount
RoHS Compliant
Hammond 115 VAC 60 Hz Primary 100 VA and 100 C.T. VAC, 1 Amps Secondary Enclosed, Chassis Mount Transformer with Dime… |
Hammond Mfg.
Series 167 |
Factory Lead Time: 20
|
1 - 1$54.70 2 - 2$53.80 3 - 4$52.90 ... |
|
|
167J33
Power chassis Mount
RoHS Compliant
Hammond 115 VAC 60 Hz Primary 33 VA and 33 C.T. VAC, 1 Amps Secondary Enclosed, Chassis Mount Transformer with Dimens… |
Hammond Mfg.
Series 167 |
Factory Lead Time: 20
|
1 - 2$34.80 3 - 4$34.20 5 - 9$33.60 ... |
|
|
167J55
Power chassis Mount
RoHS Compliant
Hammond 115 VAC 60 Hz Primary 55 VA and 55 C.T. VAC, 1 Amps Secondary Enclosed, Chassis Mount Transformer with Dimens… |
Hammond Mfg.
Series 167 |
Factory Lead Time: 20
|
1 - 1$43.80 2 - 3$43.10 4 - 9$42.30 ... |
|
|
167J60
Power chassis Mount
RoHS Compliant
Hammond 115 VAC 60 Hz Primary 60 VA and 60 C.T. VAC, 1 Amps Secondary Enclosed, Chassis Mount Transformer with Dimens… |
Hammond Mfg.
Series 167 |
Factory Lead Time: 20
|
1 - 1$46.80 2 - 3$46.00 4 - 9$45.30 ... |
|
|
167M18
Power chassis Mount
RoHS Compliant
Hammond 115 VAC 60 Hz Primary 54 VA and 18 C.T. VAC, 3 Amps Secondary Enclosed, Chassis Mount Transformer with Dimens… |
Hammond Mfg.
Series 167 |
Factory Lead Time: 20
|
1 - 1$46.20 2 - 3$45.40 4 - 9$44.70 ... |
|
|
167G100
Power chassis Mount
RoHS Compliant
Hammond 115 VAC 60 Hz Primary 50 VA and 100 C.T. VAC, 0.5 Amps Secondary Enclosed, Chassis Mount Transformer with Dim… |
Hammond Mfg.
Series 167 |
Factory Lead Time: 20
|
1 - 1$40.50 2 - 3$39.80 4 - 9$39.10 ... |
|
|
167G55
Power chassis Mount
RoHS Compliant
Hammond 115 VAC 60 Hz Primary 27.5 VA and 55 C.T. VAC, 0.5 Amps Secondary Enclosed, Chassis Mount Transformer with Di… |
Hammond Mfg.
Series 167 |
Factory Lead Time: 20
|
1 - 2$33.80 3 - 4$33.20 5 - 9$32.60 ... |
|
|
167J25
Power chassis Mount
RoHS Compliant
Hammond 115 VAC 60 Hz Primary 25 VA and 25 C.T. VAC, 1 Amps Secondary Enclosed, Chassis Mount Transformer with Dimens… |
Hammond Mfg.
Series 167 |
Factory Lead Time: 20
|
1 - 2$33.90 3 - 4$33.30 5 - 9$32.80 ... |
|
|
167J28
Power chassis Mount
RoHS Compliant
Hammond 115 VAC 60 Hz Primary 28 VA and 28 C.T. VAC, 1 Amps Secondary Enclosed, Chassis Mount Transformer with Dimens… |
Hammond Mfg.
Series 167 |
Factory Lead Time: 20
|
1 - 2$34.00 3 - 4$33.40 5 - 9$32.90 ... |
167
