Tube Output (50 - 100 Watts) 1650P Series Push-Pull HI-FI Potted
Features:
Designed for push-pull tube output circuits.
A perfect match to our 300P potted power transformers.
Enclosed in a drawn steel case, the transformer is completely potted in epoxy.
Frequency response 30 Hz. to 30 Khz. at full rated power (+/- 1 db max. ref. 1 Khz) minimum.

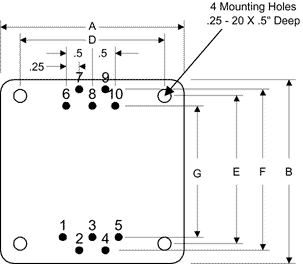

Lead connection is via 10 bottom mounted lugs.

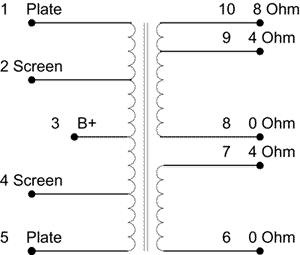

All units include 40% screen taps for Ultra-Linear operation (if desired).
Finished in a black powder paint (to match our 300P series power transformers).
Typical applications - Push-Pull: triode, Ultra-Linear pentode, pentode and tetrode connected audio output.
Displaying 1 - 4 of 4
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
1650KP
Transformers
 RoHS Compliant
Hammond AUDIO TX 3.4K OHM 50 WATT POTT Part Number 1650KP [UPC 62398030182 ] |
Hammond Mfg.
Series 1650P |
Factory Lead Time: 20
|
1 - 1$235.70 2 - 2$231.80 3 - 4$228.10 ... |
|
|
1650KAP
Enclosures
Tube output transformer, push-pull, Hi-Fi, potted, 50 watts, 3400 ohms AUDIO TX 3.4K OHM 50 WATT POTT Hammond PN 1650… |
Hammond Mfg.
Series 1650P |
Factory Lead Time: 20
|
1 - 1$252.70 2 - 2$248.60 3 - 4$244.60 ... |
|
|
1650PAP
Enclosures
Tube output transformer, push-pull, Hi-Fi, potted, 60 watts, 6600 ohms AUDIO TX 6.6K OHM 60 WATT POTT Hammond PN 1650… |
Hammond Mfg.
Series 1650P |
Factory Lead Time: 20
|
1 - 1$257.80 2 - 2$253.70 3 - 4$249.60 ... |
|
|
1650RAP
Enclosures
Tube output transformer, push-pull, Hi-Fi, potted, 100 watts, 5000 ohms AUDIO TX 5K OHM 100 WATT POTT Hammond PN 1650… |
Hammond Mfg.
Series 1650P |
Factory Lead Time: 20
|
1 - 1$287.50 2 - 3$282.90 4 - 9$279.20 ... |
