Tube Output (10 - 280 Watts) 1608-1650 Series Push-Pull - HI-FI
Features:
Please see our NEW & improved versions (easy wire secondary series).
Designed for push-pull tube output circuits.
Enclosed (shielded), 4 slot, above chassis Type "X" mounting.
Frequency response 30 Hz. to 30 Khz. at full rated power (+/- 1 db max. - ref. 1 Khz) minimum.
Insulated flexible leads 8" min.
Manufactured with plastic coil forms for coil support and insulation.
Typical applications - Push-Pull: triode, Ultra-Linear pentode, pentode and tetrode connected audio output.
Due to the unique interleaving of the windings BOTH secondary windings must be engaged to meet specifications (see hook-up diagrams below).
For the "ultimate" in Push-Pull output see our line of epoxy potted output transformers.
1645 Only:

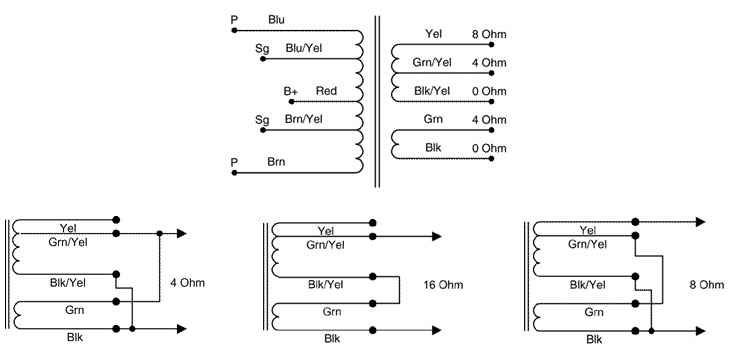

Secondary Connections (Due to the unique interleaving of the windings BOTH secondary windings must be engaged to meet specifications)
To hook up 4/8/16 ohm secondary loads - see schematic (do not use the white wire).
To hook up secondary to 70V loads, jumper Blk/Yel wire to Grn wire. Connect load to Blk and White wires.
