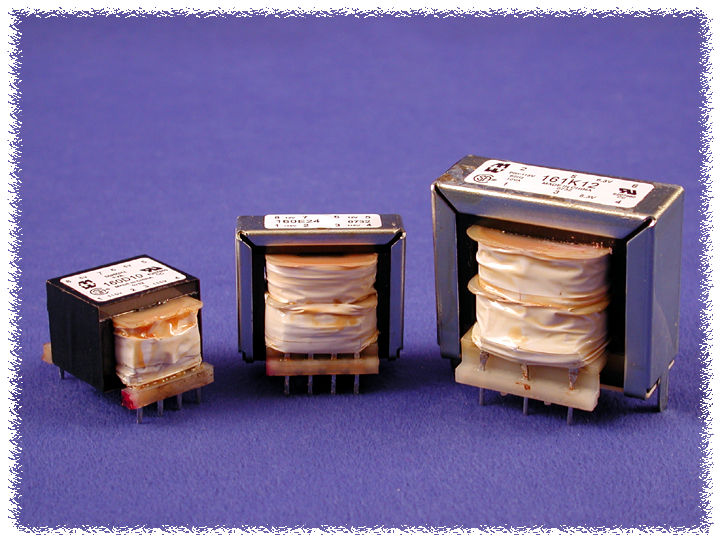

Low Voltage PC Board Mount 160-161 Series Low Voltage, P.C. Board Mount Vertical - 115 & 115/230 V Primary
Features:
20 output voltages to choose from (5 - 120VAC R.M.S.)
Six VA size models available from - .5 to 24 VA
Vertical mount, split bobbin design.
1.2, 4.4, 10, 24 VA models are non-concentric wound.
0.5 and 1 VA are both concentric wound.
Low primary to secondary coupling - no electrostatic shield required.

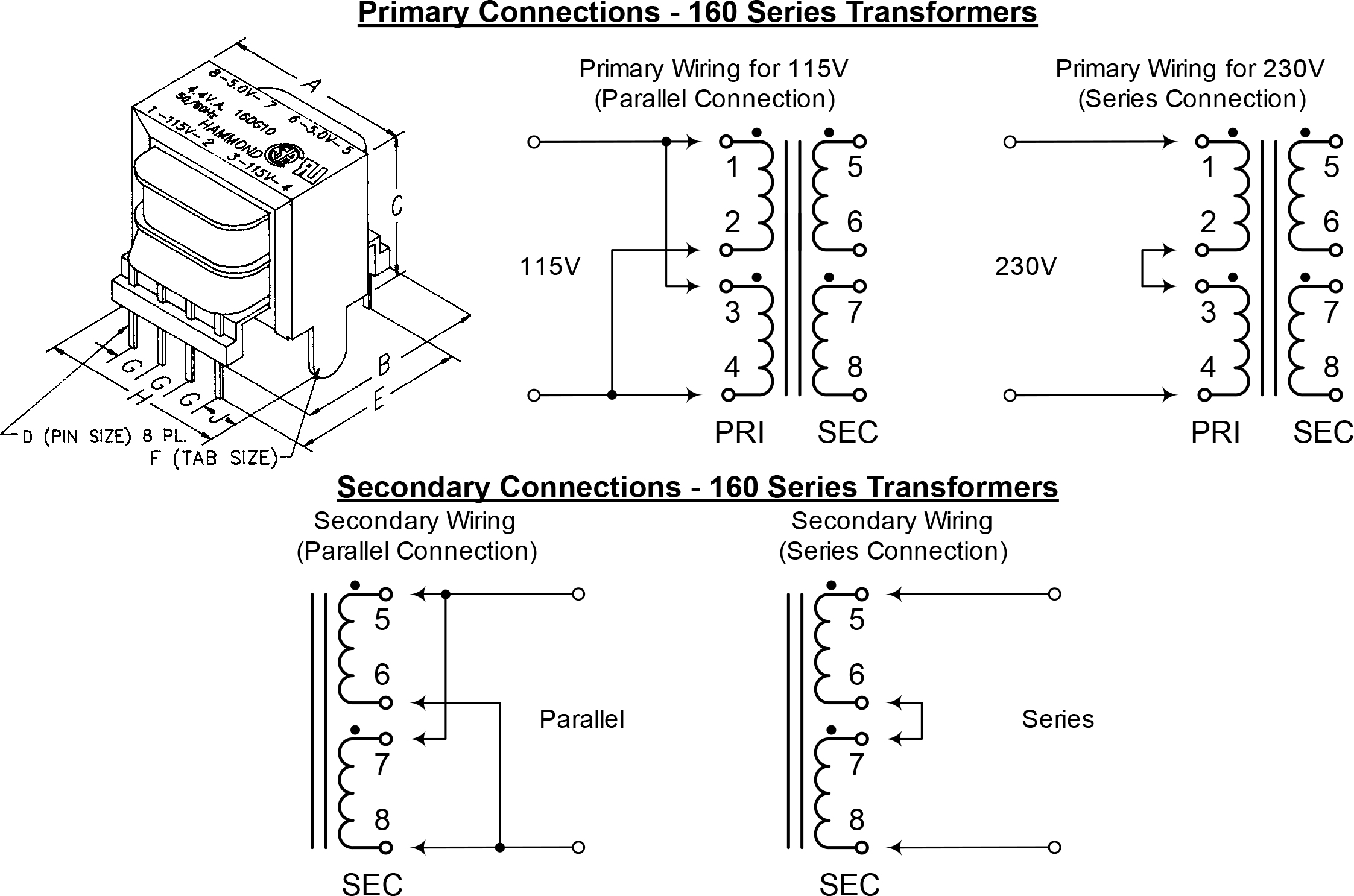

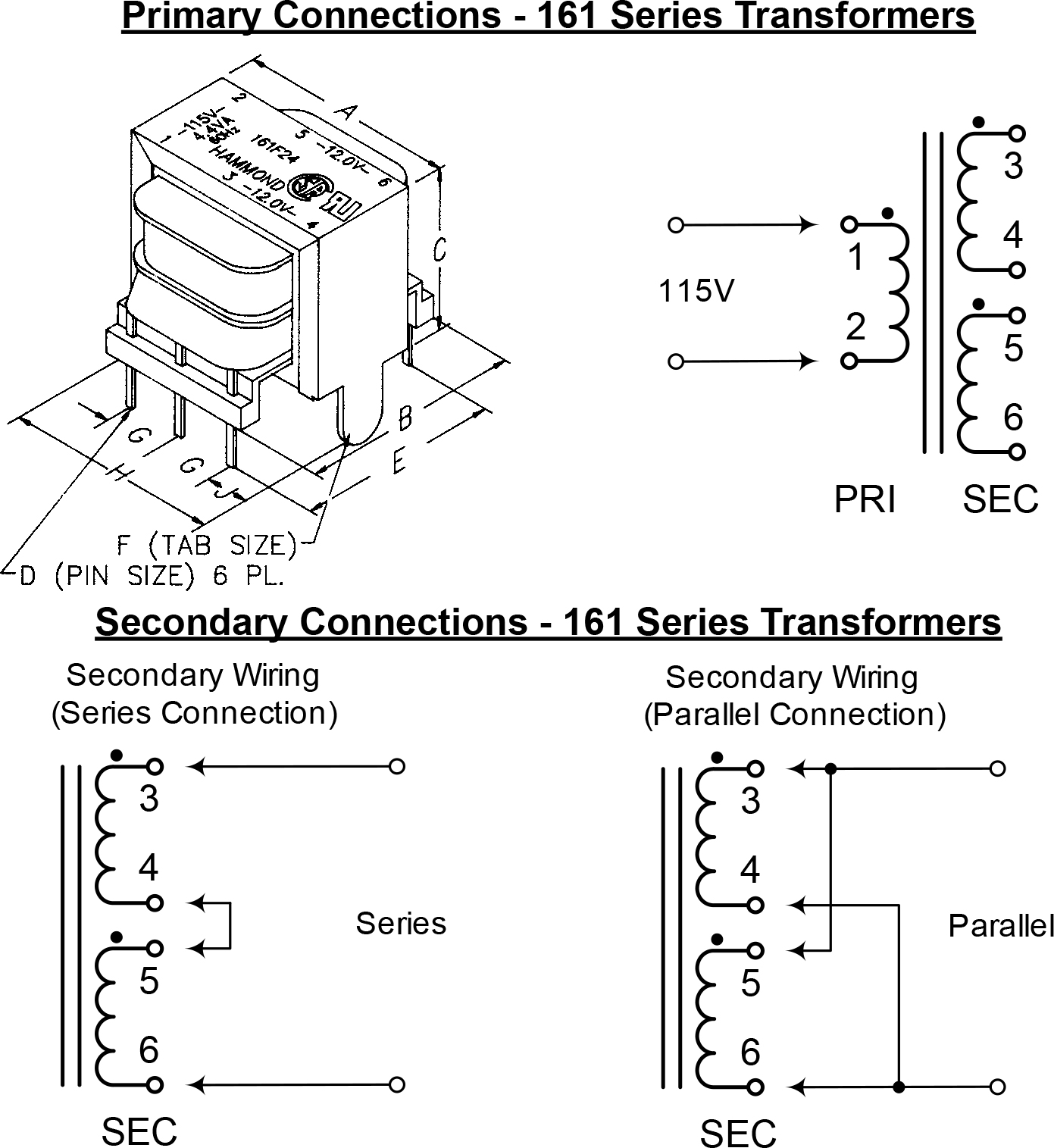

Choice of economical single primary 115V - 60 Hz only (161 series) or the universal dual primary 115/230V - 50/60 Hz (160 series).
High insulation - Hipot of 2,000V RMS.
Class B insulation - 130 degrees C.
CSA certified (File # LR3902) and UL recognized (File #E207860).
Displaying 1 - 10 of 97
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
160D10
Enclosures
 RoHS Compliant
Transformer, low voltage PCB mount, 115/230V primary, 1VA, 10V C.T. @ 90ma sec POWER TX 1VA 115/230V Hammond PN 160D1… |
Hammond Mfg.
Series 160-161 |
Total Stock: 3
Factory Lead Time: 15
|
1 - 3$8.20 4 - 9$8.00 10 - 24$7.90 ... |
|
|
160D12
Enclosures
RoHS Compliant
Transformer, low voltage PCB mount, 115/230V primary, 1VA, 12.6V C.T. @ 70ma sec POWER TX 1VA 115/230V Hammond PN 160… |
Hammond Mfg.
Series 160-161 |
Total Stock: 5
Factory Lead Time: 15
|
1 - 3$8.20 4 - 9$8.00 10 - 24$7.90 ... |
|
|
160D120
Enclosures
RoHS Compliant
Transformer, low voltage PCB mount, 115/230V primary, 1VA, 120V C.T. @ 8ma sec POWER TX 1VA 115/230V Hammond PN 160D1… |
Hammond Mfg.
Series 160-161 |
Factory Lead Time: 15
|
1 - 3$8.20 4 - 9$8.00 10 - 24$7.90 ... |
|
|
160D16
Enclosures
RoHS Compliant
Transformer, low voltage PCB mount, 115/230V primary, 1VA, 16V C.T. @ 55ma sec POWER TX 1VA 115/230V Hammond PN 160D1… |
Hammond Mfg.
Series 160-161 |
Factory Lead Time: 20
|
1 - 4$7.40 5 - 14$7.30 15 - 24$7.20 ... |
|
|
160D20
Enclosures
RoHS Compliant
Transformer, low voltage PCB mount, 115/230V primary, 1VA, 20V C.T. @ 45ma sec POWER TX 1VA 115/230V Hammond PN 160D2… |
Hammond Mfg.
Series 160-161 |
Total Stock: 7
Factory Lead Time: 15
|
1 - 3$8.20 4 - 9$8.00 10 - 24$7.90 ... |
|
|
160D24
Enclosures
RoHS Compliant
Transformer, low voltage PCB mount, 115/230V primary, 1VA, 24V C.T. @ 35ma sec POWER TX 1VA 115/230V Hammond PN 160D2… |
Hammond Mfg.
Series 160-161 |
Factory Lead Time: 15
|
1 - 3$8.20 4 - 9$8.00 10 - 24$7.90 ... |
|
|
160D28
Enclosures
RoHS Compliant
Transformer, low voltage PCB mount, 115/230V primary, 1VA, 28V C.T. @ 30ma sec POWER TX 1VA 115/230V Hammond PN 160D2… |
Hammond Mfg.
Series 160-161 |
Factory Lead Time: 20
|
1 - 4$7.40 5 - 14$7.30 15 - 24$7.20 ... |
|
|
160D34
Enclosures
RoHS Compliant
Transformer, low voltage PCB mount, 115/230V primary, 1VA, 34V C.T. @ 25ma sec POWER TX 1VA 115/230V Hammond PN 160D3… |
Hammond Mfg.
Series 160-161 |
Factory Lead Time: 20
|
1 - 4$7.40 5 - 14$7.30 15 - 24$7.20 ... |
|
|
160D40
Enclosures
RoHS Compliant
Transformer, low voltage PCB mount, 115/230V primary, 1VA, 40V C.T. @ 20ma sec POWER TX 1VA 115/230V Hammond PN 160D4… |
Hammond Mfg.
Series 160-161 |
Factory Lead Time: 15
|
1 - 3$8.20 4 - 9$8.00 10 - 24$7.90 ... |
|
|
160D56
Enclosures
RoHS Compliant
Transformer, low voltage PCB mount, 115/230V primary, 1VA, 56V C.T. @ 15ma sec POWER TX 1VA 115/230V Hammond PN 160D5… |
Hammond Mfg.
Series 160-161 |
Factory Lead Time: 20
|
1 - 4$7.40 5 - 14$7.30 15 - 24$7.20 ... |
