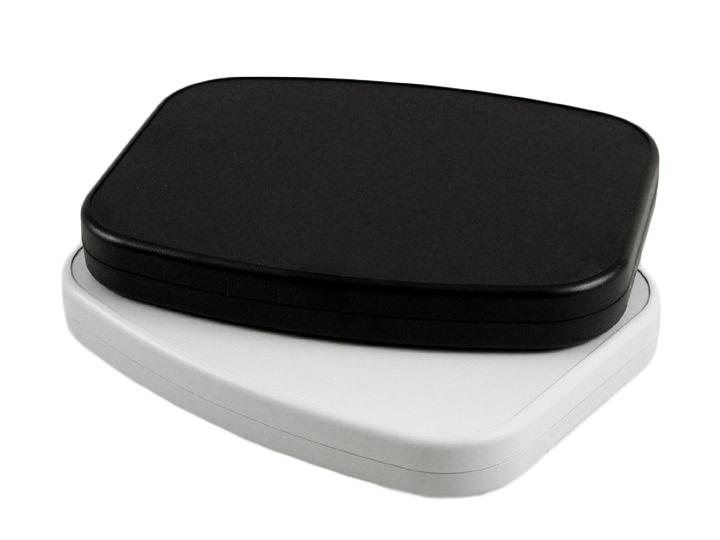

ABS Plastic Tablet Enclosures 1599TAB Series Ergonomic Design, PC Board Standoffs, Battery Compartments
Features:
Low profile - ergonomically designed for a comfortable fit into the user’s hands.
Perfect for instrument or mobile data enclosures requiring a touch screen.
Choice of three size. All available with or without battery compartment.
Molded from flame retardant ABS plastic, choice of black or grey - material carries a UL flammability rating of 94V-0.
Enclosure is assembled with six (6) - M3-0.5 x 18 mm Phillips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required.
Integral brass bushings are factory inserted into the top half of the enclosure (see photos).
Lap joint construction provides protection against access of dust and splashing water. Designed to meet IP54.

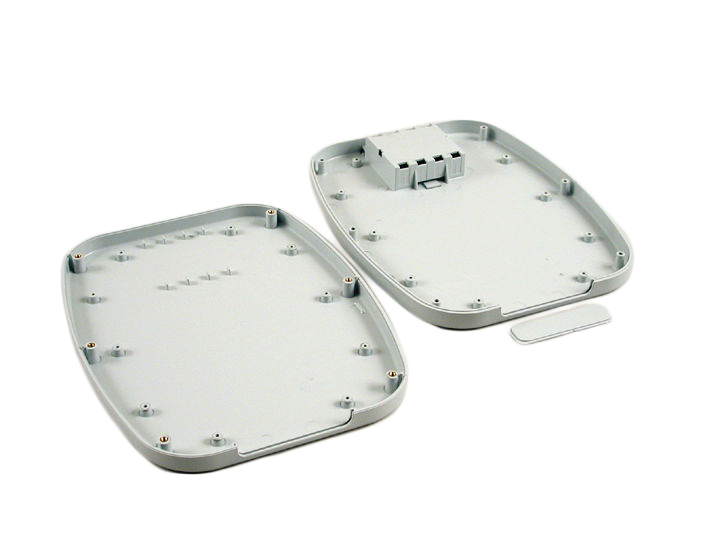

P.C. board standoffs are molded into case top & bottom halves (see drawings or photos for more details).

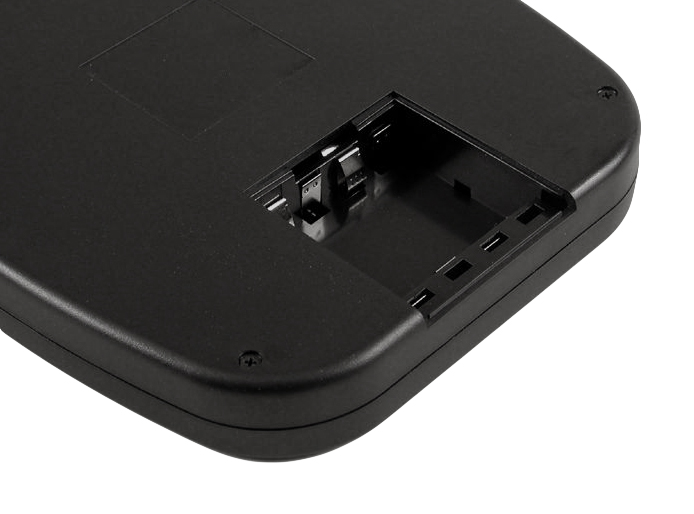

Battery door & compartment version (part numbers ending in “BAT”) includes 8 battery clips (for 4 - AA batteries) and two 9 volt (PP3) battery clips.
Contains one end panel - removable for easy modification.
Bottom half of enclosure includes a square - molded inlay for labels.
Screws:
100 pack of silver replacement cover screws (M3-0.5 x 18mm Flat Head), part number 1594MS100
100 pack of black replacement cover screws (M3-0.5 x 18mm Flat Head), part number 1594MS100BK
50 pack of optional PC board screws (#4 x 1/4" Self Tapping), part number 1593ATS50
100 pack of optional PC board screws (#4 x 1/4" Self Tapping), part number 1593ATS100
Displaying 1 - 10 of 12
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
1599TABLBK
Enclosures
 RoHS Compliant
enclosure - plastic FRABS LARGE TABLET (9.45 x 7.48 x 1.19) Hammond PN 1599TABLBK : UPC [623980400648] Color: Black… |
Hammond Mfg.
Series 1599TAB |
Factory Lead Time: 20
|
1 - 2$14.00 3 - 9$13.80 10 - 14$13.60 ... |
|
|
1599TABLBKBAT
Enclosures
RoHS Compliant
enclosure - plastic FRABS LARGE TABLET W BAT (9.45 x 7.48 x 1.19) Hammond PN 1599TABLBKBAT : UPC [623980400662] Color… |
Hammond Mfg.
Series 1599TAB |
Factory Lead Time: 20
|
1 - 1$17.50 2 - 4$17.20 5 - 9$16.90 ... |
|
|
1599TABLGY
Enclosures
RoHS Compliant
enclosure - plastic FRABS LARGE TABLET (9.45 x 7.48 x 1.19) Hammond PN 1599TABLGY : UPC [623980400655] Color: Light G… |
Hammond Mfg.
Series 1599TAB |
Factory Lead Time: 20
|
1 - 2$14.00 3 - 9$13.80 10 - 14$13.60 ... |
|
|
1599TABLGYBAT
Enclosures
RoHS Compliant
enclosure - plastic FRABS LARGE TABLET W BAT (9.45 x 7.48 x 1.19) Hammond PN 1599TABLGYBAT : UPC [623980400679] Color… |
Hammond Mfg.
Series 1599TAB |
Factory Lead Time: 20
|
1 - 1$17.50 2 - 4$17.20 5 - 9$16.90 ... |
|
|
1599TABMBK
Enclosures
RoHS Compliant
enclosure - plastic FRABS MEDIUM TABLET (6.67 x 5.31 x 1.06) Hammond PN 1599TABMBK : UPC [623980401164] Color: Black… |
Hammond Mfg.
Series 1599TAB |
Factory Lead Time: 20
|
1 - 2$12.30 3 - 9$12.10 10 - 14$11.90 ... |
|
|
1599TABMBKBAT
Enclosures
RoHS Compliant
enclosure - plastic FRABS MEDIUM TABLET W BAT (6.67 x 5.31 x 1.06) Hammond PN 1599TABMBKBAT : UPC [623980401171] Colo… |
Hammond Mfg.
Series 1599TAB |
Factory Lead Time: 20
|
1 - 2$15.80 3 - 9$15.50 10 - 14$15.30 ... |
|
|
1599TABMGY
Enclosures
RoHS Compliant
enclosure - plastic FRABS MEDIUM TABLET (6.67 x 5.31 x 1.06) Hammond PN 1599TABMGY : UPC [623980401188] Color: Black… |
Hammond Mfg.
Series 1599TAB |
Total Stock: 17
Factory Lead Time: 20
|
1 - 2$12.30 3 - 9$12.10 10 - 14$11.90 ... |
|
|
1599TABMGYBAT
Enclosures
RoHS Compliant
enclosure - plastic FRABS MEDIUM TABLET W BAT (6.67 x 5.31 x 1.06) Hammond PN 1599TABMGYBAT : UPC [623980401195] Colo… |
Hammond Mfg.
Series 1599TAB |
Factory Lead Time: 20
|
1 - 2$15.80 3 - 9$15.50 10 - 14$15.30 ... |
|
|
1599TABSBK
Enclosures
RoHS Compliant
enclosure - plastic FRABS SMALL TABLET (4.72 x 3.74 x 1.06) Hammond PN 1599TABSBK : UPC [623980845210] Color: Black… |
Hammond Mfg.
Series 1599TAB |
Factory Lead Time: 20
|
1 - 3$8.80 4 - 9$8.70 10 - 24$8.50 ... |
|
|
1599TABSBKBAT
Enclosures
RoHS Compliant
enclosure - plastic FRABS SMALL TABLET W BAT (4.72 x 3.74 x 1.06) Hammond PN 1599TABSBKBAT : UPC [623980845234] Color… |
Hammond Mfg.
Series 1599TAB |
Factory Lead Time: 20
|
1 - 2$11.80 3 - 9$11.60 10 - 14$11.40 ... |
1599TAB
