ABS Plastic Instrument Enclosures 1598R Series EMI/ RFI Copper Conductive Coating Inside
Key Features:
Desk top electronic instrument enclosure, ideally suited for mounting printed circuit boards.
Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).

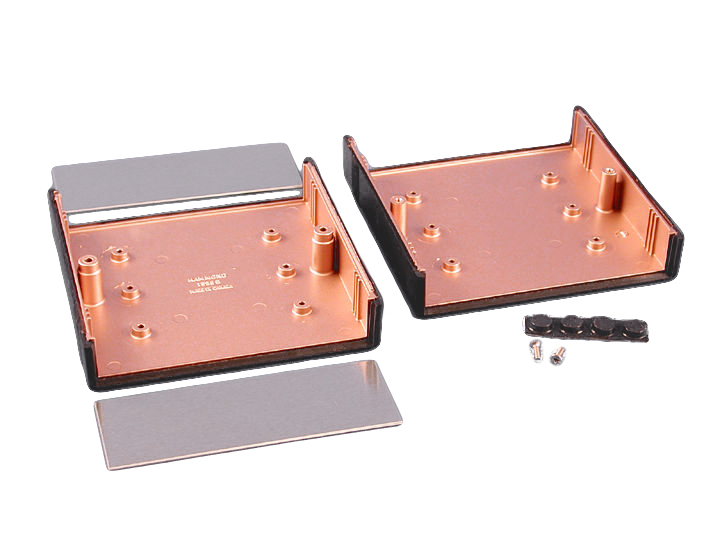

Interior of each enclosure half is specially masked and sprayed with an RFI/EMI copper conductive coating (see close up photo below).
Coating manufacturer specifies an attenuation of more than 75 db from 1 Mhz. to 1 Ghz.
Designed to meet IP54.
Two sets of vertical 1.5 mm (0.062”) P.C. board guides are molded into case halves front and rear.
Front and rear panels are 1.6 mm (0.064”) brushed aluminum with protective paper on one side.
Cases halves are secured with M3 x 0.5” x 10 mm (0.39”) Phillips machine screws threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
Integral horizontal P.C. card mounts on Eurocard centers.
P.C. card standoffs molded into top & bottom half of enclosure - require #6 x 1/4” (6.4mm) screws - part number 1598ATS100
Stocked in matte textured black.
Displaying 1 - 10 of 22
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
1598PLA-AL
Enclosures
hardware - aluminum end panels 2-pack ALUMINUM ENDPLATE SET Hammond PN 1598PLA-AL : UPC [623980403632] Color: Natura… |
Hammond Mfg.
Series 1598R |
Factory Lead Time: 20
|
3 - 49$1.00 50 - 99$0.98 100 - 199$0.96 ... |
|
|
1598PLB-AL
Enclosures
hardware - aluminum end panels , 2-pack ALUMINUM ENDPLATE SET Hammond PN 1598PLB-AL : UPC [623980403694] Color: Natur… |
Hammond Mfg.
Series 1598R |
Total Stock: 3
Factory Lead Time: 20
|
2 - 24$1.41 25 - 74$1.39 75 - 124$1.37 ... |
|
|
1598PLBB-AL
Enclosures
hardware - aluminum end panels , 2-pack ALUMINUM ENDPLATE SET Hammond PN 1598PLBB-AL : UPC [623980403656] Color: Natu… |
Hammond Mfg.
Series 1598R |
Factory Lead Time: 20
|
2 - 24$1.32 25 - 74$1.30 75 - 124$1.28 ... |
|
|
1598PLC-AL
Enclosures
hardware - aluminum end panels , 2-pack ALUMINUM ENDPLATE SET Hammond PN 1598PLC-AL : UPC [623980404714] Color: Natur… |
Hammond Mfg.
Series 1598R |
Total Stock: 1
Factory Lead Time: 20
|
2 - 24$1.72 25 - 49$1.69 50 - 99$1.66 ... |
|
|
1598PLD-AL
Enclosures
hardware - aluminum end panels , 2-pack ALUMINUM ENDPLATE SET Hammond PN 1598PLD-AL : UPC [623980404721] Color: Natur… |
Hammond Mfg.
Series 1598R |
Factory Lead Time: 20
|
2 - 24$2.07 25 - 49$2.03 50 - 99$2.00 ... |
|
|
1598PLE-AL
Enclosures
hardware - aluminum end panels , 2-pack ALUMINUM ENDPLATE SET Hammond PN 1598PLE-AL : UPC [623980404738] Color: Natur… |
Hammond Mfg.
Series 1598R |
Factory Lead Time: 20
|
1 - 14$2.49 15 - 49$2.45 50 - 74$2.41 ... |
|
|
1598PLF-AL
Enclosures
hardware - aluminum end panels , 2-pack ALUMINUM ENDPLATE SET Hammond PN 1598PLF-AL : UPC [623980404745] Color: Natur… |
Hammond Mfg.
Series 1598R |
Factory Lead Time: 20
|
2 - 24$1.44 25 - 74$1.42 75 - 124$1.39 ... |
|
|
1598PLG-AL
Enclosures
hardware - aluminum end panels , 2-pack ALUMINUM ENDPLATE SET Hammond PN 1598PLG-AL : UPC [623980404752] Color: Natur… |
Hammond Mfg.
Series 1598R |
Total Stock: 15
Factory Lead Time: 20
|
1 - 14$2.25 15 - 49$2.21 50 - 74$2.18 ... |
|
|
1598PLH-AL
Enclosures
hardware - aluminum end panels , 2-pack ALUMINUM ENDPLATE SET Hammond PN 1598PLH-AL : UPC [623980404769] Color: Natur… |
Hammond Mfg.
Series 1598R |
Factory Lead Time: 20
|
2 - 24$1.67 25 - 49$1.64 50 - 99$1.61 ... |
|
|
1598PLJ-AL
Enclosures
hardware - aluminum end panels , 2-pack ALUMINUM ENDPLATE SET Hammond PN 1598PLJ-AL : UPC [623980404776] Color: Natur… |
Hammond Mfg.
Series 1598R |
Factory Lead Time: 20
|
1 - 14$2.69 15 - 49$2.65 50 - 74$2.60 ... |
