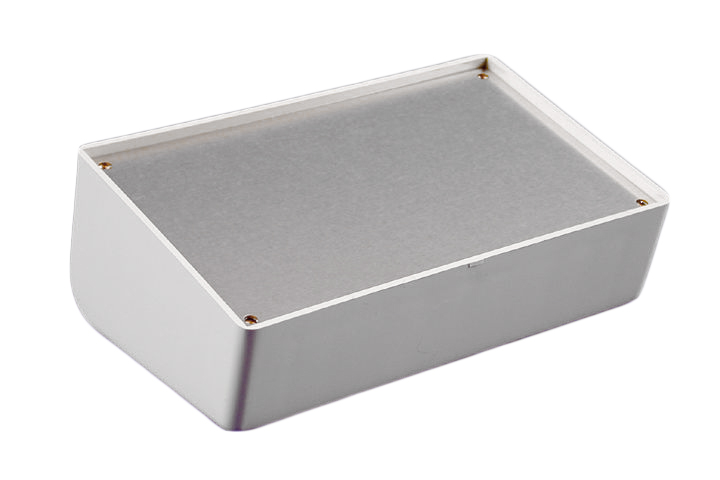

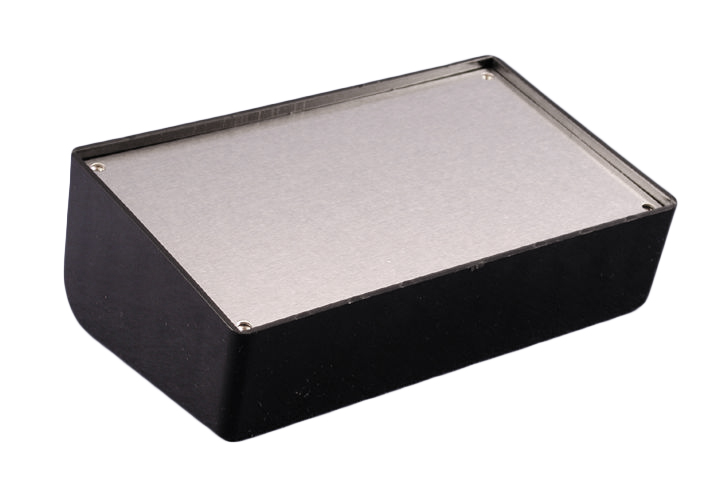

Plastic Console Enclosures 1595 Series ABS Plastic Body w/ Aluminum Cover Plate
Features:
Desk top electronic instrument enclosure, ideally suited for mounting printed circuit boards.
Standard versions are molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
Economy versions are molded from general purpose ABS plastic (UL94-HB).

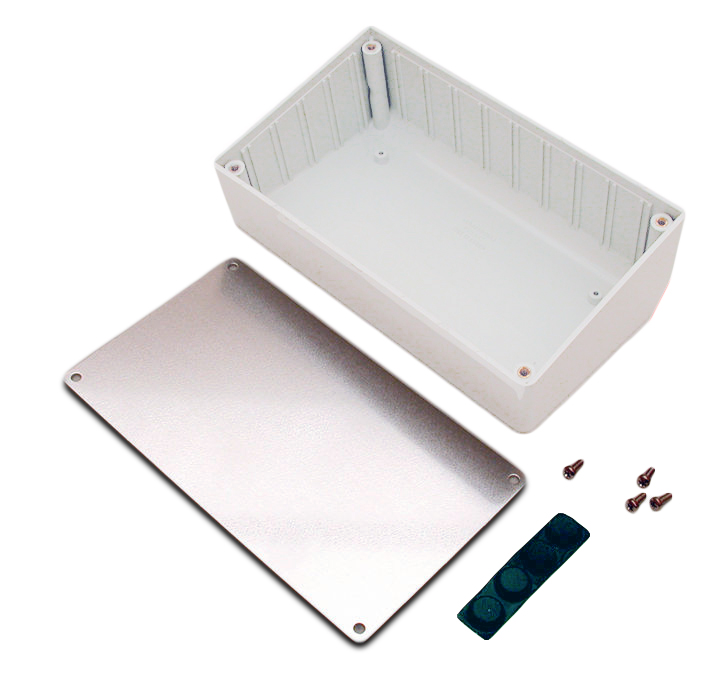

Two piece construction. Integral card guides accept 1.5 mm (0.062”) P.C. cards. 0.20” diameter stand off bosses in the base for supporting various subassemblies.
Integral brass bushings with four M3 x 0.5” x 8 mm (0.31”) Phillips pan head screws hold recessed panel into sloping front of case.
1.01 mm (0.04”) aluminum panel with paper on one side.
Four self-adhesive feet included.
Stocked in black and grey.
Displaying 1 - 4 of 4
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
1595CBK
Enclosures
 RoHS Compliant
enclosure - plastic PLASTIC CONSOLE 6.3X3.8X2.3C90 (6.34 x 3.78 x 2.28) Hammond PN 1595CBK : UPC [623980563909] Color… |
Hammond Mfg.
Series 1595 |
Total Stock: 34
Factory Lead Time: 20
|
1 - 2$11.60 3 - 9$11.40 10 - 14$11.20 ... |
|
|
1595CGY
Enclosures
RoHS Compliant
enclosure - plastic PLASTIC CONSOLE 6.3X3.8X2.3C90 (6.34 x 3.78 x 2.28) Hammond PN 1595CGY : UPC [623980564203] Color… |
Hammond Mfg.
Series 1595 |
Total Stock: 2
Factory Lead Time: 20
|
1 - 2$11.60 3 - 9$11.40 10 - 14$11.20 ... |
|
|
1595EBK
Enclosures
RoHS Compliant
enclosure - plastic 1598gsgy (8.46 x 5.12 x 2.95) Hammond PN 1595EBK : UPC [623980564401] Color: Black |
Hammond Mfg.
Series 1595 |
Total Stock: 2
Factory Lead Time: 20
|
1 - 2$14.40 3 - 9$14.10 10 - 14$13.90 ... |
|
|
1595EGY
Enclosures
RoHS Compliant
enclosure - plastic PLASTIC CONSOLE 8.5X5.1X2.9C90 (8.46 x 5.12 x 2.95) Hammond PN 1595EGY : UPC [623980564609] Color… |
Hammond Mfg.
Series 1595 |
Total Stock: 1
Factory Lead Time: 20
|
1 - 2$14.40 3 - 9$14.10 10 - 14$13.90 ... |
