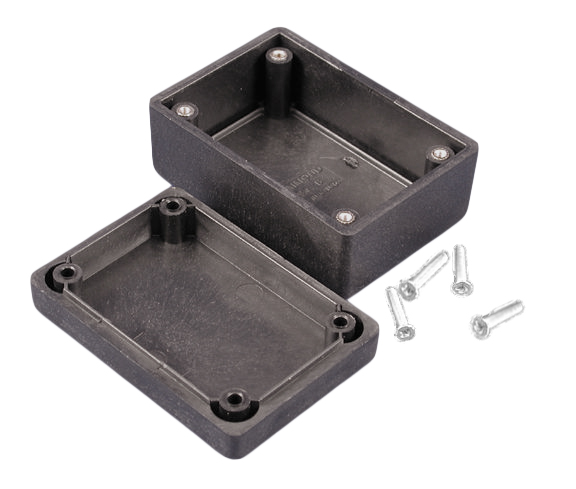

Thick-Wall Plastic Enclosures w/ EMI/ RFI Shielding 1594RFI Series Molded w/ Conductive Plastic
Features:
Designed for EMI/RFI shielding applications - using conductive plastic (a compound of plastic and stainless steel fibers).
For shielding effectiveness reports see “recommended reading” section below.
Electronic instrument enclosures, ideally suited for mounting printed circuit boards.
Thick wall design with an average wall thickness of 0.13” (3.3 mm).
Molded from a compound of stainless steel fibers and flame retardant ABS plastic (carries a UL flammability rating of 94V-0).
Designed to meet IP54.
NOTE: Material is brittle - acts like phenolic - NOT FOR HIGH IMPACT USE.
Countersunk lid is secured with four M3 x 0.5 - 0.71” (18 mm) long, Philips machine screws threaded into integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
Replacement screws sold in packs of 100. Part number 1594MS100
Black with matte textured finish.
Displaying 1 - 5 of 5
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
1594RFIABK
Enclosures
 RoHS Compliant
enclosure - plastic 1594 SHIELDED FILLED PLAST (2.2 x 2.2 x 1.1) Hammond PN 1594RFIABK : UPC [623980582269] Color: Bl… |
Hammond Mfg.
Series 1594RFI |
Factory Lead Time: 20
|
1 - 2$12.50 3 - 9$12.30 10 - 14$12.10 ... |
|
|
1594RFICBK
Enclosures
RoHS Compliant
enclosure - plastic 1594C SHIELDED COND. PLAST. (4.1 x 2.6 x 1.3) Hammond PN 1594RFICBK : UPC [623980582283] Color: B… |
Hammond Mfg.
Series 1594RFI |
Factory Lead Time: 20
|
1 - 1$16.80 2 - 4$16.50 5 - 9$16.20 ... |
|
|
1594RFIDBK
Enclosures
RoHS Compliant
enclosure - plastic 1594D SHIELDED COND. PLAST. (5.2 x 2.6 x 1.7) Hammond PN 1594RFIDBK : UPC [623980582290] Color: B… |
Hammond Mfg.
Series 1594RFI |
Total Stock: 1
Factory Lead Time: 20
|
1 - 1$20.90 2 - 3$20.50 4 - 9$20.20 ... |
|
|
1594RFIEBK
Enclosures
RoHS Compliant
enclosure - plastic 1594E SHIELDED COND. PLAST. (6.6 x 4.2 x 2.1) Hammond PN 1594RFIEBK : UPC [623980582306] Color: B… |
Hammond Mfg.
Series 1594RFI |
Factory Lead Time: 20
|
1 - 1$29.80 2 - 2$29.30 3 - 9$28.80 ... |
|
|
1594RFIBBK
Enclosures
RoHS Compliant
enclosure - plastic 1594B SHIELDED COND. PLAST. (3.2 x 2.2 x 1.1) Hammond PN 1594RFIBBK : UPC [623980582276] Color: B… |
Hammond Mfg.
Series 1594RFI |
Factory Lead Time: 20
|
1 - 2$13.50 3 - 9$13.30 10 - 14$13.10 ... |
