1585-6-7-8-S

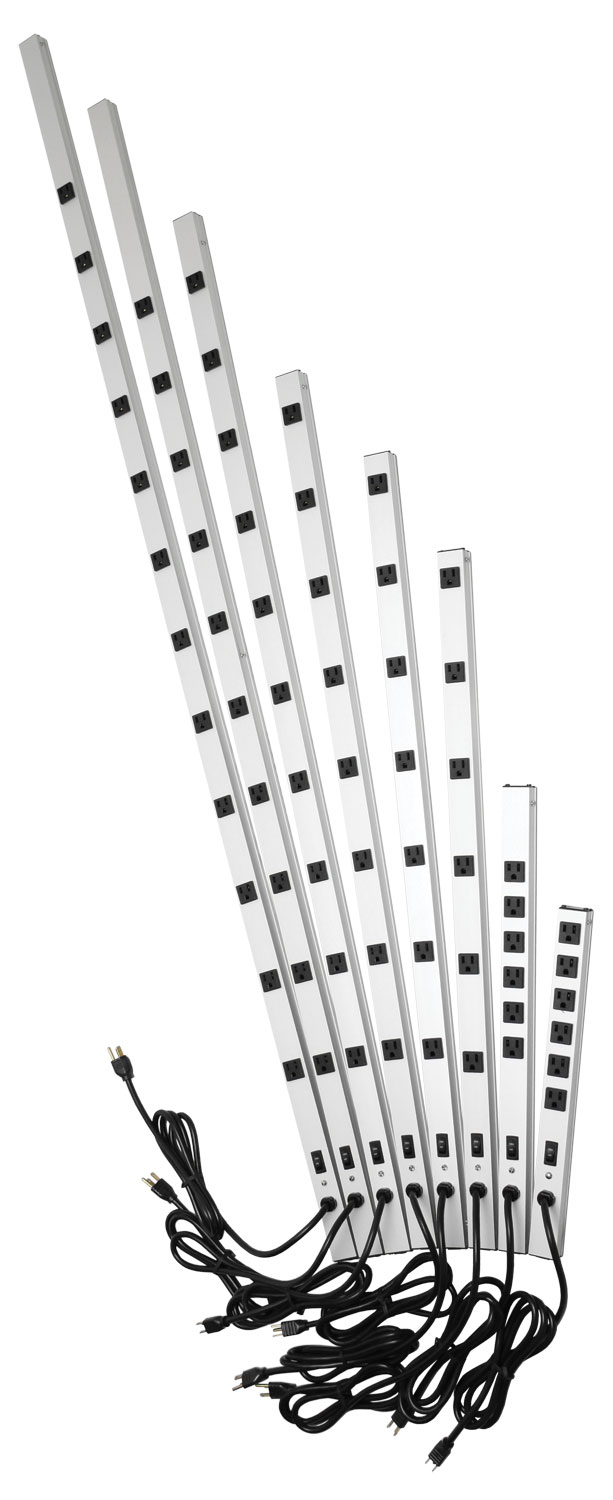

15 Amp Vertical Rackmount Surge Strip 1585-6-7-8-S Series

Features:
Low-profile slim design.
Constructed of rugged light weight aluminum.
Designed for a variety of applications:

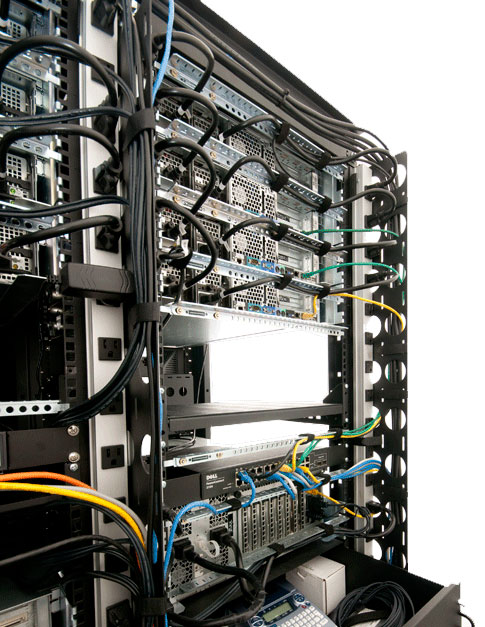

Install in your server cabinets
Wall mount cabinets
Open frame racks
Or install horizontally above your work bench.
Each outlet strip included a hardware mounting kit. Order P/N: 1585CLIP for additional hardware kit.
Receptacles are 1” square and are equally spaced over the length of the power strip.
With on/off switch or pilot light and 15 Amp circuit breaker.
Plug type available is a NEMA 5-15P straight blade.

Surge Features:
Rated 15 amps, 120 volts.
Heavy duty 14 gauge wire cord - 14/3 SJT type for extreme temperature ranges and integral molded plug.
18,000 Amp rated MOV's & filter capacitor provide surge suppression and EMI/RFI noise protection.
Maximum 54,000 Amps transient current and 780 Joules.
400V Clamp Rating.
Protection in all 3 AC modes (L-N, L-G, N-G).
Voltage suppression at the outlet guards against transients from equipment on the outlet strip.
Green indicator light confirms surge module is active.
Internal protection will disconnect the surge module at the end of it's useful life (and extinguish the green light) but will maintain power to the load, now unprotected.
CSA certified, Standards C22.2 (No. 21-95, No. 42-99 and No. 8-M1986).
