Hawk Electronics
Filters1582-AM

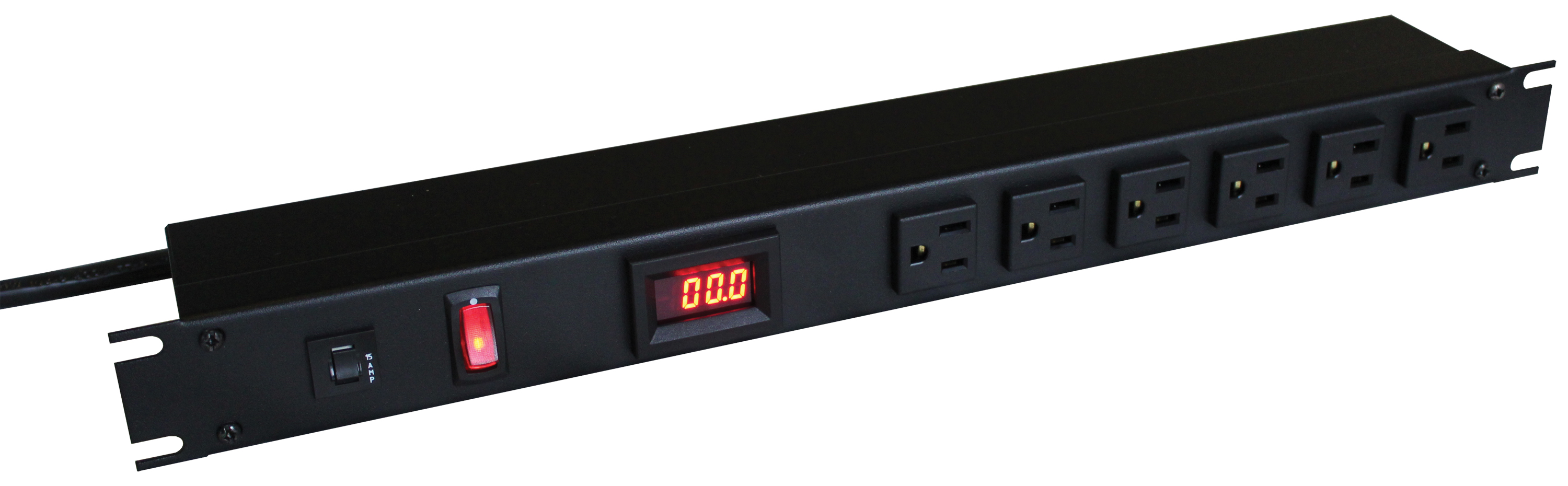

15 Amp Metered Horizontal Rackmount Outlet Strip 1582-AM Series Front or Rear Mounted Receptacles
Features:
Designed for power distribution for the front or the rear of the unit.
1U horizontal 19" rackmount installation.
Available with lighted on/off switch or red pilot light to indicate power on.
Available in black powder coat finish.
Specifications:

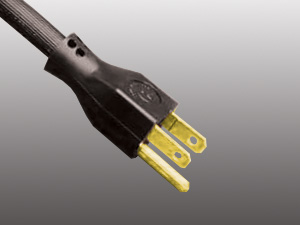

Heavy duty 14 gauge wire cord - 14/3 SJT type for extreme temperature ranges and integral molded plug.
Includes 15 Amp, 125 VAC circuit breaker to prevent accidental overload.
Unit includes - easy to read 0.37" high, red LED ammeter (1.38" x 0.88" display).
Digital ammeter accuracy +/- 0.1 Amps
UL/cUL recognized Standard UL1363 file No. E166039 & CSA C22.2 No. 308-14 & CSA C22.2 No. 0.4-04
Displaying 1 - 8 of 8
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
1582T6A1BKAM
Enclosures
 RoHS Compliant
Hammond 1582T6A1BK WITH AMMETER Part Number 1582T6A1BKAM [UPC 62398053647 ] |
Hammond Mfg.
Series 1582-AM |
Factory Lead Time: 20
|
1 - 1$232.00 2 - 2$228.20 3 - 4$224.60 ... |
|
|
1582H6A1BKAM
Enclosures
RoHS Compliant
Hammond 1582H6A1BK WITH AMMETER Part Number 1582H6A1BKAM [UPC 62398053645 ] |
Hammond Mfg.
Series 1582-AM |
Factory Lead Time: 20
|
1 - 1$232.00 2 - 2$228.20 3 - 4$224.60 ... |
|
|
1582H6B1BKAM
Enclosures
RoHS Compliant
Hammond 1582H6B1BK WITH AMMETER Part Number 1582H6B1BKAM [UPC 62398053646 ] |
Hammond Mfg.
Series 1582-AM |
Factory Lead Time: 20
|
1 - 1$239.80 2 - 2$235.90 3 - 4$232.10 ... |
|
|
1582T6B1BKAM
Enclosures
RoHS Compliant
Hammond 1582T6B1BK WITH AMMETER Part Number 1582T6B1BKAM [UPC 62398053648 ] |
Hammond Mfg.
Series 1582-AM |
Factory Lead Time: 20
|
1 - 1$239.80 2 - 2$235.90 3 - 4$232.10 ... |
|
|
1583H6A1BKAM
Enclosures
RoHS Compliant
Hammond 1583H6A1BK WITH AMMETER Part Number 1583H6A1BKAM [UPC 62398013793 ] |
Hammond Mfg.
Series 1582-AM |
Factory Lead Time: 20
|
1 - 1$232.00 2 - 2$228.20 3 - 4$224.60 ... |
|
|
1583H6B1BKAM
Enclosures
RoHS Compliant
Hammond 1583H6B1BK WITH AMMETER Part Number 1583H6B1BKAM [UPC 62398013794 ] |
Hammond Mfg.
Series 1582-AM |
Factory Lead Time: 20
|
1 - 1$239.80 2 - 2$235.90 3 - 4$232.10 ... |
|
|
1583T6A1BKAM
Enclosures
RoHS Compliant
Hammond 1583T6A1BK WITH AMMETER Part Number 1583T6A1BKAM [UPC 62398013795 ] |
Hammond Mfg.
Series 1582-AM |
Factory Lead Time: 20
|
1 - 1$232.00 2 - 2$228.20 3 - 4$224.60 ... |
|
|
1583T6B1BKAM
Enclosures
RoHS Compliant
Hammond 1583T6B1BK WITH AMMETER Part Number 1583T6B1BKAM [UPC 62398013796 ] |
Hammond Mfg.
Series 1582-AM |
Factory Lead Time: 20
|
1 - 1$239.80 2 - 2$235.90 3 - 4$232.10 ... |
1582-AM
