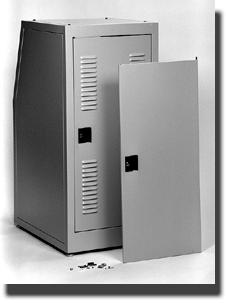

Modular Rack Mount Consoles 1564 Series 600 lbs Weight Capacity
Features:
Constructed in 14-gauge steel (frame) and 14-gauge steel (rails).

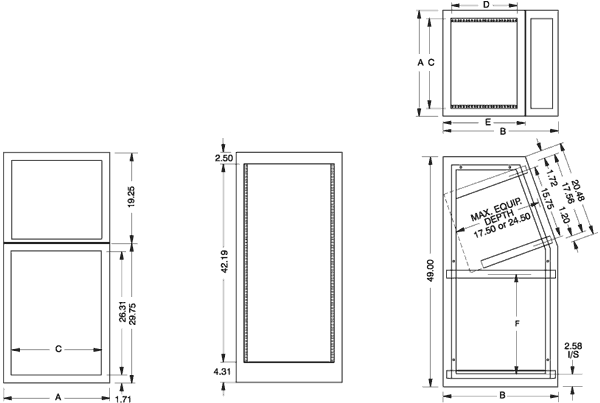

Choice of two depths 24.5”, 31.5” usable depth.
Sloped panel height of 17.5" (10 U).
Front panel height of 26.25" (15U).
Finished in textured black powder paint.
Tested to nearly double the suggested load rating of 600 lbs (272 kg).
TAA Compliant.
RoHS Compliant.
Manufactured in North America.
Unit is Shipped Complete with:
Two (2) pairs of EIA-310-D compliant pre-installed upper and lower round hole punched mounting rails
One (1) Set of four (4) leveling feet
Displaying 1 - 5 of 5
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
PBRS19021BK2
Enclosures
 RoHS Compliant
Hammond RAISED STEEL PANEL Part Number PBRS19021BK2 [UPC 62398040962 ] |
Hammond Mfg.
Series 1564 |
Total Stock: 4
Factory Lead Time: 28
|
1 - 2$35.60 3 - 4$35.01 5 - 9$34.52 ... |
|
|
RSDL19026BK1
Enclosures
RoHS Compliant
Hammond LOUVRED FLUSH DOOR Part Number RSDL19026BK1 [UPC 62398032621 ] |
Hammond Mfg.
Series 1564 |
Factory Lead Time: 28
|
1 - 1$119.10 2 - 2$117.41 3 - 4$115.62 ... |
|
|
PBRS19014BK2
Enclosures
RoHS Compliant
Hammond RAISED STEEL PANE Part Number PBRS19014BK2 [UPC 62398062025 ] |
Hammond Mfg.
Series 1564 |
Factory Lead Time: 28
|
1 - 1$28.90 2 - 2$28.51 3 - 9$28.02 ... |
|
|
1564A2BK1
Enclosures
RoHS Compliant
Hammond 1564A2BK1 SLOPE CONSOLE FRAME rack |
Hammond Mfg.
Series 1564 |
Factory Lead Time: 28
|
1 - 1$975.00 2 - 2$963.01 3 - 9$952.02 ... |
|
|
1564APBK1
Enclosures
RoHS Compliant
Hammond 1564APBK1 SIDE PANEL FOR 24.5 DEEP rack |
Hammond Mfg.
Series 1564 |
Factory Lead Time: 28
|
1 - 1$202.30 2 - 2$199.41 3 - 9$196.52 ... |
