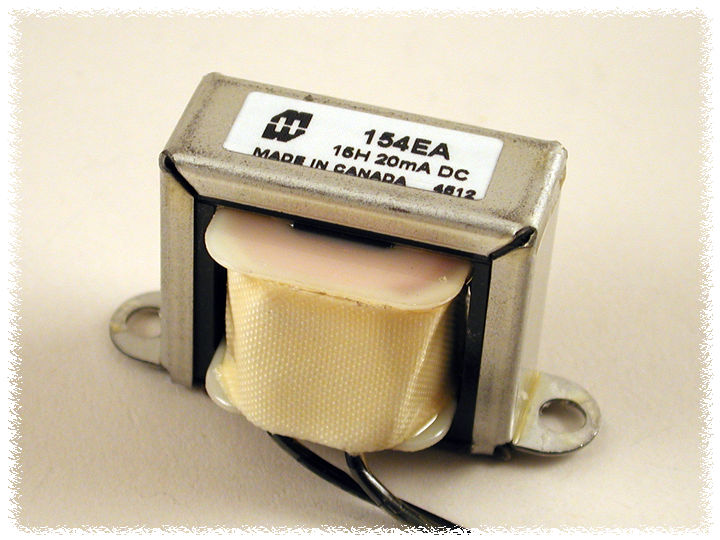

D.C. Reactors or filter chokes 153-159 Series Low to medium current
Features:
Economical "open bracket" - channel mount.
Tolerance of 15% on both inductance & resistance.
Inductances measured at rated D.C. current.
Minimum 5" long leads.
Units will exhibit less inductance at slightly higher currents or more inductance at lower currents.
Perfect for high voltage power supply filtering.
Every unit is Hipot tested (100%) at 1,500 VAC
Units are vacuum impregnated with polyurethane varnish for quiet and long life operation.
For more sizes and voltages (enclosed type) - link here to our 193 Series.
Displaying 1 - 10 of 54
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
154B
Enclosures
 RoHS Compliant
DC reactor, filter choke, open channel mount, inductance 3mH, DC current 1.5 A NOISE FILTER CHOKE Hammond PN 154B : U… |
Hammond Mfg.
Series 153-159 |
Total Stock: 26
Drop Ship Quantity: 25
Factory Lead Time: 20
|
1 - 2$14.20 3 - 9$13.90 10 - 14$13.70 ... |
|
|
155T
Enclosures
RoHS Compliant
Hammond DC reactor, filter choke, open channel mount, inductance 0.5H, DC current 300 ma. Part Number 155T [UPC 62398… |
Hammond Mfg.
Series 153-159 |
Total Stock: 56
Drop Ship Quantity: 55
Factory Lead Time: 20
|
1 - 3$8.60 4 - 9$8.40 10 - 24$8.30 ... |
|
|
157E
Enclosures
RoHS Compliant
Hammond DC reactor, filter choke, open channel mount, inductance 6mH, DC current 4A Part Number 157E [UPC 62398018617… |
Hammond Mfg.
Series 153-159 |
Total Stock: 277
Drop Ship Quantity: 275
Factory Lead Time: 20
|
1 - 2$32.70 3 - 4$32.10 5 - 9$31.60 ... |
|
|
155C
Enclosures
RoHS Compliant
Hammond DC reactor, filter choke, open channel mount, inductance 60H, DC current 8 ma. Part Number 155C [UPC 62398020… |
Hammond Mfg.
Series 153-159 |
Total Stock: 3
Factory Lead Time: 20
|
1 - 1$16.90 2 - 4$16.60 5 - 9$16.40 ... |
|
|
155G
Enclosures
RoHS Compliant
Hammond DC reactor, filter choke, open channel mount, inductance 7H, DC current 40 ma. Part Number 155G [UPC 62398020… |
Hammond Mfg.
Series 153-159 |
Factory Lead Time: 20
|
1 - 1$17.20 2 - 4$16.90 5 - 9$16.60 ... |
|
|
155H
Enclosures
RoHS Compliant
Hammond DC reactor, filter choke, open channel mount, inductance 5H, DC current 50 ma. Part Number 155H [UPC 62398020… |
Hammond Mfg.
Series 153-159 |
Total Stock: 6
Factory Lead Time: 20
|
1 - 1$17.50 2 - 4$17.20 5 - 9$16.90 ... |
|
|
155J
Enclosures
RoHS Compliant
Hammond DC reactor, filter choke, open channel mount, inductance 15H, DC current 30 ma. Part Number 155J [UPC 6239802… |
Hammond Mfg.
Series 153-159 |
Total Stock: 11
Factory Lead Time: 20
|
1 - 1$18.10 2 - 4$17.80 5 - 9$17.50 ... |
|
|
156B
Enclosures
RoHS Compliant
Hammond DC reactor, filter choke, open channel mount, inductance 1.5mH, DC current 5A Part Number 156B [UPC 623980202… |
Hammond Mfg.
Series 153-159 |
Factory Lead Time: 20
|
1 - 1$17.70 2 - 4$17.40 5 - 9$17.10 ... |
|
|
156G
Enclosures
RoHS Compliant
Hammond DC reactor, filter choke, open channel mount, inductance 9H, DC current 40 ma. Part Number 156G [UPC 62398020… |
Hammond Mfg.
Series 153-159 |
Factory Lead Time: 20
|
1 - 1$16.90 2 - 4$16.60 5 - 9$16.40 ... |
|
|
156LA
Enclosures
RoHS Compliant
Hammond DC reactor, filter choke, open channel mount, inductance 7H, DC current 75 ma. Part Number 156LA [UPC 6239802… |
Hammond Mfg.
Series 153-159 |
Factory Lead Time: 20
|
1 - 1$25.60 2 - 3$25.20 4 - 9$24.80 ... |
