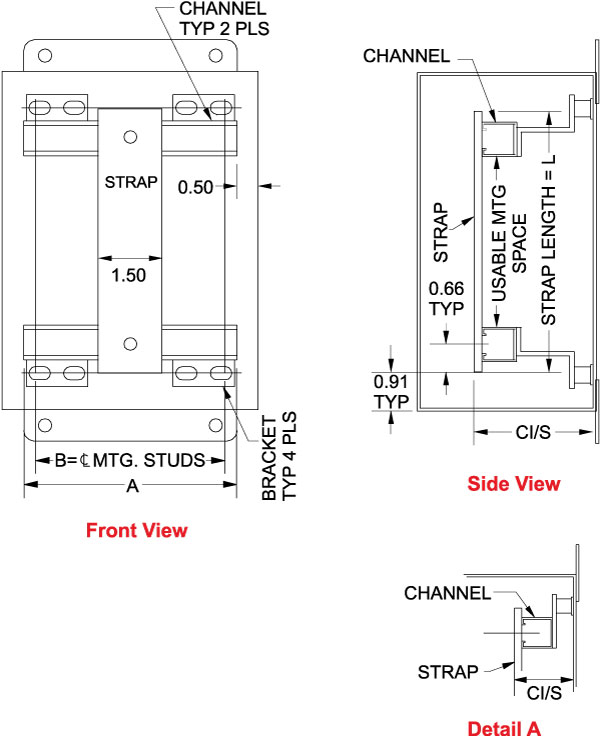

Terminal Straps and Brackets 1414/EJ/PJ Series Enclosures
Features:
Used to provide convenient mounting for terminal blocks in 1414 Series enclosures and some sizes of "PJ" Series enclosures.
Finished in white.
Bracket Assembly:
Each kit consists of two brackets.
"C" channel construction provides easy alignment of terminal straps.
Terminal Strap:
1.5" wide x 0.187" thick steel.
Each strap includes spring locking hardware.
Countersunk holes in straps provide extra terminal mounting space.
How to Order:
Each enclosure requires one bracket assembly kit and the required number of straps (Strap Part No. corresponds to enclosure dimension "A" and is mounted parallel to same, Bracket Part No. corresponds to enclosure dimension "B" and is mounted parallel to same).
Example: For a PJ864L enclosure, order one 14B6 bracket assembly and a minimum of one 14B8 terminal strap kits. Additional terminal strap kits will provide additional mounting space.
Displaying 1 - 10 of 10
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
14B10
Enclosures
 RoHS Compliant
Terminal Bracket - Qty 2 - Fits 10" w encl - Steel/Wht TERMINAL BRACKET L9 Hammond PN 14B10 : UPC [623980338804]… |
Hammond Mfg.
Series 14TK |
Total Stock: 2
Factory Lead Time: 55
|
1 - 1$23.20 2 - 3$22.80 4 - 9$22.40 ... |
|
|
14B12
Enclosures
RoHS Compliant
Terminal Bracket - Qty 2 - Fits 12" w encl - Steel/Wht TERMINAL BRACKET L11 Hammond PN 14B12 : UPC [623980338903… |
Hammond Mfg.
Series 14TK |
Factory Lead Time: 55
|
1 - 1$24.30 2 - 3$23.90 4 - 9$23.50 ... |
|
|
14B14
Enclosures
RoHS Compliant
Terminal Bracket - Qty 2 - Fits 14" w encl - Steel/Wht TERMINAL BRACKET L13 Hammond PN 14B14 : UPC [623980339009… |
Hammond Mfg.
Series 14TK |
Factory Lead Time: 55
|
1 - 1$25.40 2 - 3$25.00 4 - 9$24.60 ... |
|
|
14B6
Enclosures
RoHS Compliant
Terminal Bracket - Qty 2 - Fits 6" w encl - Steel/Wht TERMINAL BRACKET L5 Hammond PN 14B6 : UPC [623980338606]… |
Hammond Mfg.
Series 14TK |
Factory Lead Time: 55
|
1 - 1$20.60 2 - 3$20.30 4 - 9$19.90 ... |
|
|
14B8
Enclosures
RoHS Compliant
Terminal Bracket - Qty 2 - Fits 8" w encl - Steel/Wht TERMINAL BRACKET L7 Hammond PN 14B8 : UPC [623980338705]… |
Hammond Mfg.
Series 14TK |
Factory Lead Time: 55
|
1 - 1$22.00 2 - 3$21.60 4 - 9$21.30 ... |
|
|
14S10
Enclosures
RoHS Compliant
Terminal Strap - Fits 10" h encl - Steel/Wht TERMINAL BRACKET L8 Hammond PN 14S10 : UPC [623980341408] |
Hammond Mfg.
Series 14TK |
Factory Lead Time: 20
|
1 - 2$11.50 3 - 9$11.30 10 - 14$11.10 ... |
|
|
14S12
Enclosures
RoHS Compliant
Terminal Strap - Fits 12" h encl - Steel/Wht TERMINAL BRACKET L10 Hammond PN 14S12 : UPC [623980341507] |
Hammond Mfg.
Series 14TK |
Total Stock: 2
Factory Lead Time: 20
|
1 - 2$12.00 3 - 9$11.80 10 - 14$11.60 ... |
|
|
14S14
Enclosures
RoHS Compliant
Terminal Strap - Fits 14" h encl - Steel/Wht TERMINAL BRACKET L12 Hammond PN 14S14 : UPC [623980341606] |
Hammond Mfg.
Series 14TK |
Factory Lead Time: 20
|
1 - 2$12.70 3 - 9$12.50 10 - 14$12.30 ... |
|
|
14S16
Enclosures
RoHS Compliant
Terminal Strap - Fits 16" h encl - Steel/Wht TERMINAL BRACKET L14 Hammond PN 14S16 : UPC [623980341705] |
Hammond Mfg.
Series 14TK |
Factory Lead Time: 20
|
1 - 2$13.40 3 - 9$13.20 10 - 14$12.90 ... |
|
|
14S8
Enclosures
RoHS Compliant
Terminal Strap - Fits 8" h encl - Steel/Wht TERMINAL BRACKET L6 Hammond PN 14S8 : UPC [623980341309] |
Hammond Mfg.
Series 14TK |
Factory Lead Time: 20
|
1 - 3$10.80 4 - 9$10.60 10 - 24$10.50 ... |
