Type 12 Mild Steel Pushbutton Enclosures 1490 Series Sloped Consolet
Application:

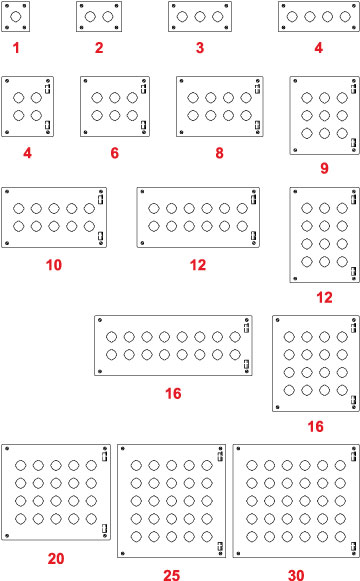

Designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights.
Ideal for wall or surface mounting to provide the necessary control slope.
Provides protection from dirt, dust, oil and water.
Standards:
UL 508A Type 12 and 13
CSA Type 12 and 13
Complies with
NEMA Type 12 and 13
IEC 60529, IP54
Appropriate components are required to maintain these standards.
Construction:
Formed 14 gauge steel.
Smooth continuously welded seams.

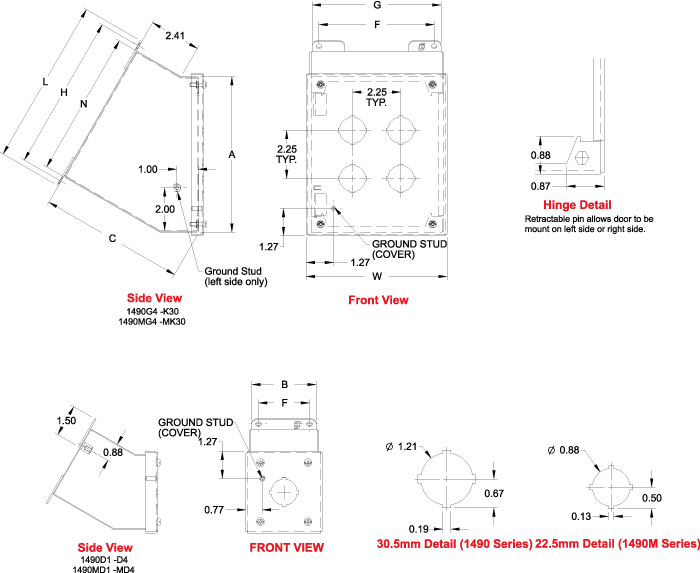

Construction provides either a 30° or 60° slope on front cover depending on mounting position.
Welded brackets provide for enclosure mounting.
Captive cover screws thread into sealed wells.
Larger enclosures provide internally hinged removable covers designed to hold the cover open during wiring (as noted in table).
Oil resistant gasket and adhesive.
A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
Finish:
Cover and enclosure are phosphat
Displaying 1 - 10 of 32
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
1490MD4
Enclosures
 RoHS Compliant
N12 PB Consolet - 4 PB x 22.5mm - Steel/Gray 4 PB 22MM 3.5X10X4.9 (3.5 x 10 x 4.9) Hammond PN 1490MD4 : UPC [62398009… |
Hammond Mfg.
Series 1490 |
Total Stock: 20
Drop Ship Quantity: 20
Factory Lead Time: 55
|
1 - 1$121.10 2 - 2$119.10 3 - 4$117.20 ... |
|
|
1490MG6
Enclosures
RoHS Compliant
N12 PB Consolet - 6 PB x 22.5mm - Steel/Gray 6 PB 22MM 7.3X8.5X6.8 (7.25 x 8.5 x 6.75) Hammond PN 1490MG6 : UPC [6239… |
Hammond Mfg.
Series 1490 |
Total Stock: 25
Drop Ship Quantity: 25
Factory Lead Time: 55
|
1 - 1$156.20 2 - 3$151.10 4 - 9$148.70 ... |
|
|
1490D1
Enclosures
RoHS Compliant
N12 PB Consolet - 1 PB x 30.5mm - Steel/Gray N12 SLPG FRNT P/B BOX (3.5 x 3.3 x 4.9) Hammond PN 1490D1 : UPC [6239804… |
Hammond Mfg.
Series 1490 |
Factory Lead Time: 55
|
1 - 1$83.30 2 - 3$81.90 4 - 9$80.60 ... |
|
|
1490D3
Enclosures
RoHS Compliant
N12 PB Consolet - 3 PB x 30.5mm - Steel/Gray N12 SLPG FRNT P/B BOX (3.5 x 7.8 x 4.9) Hammond PN 1490D3 : UPC [6239804… |
Hammond Mfg.
Series 1490 |
Factory Lead Time: 55
|
1 - 1$111.50 2 - 2$109.60 3 - 4$107.90 ... |
|
|
1490D4
Enclosures
RoHS Compliant
N12 PB Consolet - 4 PB x 30.5mm - Steel/Gray N12 SLPG FRNT P/B BOX (3.5 x 10 x 4.9) Hammond PN 1490D4 : UPC [62398047… |
Hammond Mfg.
Series 1490 |
Factory Lead Time: 55
|
1 - 1$125.20 2 - 2$123.20 3 - 4$121.20 ... |
|
|
1490G10
Enclosures
RoHS Compliant
N12 PB Consolet - 10 PB x 30.5mm - Steel/Gray N12 SLPG FRNT P/B BOX (7.25 x 13 x 6.75) Hammond PN 1490G10 : UPC [6239… |
Hammond Mfg.
Series 1490 |
Factory Lead Time: 55
|
1 - 1$198.30 2 - 2$195.10 3 - 9$192.00 ... |
|
|
1490G12
Enclosures
RoHS Compliant
N12 PB Consolet - 12 PB x 30.5mm - Steel/Gray N12 SLPG FRNT P/B BOX (7.25 x 15.25 x 6.75) Hammond PN 1490G12 : UPC [6… |
Hammond Mfg.
Series 1490 |
Factory Lead Time: 55
|
1 - 1$217.90 2 - 2$214.40 3 - 4$211.00 ... |
|
|
1490G16
Enclosures
RoHS Compliant
N12 PB Consolet - 16 PB x 30.5mm - Steel/Gray N12 SLPG FRNT P/B BOX (7.25 x 19.75 x 6.75) Hammond PN 1490G16 : UPC [6… |
Hammond Mfg.
Series 1490 |
Factory Lead Time: 55
|
1 - 1$252.40 2 - 2$248.30 3 - 4$244.40 ... |
|
|
1490G4
Enclosures
RoHS Compliant
N12 PB Consolet - 4 PB x 30.5mm - Steel/Gray N12 SLPG FRNT P/B BOX (7.25 x 6.25 x 6.75) Hammond PN 1490G4 : UPC [6239… |
Hammond Mfg.
Series 1490 |
Factory Lead Time: 55
|
1 - 1$139.70 2 - 3$135.20 4 - 9$133.00 ... |
|
|
1490G6
Enclosures
RoHS Compliant
N12 PB Consolet - 6 PB x 30.5mm - Steel/Gray N12 SLPG FRNT P/B BOX (7.25 x 8.5 x 6.75) Hammond PN 1490G6 : UPC [62398… |
Hammond Mfg.
Series 1490 |
Factory Lead Time: 55
|
1 - 1$159.00 2 - 3$156.50 4 - 9$154.00 ... |
