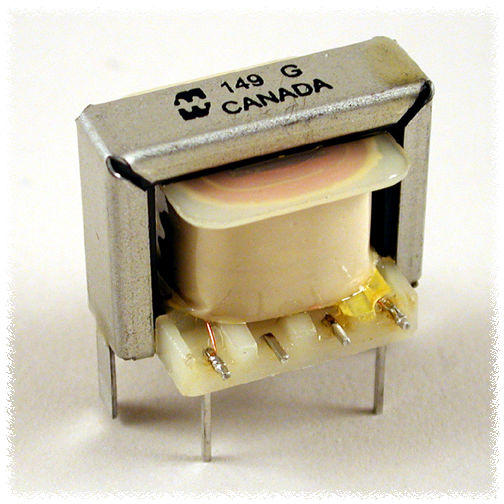

Audio Open Frame 149 Series PC Board Mount
Features:
Pin type (0.25" length & 0.025" square), P.C. board mount.
Economical, open type, horizontal bracket construction.
Includes clinching lugs for extra mounting strength.
Frequency response 200 Hz. - 15 Khz. (+/- 1 db, ref. @ 1 Khz.).
Total distortion approximately 2% for drivers and 1% for outputs at 200 Hz., decreasing at higher frequencies.
Insertion loss less than 1/2 db.

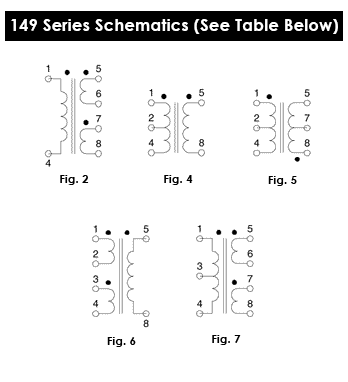

Bifilar wound for balanced capacitive and resistance characteristics, on pin bobbins for standard 0.2" grid pin spacing.
Insulation test 250V rms.
For rugged epoxy cast type units refer to our 102, 104, 106 or 107, 108 and 109 series.
Net weight: 0.6 oz. (148 Series) & 1.0 oz. (149 Series).
Displaying 1 - 10 of 10
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
149E
Enclosures
 RoHS Compliant
Audio transformer, open frame PC board mount, Driver, 300:30/120 ohms AUDIO TX DRIVER PC MOUNT Hammond PN 149E : UPC… |
Hammond Mfg.
Series 149 |
Factory Lead Time: 20
|
1 - 1$19.90 2 - 4$19.60 5 - 9$19.30 ... |
|
|
149C
Enclosures
RoHS Compliant
Audio transformer, open frame PC board mount, Driver, 160:20/80 ohms AUDIO TX DRIVER PC MOUNT Hammond PN 149C : UPC [… |
Hammond Mfg.
Series 149 |
Factory Lead Time: 20
|
1 - 1$19.90 2 - 4$19.60 5 - 9$19.30 ... |
|
|
149F
Enclosures
RoHS Compliant
Audio transformer, open frame PC board mount, Driver, 450:40/160 ohms AUDIO TX DRIVER PC MOUNT Hammond PN 149F : UPC… |
Hammond Mfg.
Series 149 |
Factory Lead Time: 20
|
1 - 1$19.90 2 - 4$19.60 5 - 9$19.30 ... |
|
|
149G
Enclosures
RoHS Compliant
Audio transformer, open frame PC board mount, Driver, 600:150/600 ohms AUDIO TX DRIVER PC MOUNT Hammond PN 149G : UPC… |
Hammond Mfg.
Series 149 |
Factory Lead Time: 20
|
1 - 1$19.90 2 - 4$19.60 5 - 9$19.30 ... |
|
|
149H
Enclosures
RoHS Compliant
Audio transformer, open frame PC board mount, Driver, 1000:60/240 ohms AUDIO TX DRIVER PC MOUNT Hammond PN 149H : UPC… |
Hammond Mfg.
Series 149 |
Factory Lead Time: 20
|
1 - 1$19.90 2 - 4$19.60 5 - 9$19.30 ... |
|
|
149Q
Enclosures
RoHS Compliant
Audio transformer, open frame PC board mount, Output, 200 ct:3.2 ohms AUDIO TX OUTPUT PC MOUNT Hammond PN 149Q : UPC… |
Hammond Mfg.
Series 149 |
Factory Lead Time: 20
|
1 - 1$19.90 2 - 4$19.60 5 - 9$19.30 ... |
|
|
149S
Enclosures
RoHS Compliant
Audio transformer, open frame PC board mount, Output, 600 ct:150 ct ohms AUDIO TX OUTPUT PC MOUNT Hammond PN 149S : U… |
Hammond Mfg.
Series 149 |
Factory Lead Time: 20
|
1 - 1$19.90 2 - 4$19.60 5 - 9$19.30 ... |
|
|
149T
Enclosures
RoHS Compliant
Audio transformer, open frame PC board mount, Output, 600 ct:600 ct ohms AUDIO TX OUTPUT PC MOUNT Hammond PN 149T : U… |
Hammond Mfg.
Series 149 |
Factory Lead Time: 20
|
1 - 1$19.90 2 - 4$19.60 5 - 9$19.30 ... |
|
|
149V
Enclosures
RoHS Compliant
Audio transformer, open frame PC board mount, Hybrid, 600 ct:300/1200 ohms AUDIO TX HYBRID PC MOUNT Hammond PN 149V :… |
Hammond Mfg.
Series 149 |
Total Stock: 1
Factory Lead Time: 20
|
1 - 1$19.90 2 - 4$19.60 5 - 9$19.30 ... |
|
|
149U
Enclosures
RoHS Compliant
Audio transformer, open frame PC board mount, Output, 150/600:8 ohms AUDIO TX OUTPUT PC MOUNT Hammond PN 149U : UPC [… |
Hammond Mfg.
Series 149 |
Factory Lead Time: 20
|
1 - 1$19.90 2 - 4$19.60 5 - 9$19.30 ... |
