Type 12 Mild Steel Pushbutton Enclosures 1489 Series Hinged Cover
Application:

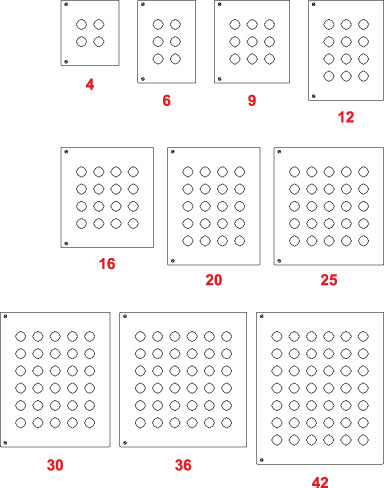

Designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights.
Provides protection from dirt, dust, oil and water.
Standards:
UL 508A Type 12
CSA Type 12
Complies with
NEMA Type 12
IEC 60529, IP54
Appropriate components are required to maintain these standards.

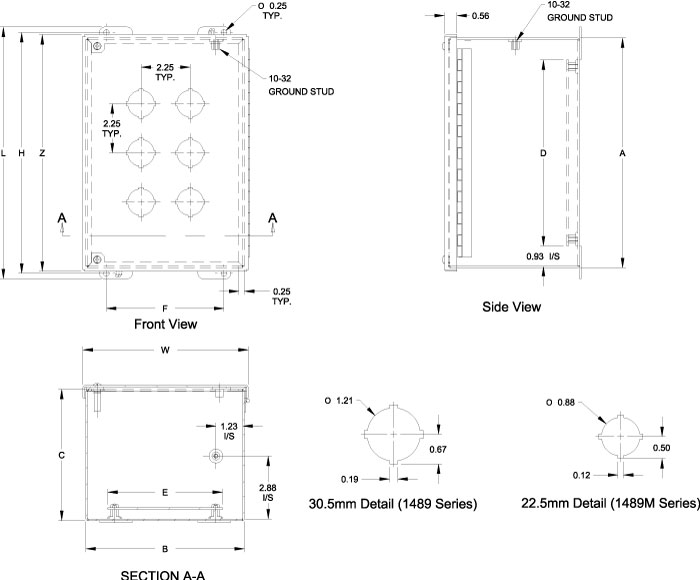

Construction:
Formed 14 gauge steel.
Smooth continuously welded seams.
Welded brackets provide for enclosure mounting.
Continuously hinged cover is secured with captive, plated steel screws which fasten into threaded sealed wells.
Oil resistant gasket and adhesive.
Weldnuts are provided for mounting inner panels.
A removable 14 gauge inner panel is included.
A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
Finish:
Cover and enclosure are phosphat
Displaying 1 - 10 of 20
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
1489P30
Enclosures
 RoHS Compliant
N12 Hinged PB Encl - 30 PB x 30.5mm - Steel/Gray N12 HNGD P/B BOX 15.00X14.00 Hammond PN 1489P30 : UPC [623980471204]… |
Hammond Mfg.
Series 1489 |
Total Stock: 5
Drop Ship Quantity: 5
Factory Lead Time: 55
|
1 - 1$360.90 2 - 2$355.10 3 - 9$350.40 ... |
|
|
1489P42
Enclosures
RoHS Compliant
N12 Hinged PB Encl - 42 PB x 30.5mm - Steel/Gray N12 HNGD P/B BOX 19.50X16.25 Hammond PN 1489P42 : UPC [623980471402]… |
Hammond Mfg.
Series 1489 |
Total Stock: 1
Drop Ship Quantity: 1
Factory Lead Time: 55
|
1 - 1$439.40 2 - 2$432.40 3 - 9$426.70 ... |
|
|
1489MP12
Enclosures
RoHS Compliant
N12 Hinged PB Encl - 12 PB x 22.5mm - Steel/Gray 12PB 22MM 12.8X9.5X6 (12.75 x 9.5 x 6) Hammond PN 1489MP12 : UPC [62… |
Hammond Mfg.
Series 1489 |
Factory Lead Time: 55
|
1 - 1$224.70 2 - 2$221.00 3 - 4$217.50 ... |
|
|
1489MP16
Enclosures
RoHS Compliant
N12 Hinged PB Encl - 16 PB x 22.5mm - Steel/Gray 16 PB 22MM 12.8X11.8X6 (12.75 x 11.75 x 6) Hammond PN 1489MP16 : UPC… |
Hammond Mfg.
Series 1489 |
Factory Lead Time: 55
|
1 - 1$256.50 2 - 2$252.30 3 - 4$248.30 ... |
|
|
1489MP20
Enclosures
RoHS Compliant
N12 Hinged PB Encl - 20 PB x 22.5mm - Steel/Gray 20 PB 22MM 15X11.8X6 (15 x 11.8 x 6) Hammond PN 1489MP20 : UPC [6239… |
Hammond Mfg.
Series 1489 |
Factory Lead Time: 55
|
1 - 1$281.60 2 - 3$277.10 4 - 9$273.50 ... |
|
|
1489MP25
Enclosures
RoHS Compliant
N12 Hinged PB Encl - 25 PB x 22.5mm - Steel/Gray 25PB 22MM 15X14X6 (15 x 14 x 6) Hammond PN 1489MP25 : UPC [623980099… |
Hammond Mfg.
Series 1489 |
Factory Lead Time: 55
|
1 - 1$315.60 2 - 3$310.60 4 - 9$306.50 ... |
|
|
1489MP30
Enclosures
RoHS Compliant
N12 Hinged PB Encl - 30 PB x 22.5mm - Steel/Gray 30 PB 22MM 17.3X14X6 (17.25 x 14 x 6) Hammond PN 1489MP30 : UPC [623… |
Hammond Mfg.
Series 1489 |
Factory Lead Time: 55
|
1 - 1$350.90 2 - 2$345.30 3 - 9$340.70 ... |
|
|
1489MP36
Enclosures
RoHS Compliant
N12 Hinged PB Encl - 36 PB x 22.5mm - Steel/Gray 36PB 22MM 17.3X16.3X6 (17.25 x 16.25 x 6) Hammond PN 1489MP36 : UPC… |
Hammond Mfg.
Series 1489 |
Factory Lead Time: 55
|
1 - 1$388.80 2 - 2$382.60 3 - 9$377.60 ... |
|
|
1489MP4
Enclosures
RoHS Compliant
N12 Hinged PB Encl - 4 PB x 22.5mm - Steel/Gray 4 PB 22MM 8.3X7.3X6 (8.25 x 7.25 x 6) Hammond PN 1489MP4 : UPC [62398… |
Hammond Mfg.
Series 1489 |
Factory Lead Time: 55
|
1 - 1$151.40 2 - 3$146.50 4 - 9$144.10 ... |
|
|
1489MP42
Enclosures
RoHS Compliant
N12 Hinged PB Encl - 42 PB x 22.5mm - Steel/Gray 42 PB 22MM 19.5X16.3X6 (19.5 x 16.3 x 6) Hammond PN 1489MP42 : UPC [… |
Hammond Mfg.
Series 1489 |
Factory Lead Time: 55
|
1 - 1$424.80 2 - 2$418.00 3 - 9$412.50 ... |
