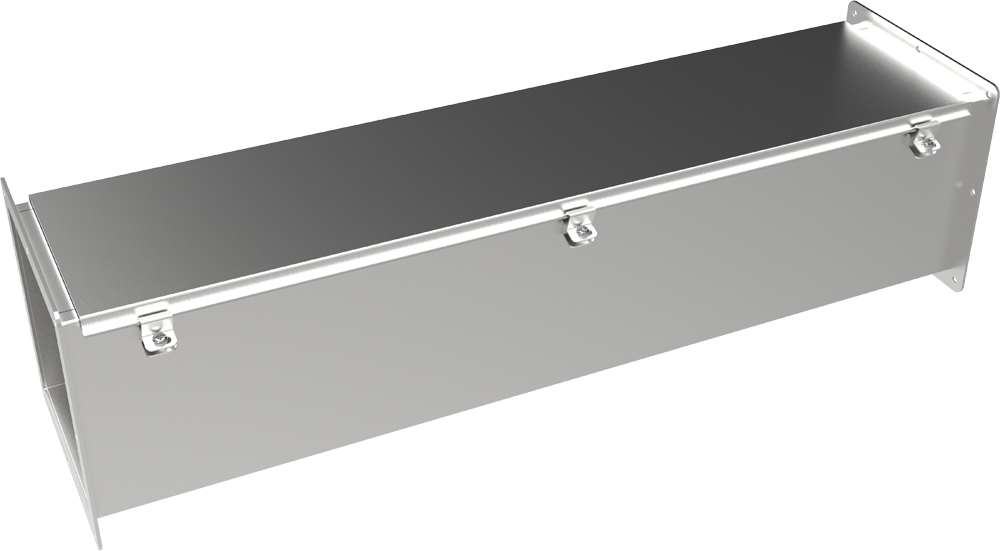

Type 4X Pull Through Wireway 1487SS Series Wireway & Accessories
Application:
Designed to enclose and protect electrical wiring from dirt, dust, oil and water.
Ideal for connecting machines to control panels or power sources.
Standards:
UL 870 Type 1 (unless marked¹)
CSA Type 1 (unless marked¹)
Complies with
NEMA Type 4, 4X and 12
IEC 60529, IP66
Construction:
Bodies and covers are formed from 14 gauge 304 stainless steel with 10 gauge flanges.
Smooth continuously welded seams.
Interior surfaces are smooth to prevent wire damage during installation.
Butt hinged covers are secured with easily operated screw clamps.
Oil resistant gaskets are permanently secured.
Solid oil resistant gaskets are used between flanges when sections and fittings are bolted together.
One gasket kit, complete with hardware is provided with each straight section or fitting.
Finish:
Sections and fittings are natural stainless steel with a smooth brushed finish.
Displaying 1 - 3 of 3
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
1487DSSS
Enclosures
 RoHS Compliant
N4X Wireway, Hardware Kit - Fits 6 x 6 - 304SS N4X WIREWAY 6X6 HARDWARE KIT Hammond PN 1487DSSS : UPC [623980058818]… |
Hammond Mfg.
Series 1487SS |
Total Stock: 82
Drop Ship Quantity: 80
Factory Lead Time: 30
|
1 - 1$21.20 2 - 3$20.90 4 - 9$20.50 ... |
|
|
1487ESSS
Enclosures
RoHS Compliant
N4X Wireway, Hardware Kit - 8 x 8 - 304SS NEMA 4X WIREWAY8X8 HARDWAREKIT Hammond PN 1487ESSS : UPC [623980462103] … |
Hammond Mfg.
Series 1487SS |
Total Stock: 45
Drop Ship Quantity: 45
Factory Lead Time: 30
|
1 - 1$23.20 2 - 3$22.80 4 - 9$22.40 ... |
|
|
1487CSSS
Enclosures
RoHS Compliant
N4X Wireway, Hardware Kit - Fits 4 x 4 - 304SS N4X WIREWAY 4X4 HARDWARE KIT Hammond PN 1487CSSS : UPC [623980058610]… |
Hammond Mfg.
Series 1487SS |
Factory Lead Time: 30
|
1 - 2$15.90 3 - 9$15.60 10 - 14$15.40 ... |
