1471

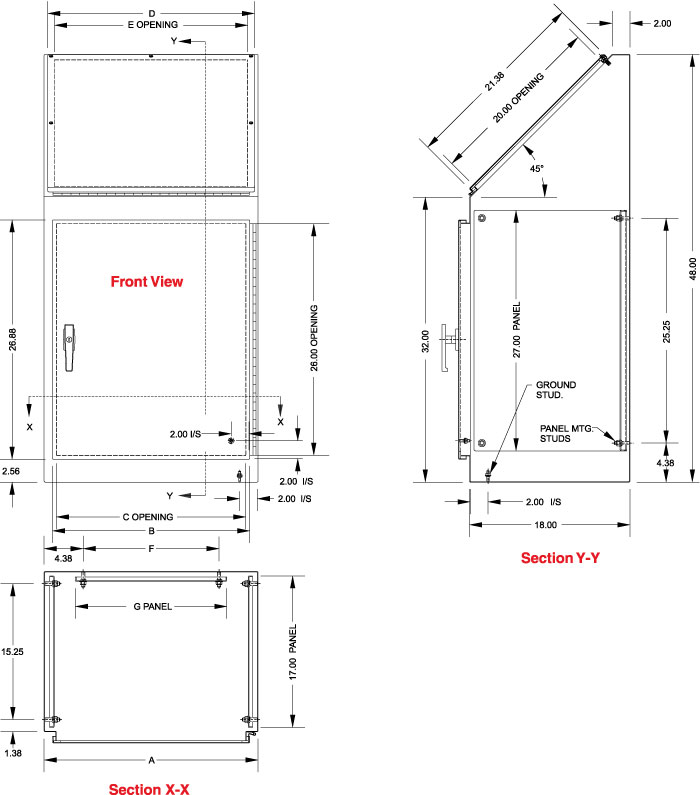

Type 12 Console Cabinet 1471 Series Sloped Front, Continuous Hinged Cover

Application:
Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
Heavy-duty construction provides protection from dirt, dust, oil and water.
Sloping front control panel provides an ideal surface for mounting operator controls or instrumentation.
Interior mounting provision on removable inner panels located on the rear and sides of the enclosure.

Standards:
UL 508A Type 12
CSA Type 12
Complies with
NEMA Type 12
IEC 60529, IP54

Construction:
Formed 14 gauge steel.
Smooth, continuously welded seams, without knockouts, cutouts or holes.
Sloped front instrument panel is continuously hinged on the front (bottom) edge and secured with captive panel screws, threaded into sealed wells.
Continuously hinged door and front instrument panel may be removed by pulling the hinge pin.
Doors are secured with a three point latch and operated with a key locking automotive type handle.
Oil resistant gaskets are permanently secured.
Includes three removable inner panels formed from 12 gauge steel, mounted to the back and sides of the enclosure interior.
Collar studs are provided for mounting inner panels.
A bonding stud is provided on the door and a grounding stud is provided in the enclosure for each door.
A literature pocket is provided for the inside of the door.

Finish:
Cover and enclosure are phosphat
