Filters1455ZT

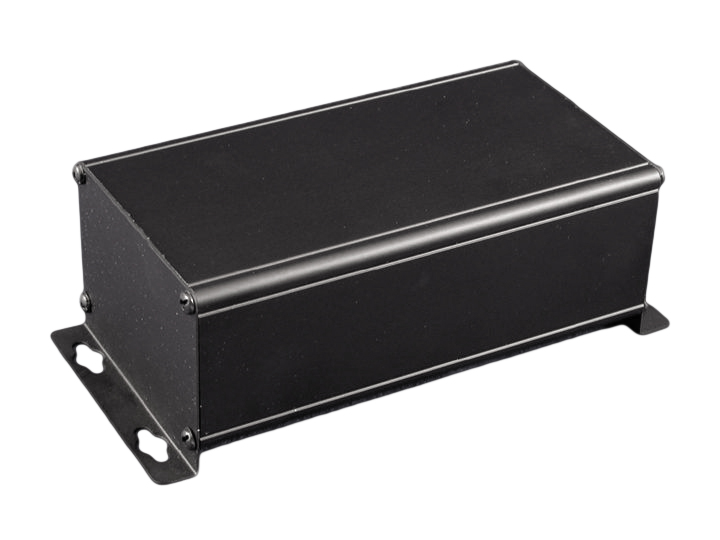

Wallmount Extruded Aluminum Enclosures 1455ZT Series
Key Features:
Designed to house electronics for equipment interfacing where shelf or wall mounting is required.

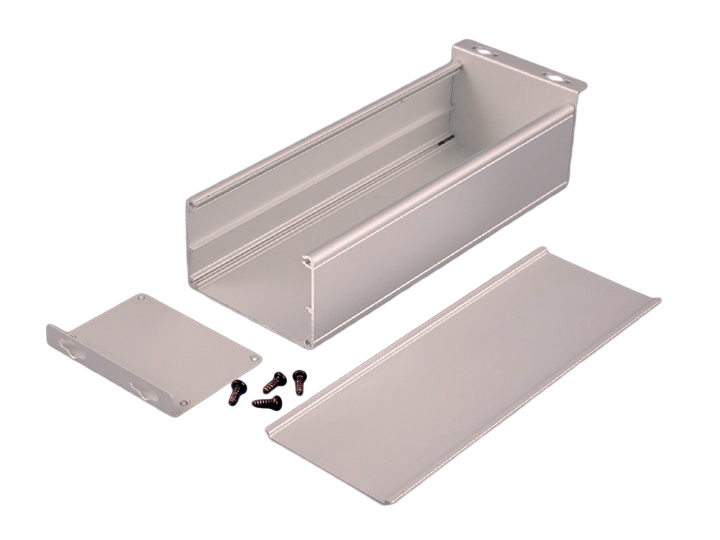

Consists of an aluminum "U" shaped extrusion body and a slide-in flat aluminum bottom plate.
Slide-in plate perfect for easy mounting of components.
Steel foot "L" brackets are attached to each end. "L" brackets are punched with 0.31" (7.9 mm) diameter keyholes for easy mounting of enclosure.
Rugged body constructed from extruded aluminum with a minimum thickness of .06” (1.5 mm).
Available in either clear or black anodized finish, the bottom slide-in plate is finished to match.
The two end "L" brackets are matched to the enclosure.
Includes all assembly hardware.
NOTE: Recommended screw torque is 5 lbf/in
Displaying 1 - 4 of 4
| Title | Manufacturer | Availability | prices | Variations |
|---|---|---|---|---|
|
1455ZT1601
Box Metal
 RoHS Compliant
wallmount extruded aluminum enclosures 160 X 89 X 56MM EXTRUDED ENC. (6.3 x 3.5 x 2.2) Hammond PN 1455ZT1601 : UPC [6… |
Hammond Mfg.
Series 1455ZT |
Factory Lead Time: 20
|
1 - 1$18.10 2 - 4$17.80 5 - 9$17.50 ... |
|
|
1455ZT1601BK
Box Metal
RoHS Compliant
black wallmount extruded aluminum enclosures 160 X 90 X 56MM EXTRUDED BOXBK (6.3 x 3.5 x 2.2) Hammond PN 1455ZT1601BK… |
Hammond Mfg.
Series 1455ZT |
Total Stock: 2
Factory Lead Time: 20
|
1 - 1$20.30 2 - 4$20.00 5 - 9$19.70 ... |
|
|
1455ZT2201
Box Metal
RoHS Compliant
wallmount extruded aluminum enclosures 220 X 90 X 56MM EXTRUDED ENCL (8.66 x 3.5 x 2.2) Hammond PN 1455ZT2201 : UPC [… |
Hammond Mfg.
Series 1455ZT |
Total Stock: 1
Factory Lead Time: 20
|
1 - 1$21.20 2 - 3$20.80 4 - 9$20.50 ... |
|
|
1455ZT2201BK
Box Metal
RoHS Compliant
black wallmount extruded aluminum enclosures 220 X 90 X 56MM EXTRUDED BOX (8.66 x 3.5 x 2.2) Hammond PN 1455ZT2201BK… |
Hammond Mfg.
Series 1455ZT |
Total Stock: 5
Factory Lead Time: 20
|
1 - 1$23.10 2 - 3$22.70 4 - 9$22.30 ... |
1455ZT
